28
Notch
Projections
5
Coin selsctor
Slide in this
direction
Lever
Maintenance door
3

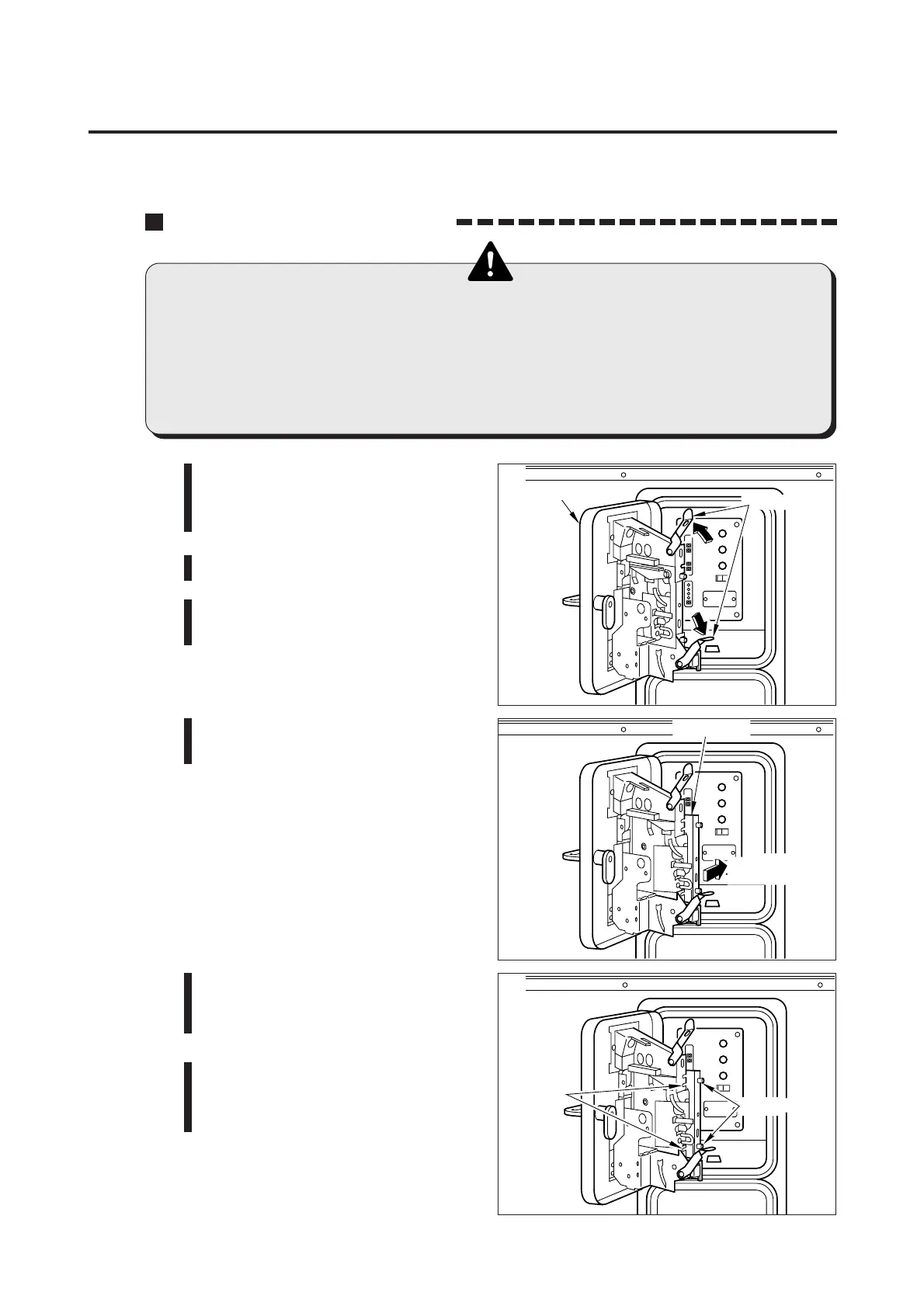

7-1 Replacing the coin selector
How to replace the coin selector
•Before replacing the coin selector, be sure to turn OFF the main power
switch and unplug the power cord from the receptacle.
•When replacing parts, be sure to use parts of the correct specifications.
Never use parts other than the specified ones.
•Never disassemble, repair or modify any section other than those
specified in this manual.
1 Be sure to turn OFF the main power
switch and unplug the power cord
from the receptacle.
2 Open the maintenance door.
3 Release the levers that fix the coin
selector. See at right.
7 Maintenance
4 Slide the coin selector to the right,
and take it out.
5
To reattach the coin selector
Fit the 2 projections of the coin
selector to their mating notches.
6 Lock the levers (in Step 3 above)
again, and close the maintenance
door.
To Next Page
