24
Demagnetizing
button
Test button
Service button
Monitor
adjustment
PCB
Sub-power
switch
Service panel
Coin counter
compartment
(See page 34)

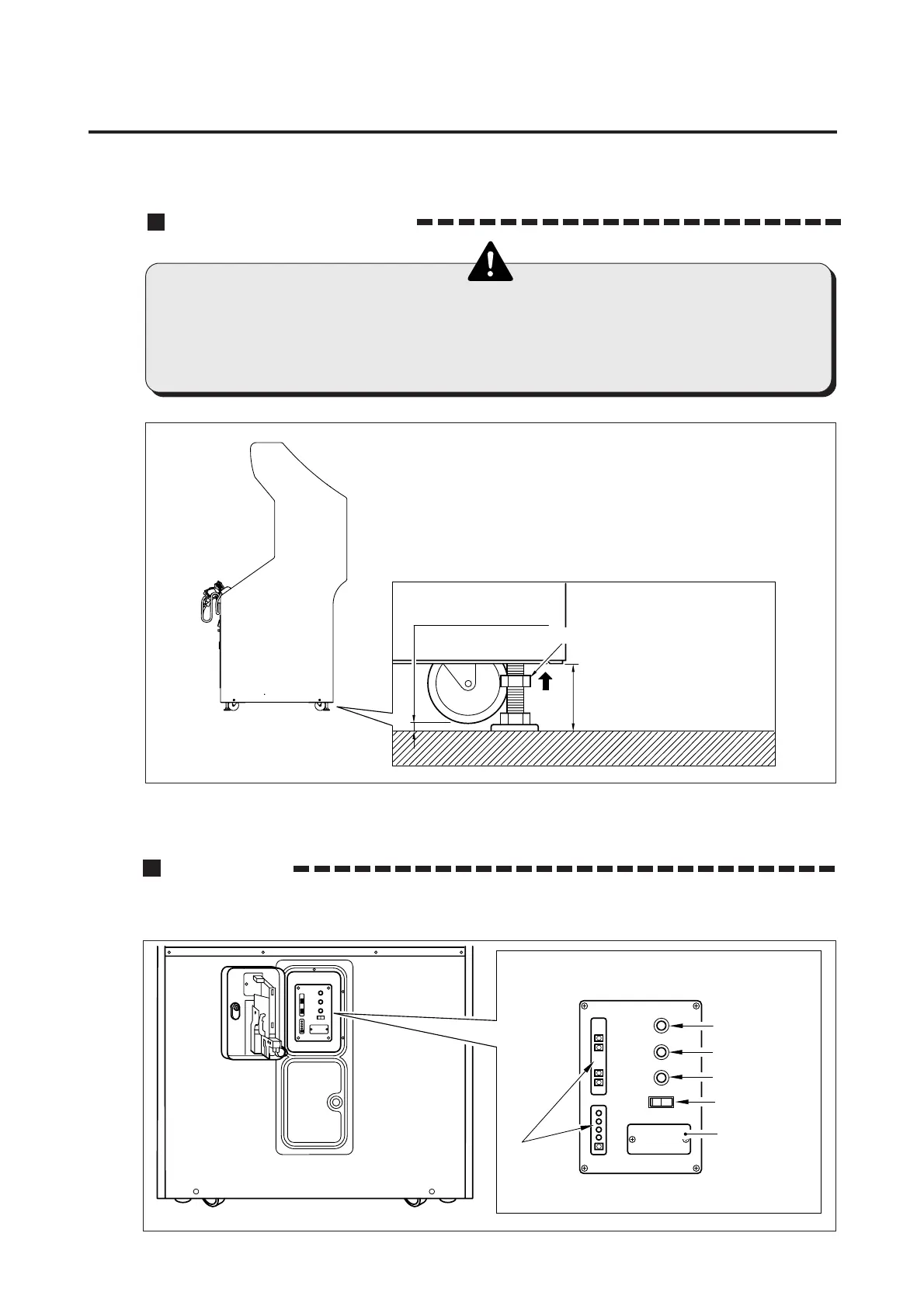

6 Setting up the game machine
How to fasten the adjusters
•Adjust the adjusters so that the casters do not touch the floor.
Take care not to exceed the maximum adjusting height of the adjuster.
•Lower the 4 adjusters onto the floor. Make sure that the machine is stable
and in a horizontal position. Tighten up the hexagon nuts upward.
6-1 Fastening the adjusters
Service panel
6-2 Service panel
Using the accompaying maintenance key, open and detach the maintenance door
to access the service panel inside.
(2.64in)
Hexagon nut
Maximum adjusting height:67mm
(Min.62mm)
(Min.2.44in)
Keep the casters about
5mm(0.2in) of the floor.
To Next Page
