Lamp/Horn
Aux. contactor
From CU1:8
Control voltage

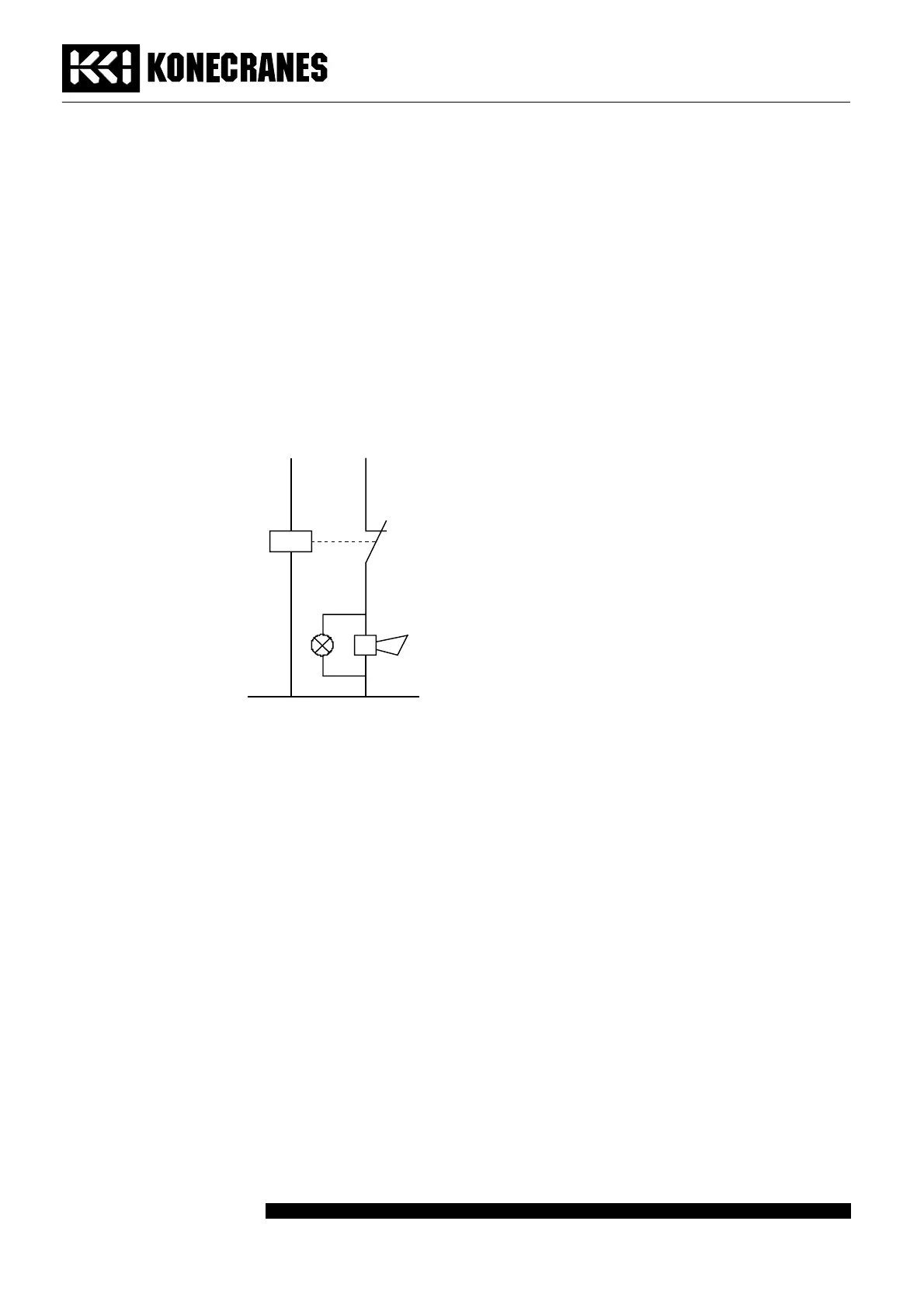

Connection of remote indicator circuit with Options 5 and 6
Function of remote indicator circuit CU1:7-8 (alarm is given while CU1:7-8 is OPEN):
Alarm sequences:
1) continuously OPEN
2) 1sec OPEN, 20sec CLOSED, ...
3) 3sec OPEN, 3sec CLOSED, 1sec OPEN, 20sec CLOSED,...
4) 3sec OPEN, 3sec CLOSED, 3sec OPEN, 3sec CLOSED, 1sec OPEN, 20sec CLOSED,...
