Kongsberg Simrad AP20 - Non-Follow-Up steering (NFU)

Operation
20220505H 17
angle is shown on the display and the rudder will move to the
commanded angle and stop.
Actual rudder angle
Use course knob to
command rudder angle
WARNING:
While in Follow-Up mode,
you cannot take manual
control of the wheel.
Return to manual control
in STBY by pressing:
Press both buttons
simultaneously to
activate Follow-Up
P
S
P S
RUDDER
RFC
HEADING
o
02
P
S
STBY
PWR

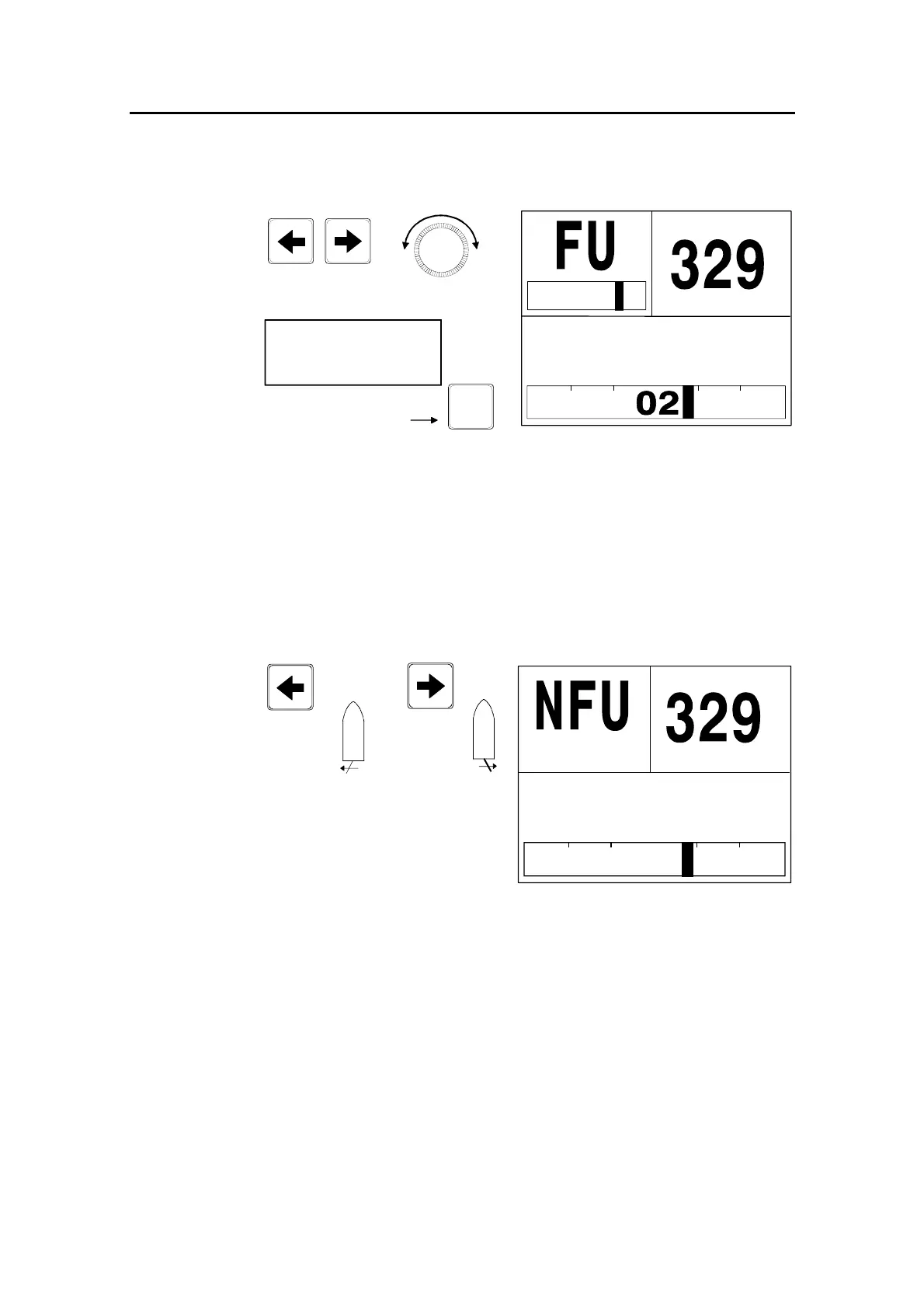

2.5 Non-Follow-Up steering (NFU)
When PORT or STBD push button is pressed in STBY mode the
NFU display is presented. The rudder will move as long as the
button is pressed and the actual rudder angle is shown on the
display.
Activates
PORT
Rudder
command
Activates
STBD
Rudder
command
Actual rudder angle
P S
RUDDER
RFC
HEADING
o
02
