Simrad AP20 Autopilot
46 20220505H
Gyro compass input:.................. Synchro 1:1 (RGC10/RGC50 gyrocompasses)
Heading or windvane input: ...... Sin/cos max 12V DC
NFU steering lever input: .......... Port/stbd potential free contact
Robnet network interface: ......... 2 network connectors
Cable inlets: ............................... Rubber glands for cable diam. 10-14 mm
Mounting: .................................. Bulkhead mount
Material:..................................... Epoxy coated aluminium
Environmental Protection:......... IP44
Temperature range:
Operation: ......................... 0 to +55 °C (+32 to +130 °F)
Storage: ............................. –30 to +80 °C (–22 to +176 °F)

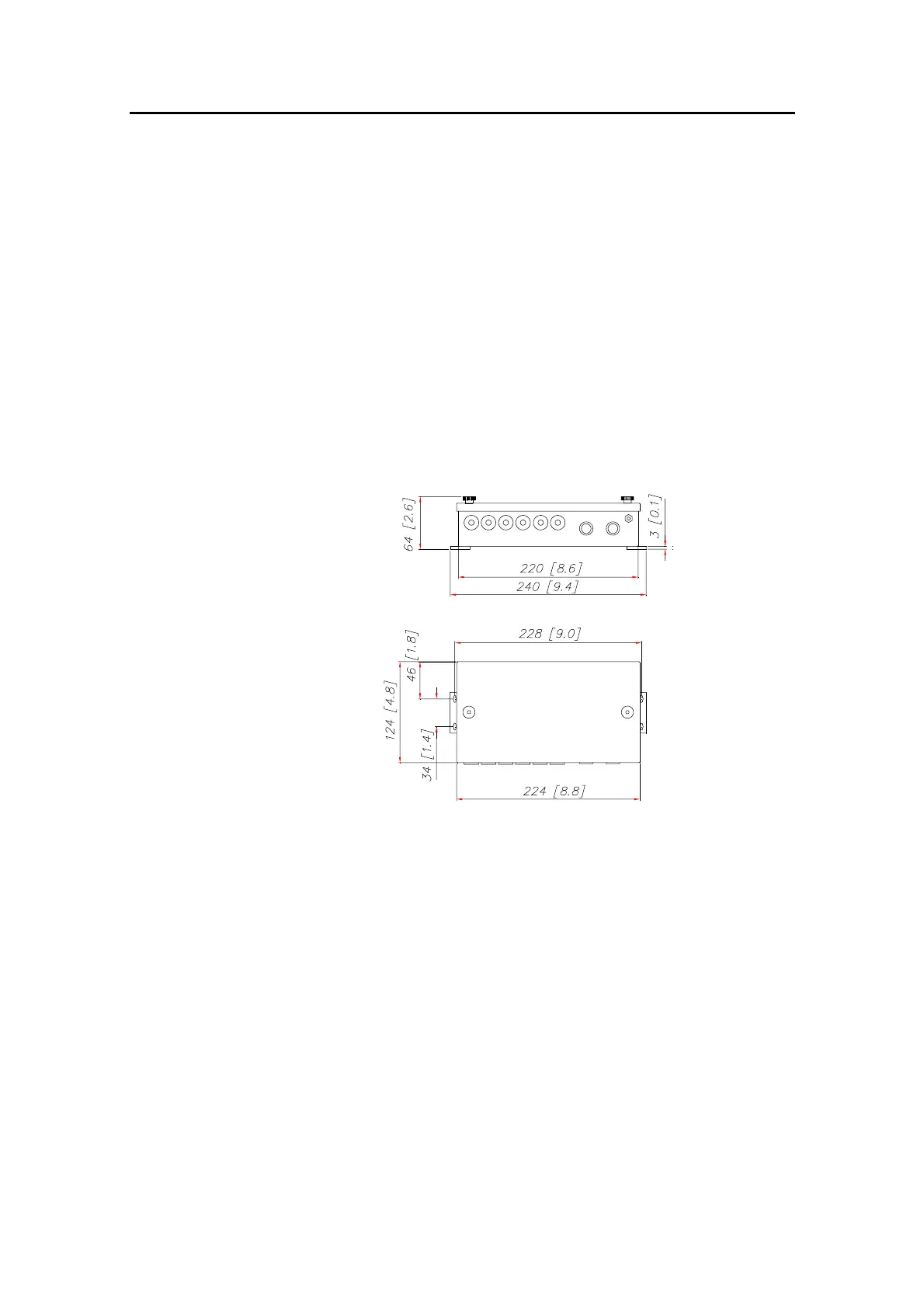

Figure 3-8 CI300X and NI300X - Dimensions
3.9 NI300X NMEA Interface
Dimensions:............................... See Figure 3-8
Weight: ...................................... 0,9 kg (2,0 lbs)
Power consumption: .................. 3 W
NMEA183 input/output:............ 4 ports, max output load 20 mA
Heading output: ......................... Anritsu and Furuno radar display (clock/data)
NMEA instrument supply: ........ 12V DC, max 0.25A
Robnet network interface: ......... 2 network connectors
Cable inlets: ............................... Rubber glands for cable diam 10-14 mm
Mounting: .................................. Bulkhead mount
