Simrad AP20 Autopilot
42 20220505H
3.4 RFC35 Fluxgate compass
Dimensions:............................... See Figure 3-4
Weight: ...................................... 0,9 kg (2,0 lbs)
Supply and output:..................... Polarity independent 2-wire supply with
superimposed pulse width modulation
Automatic Performance:
Calibration: ....................... Automatically activated by control head
Gain compensation: .......... Automatically adjusted continuously
Repeatability:............................. ± 0.5 degrees
Roll/Pitch:.................................. ± 35 degrees
Accuracy:................................... ± 3 degrees after calibration
Cable supplied: .......................... 15 m TP shielded cable
Temperature range:
Operation: ......................... 0 to +55 °C (+32 to + 130 °F)
Storage: ............................. –30 to +80 °C (–22 to +176 °F)
Environmental Protection:......... IP56
Mounting: .................................. Deck or bulkhead
Material:..................................... Black ABS

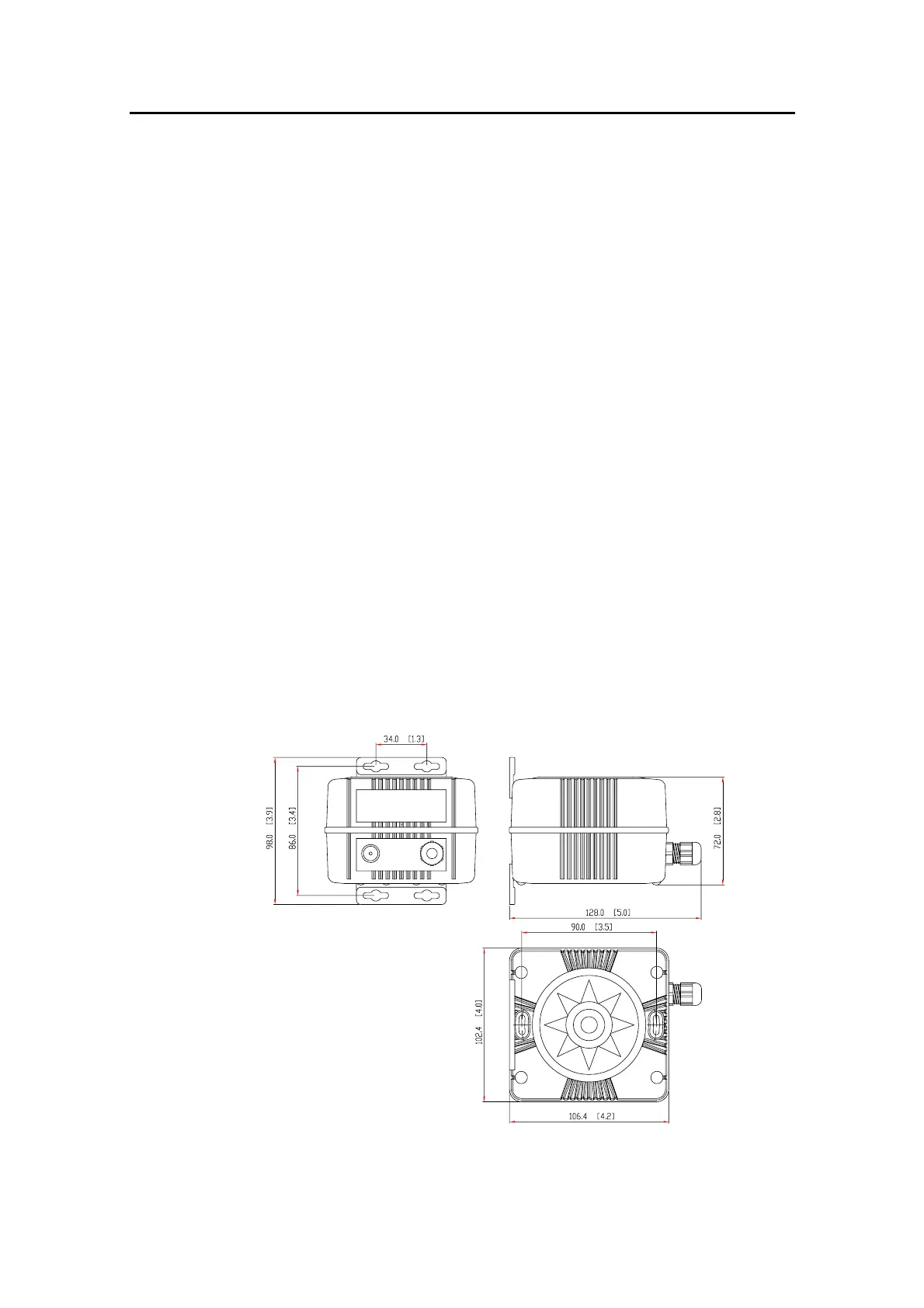

Figure 3-4 RFC35 Fluxgate Compass - Dimensions
