4.15 R3000X Remote Control installation
R3000X should be mounted in the supplied bracket that can be
fixed by four mounting screws. The unit is weather proof and
can be mounted outdoor.
TB6
JUNCTION UNIT
TB3 TB4
TB5
TB7
Stbd
Port
Gnd
Gn
Red Blu
REMOTE
TB8
TB1
TB2
R3000X
REMOTE CONTROL
Lamp
Yel
POWER PCB

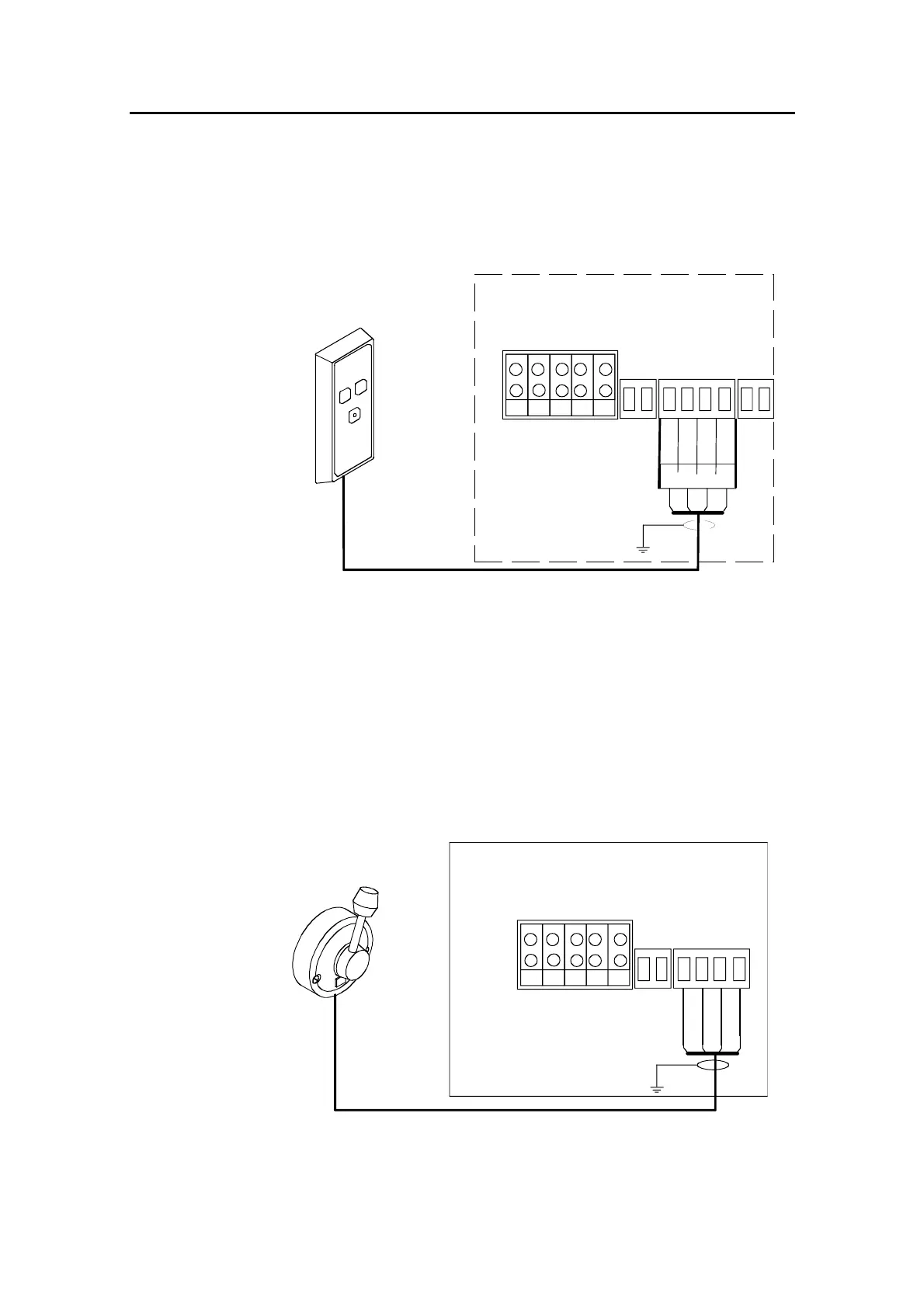

Figure 4-15 R3000X connection
4.16 S35 NFU Lever installation
The unit is mounted to bulkhead or panel by two screws from the
front. The cable is connected to the junction unit according to
Figure 4-16. Interchange the port and stbd wires to the screw
terminals in the junction unit if necessary to make the direction
of the lever movement coincide with the direction of the rudder
movement.
TB6
J3000X/J300X JUNCTION UNIT
POWER PCB
TB3
TB4
TB5
TB7
S35
STEERING LEVER
TB1 TB2
Lamp
Stbd
Port
Gnd
Brn/Wh
Pnk/Gry
Yel
Grn
NOTE!
Disregard the color code
on the terminal label.
REMOTE
Figure 4-16 S35 connection
