Installation
20220505H 65
On-Off
Vsys+
JUNCTION UNIT
MAIN PCB
ROBNET
Bus+
Vsys
Alarm
Wh
Bn Gn
Bus
Pnk Gry
Yel
AP20
CONTROL UNIT

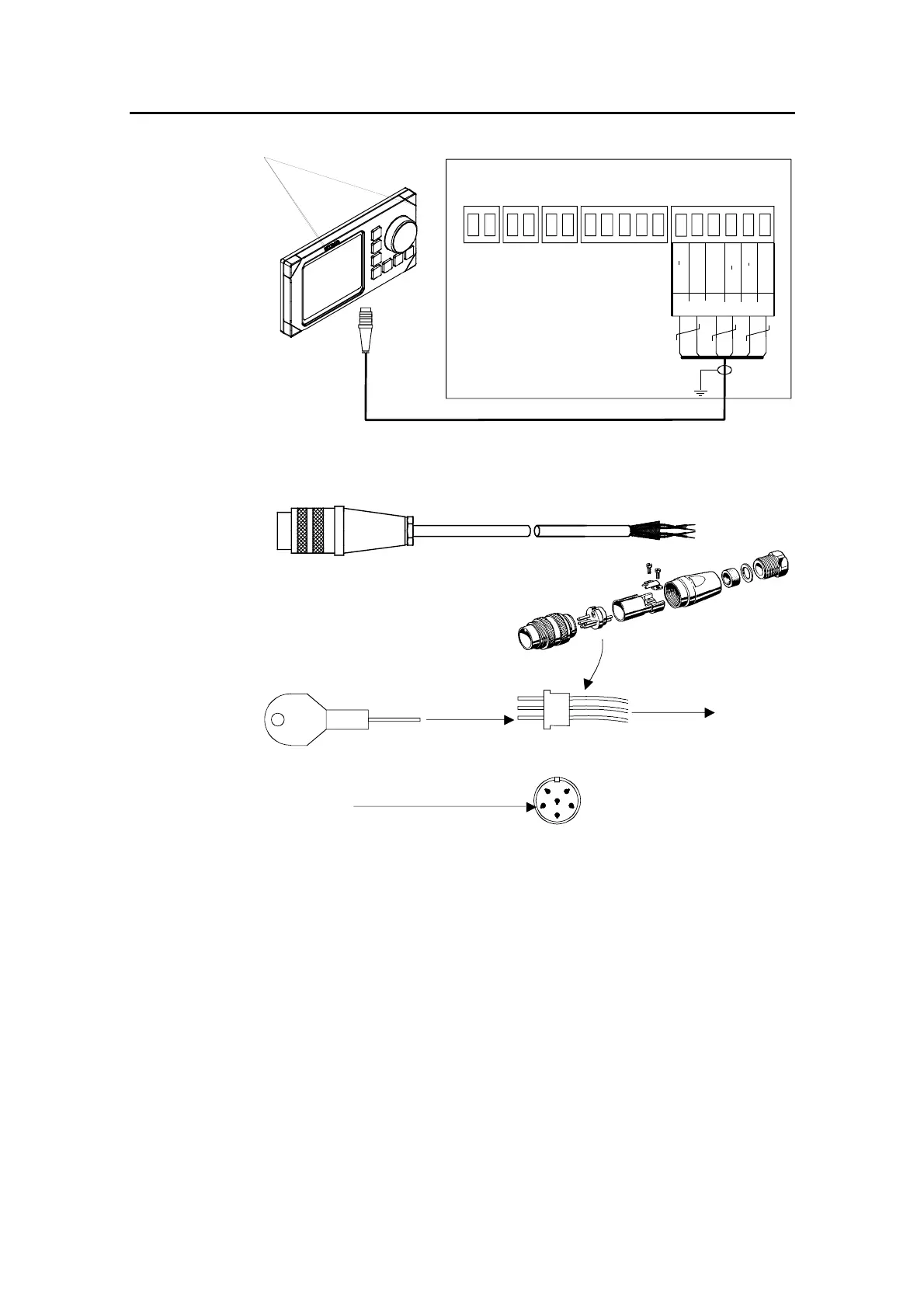

Figure 4-10 Control unit connection
HOW TO REMOVE PINS:
Extraction tool
Pull the wire
Insert tool in slot
Note ! For installations that require special cable length, contact your
Simrad distributor for information.
AP21 connection
If a Simrad AP21 is part of the system, use the Robnet connector
in a free receptacle (see Figure 4-9). Alternatively cut the
connector from the cable and connect the wires in parallel with
the cable shown on Figure 4-10 using the same colour code.
Note ! The AP21 cable contains an air-breathing tube. Check that the
tube is open after you have cut the cable.
