Technical Specifications
20220505H 47
Material:..................................... Epoxy coated aluminium
Environmental Protection:......... IP44
Temperature range:
Operation: ......................... 0 to +55 °C (+32 to +130 °F)
Storage: ............................. –30 to +80 °C (–22 to +176 °F)
3.10 R3000X Remote Control
Dimensions: ............. See Figure 3-9
Weight:..................... 0,4 kg (0,9 lbs)
Protection ................. IP56
Cable length: ............ 7 m, shielded
Material:..........Epoxy coated aluminium

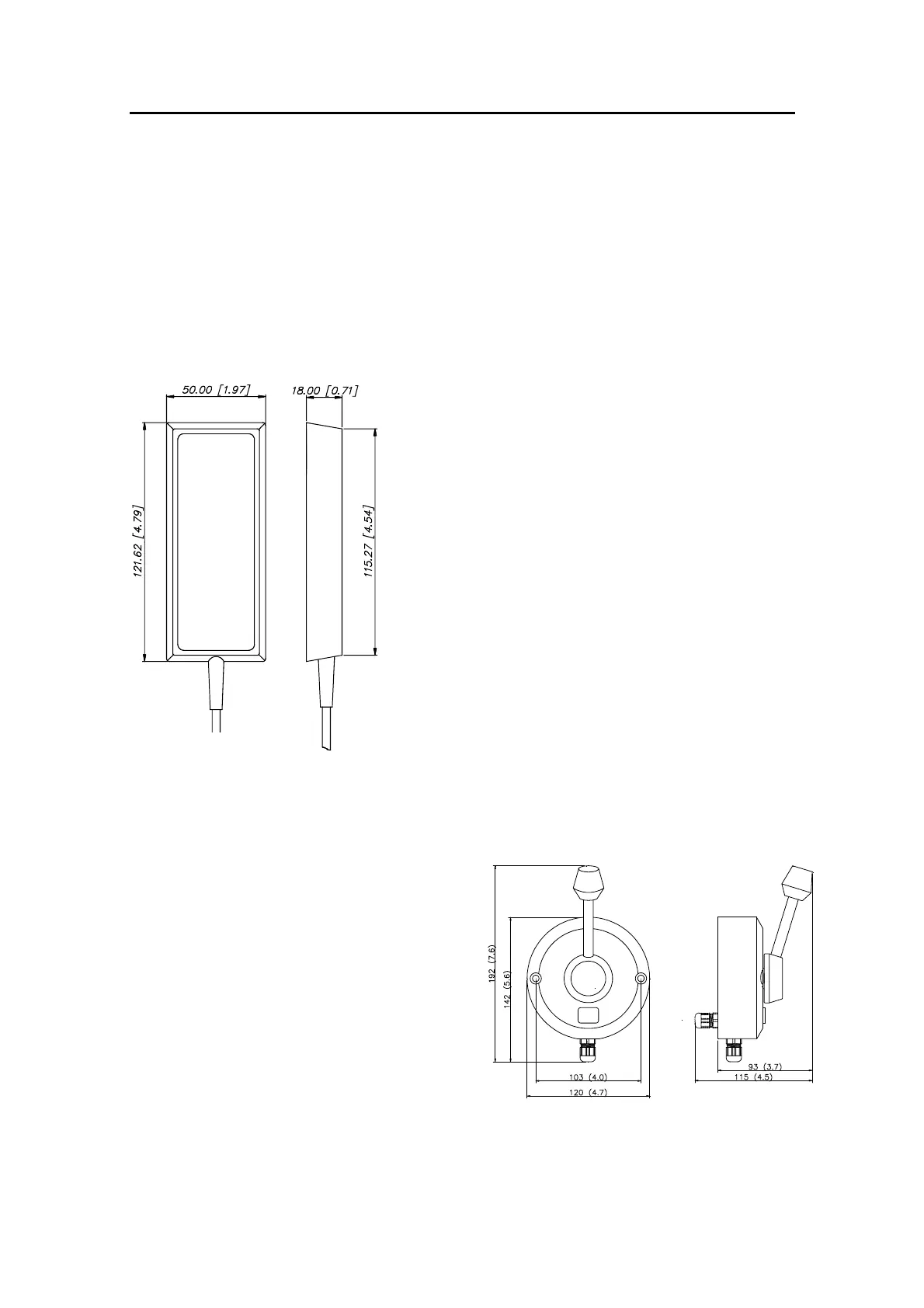

Figure 3-9 R3000X - Dimensions
3.11 S35 NFU Steering Lever
Dimensions:.................. See Figure 3-10
Weight: ......................... 1,4 kg (3,1 lbs)
incl. 10 m cable
Protection...................... IP56
Power consumption: .... 6 mA
Max. inductive load:..... 4A/12-24VDC
60mA/110VAC,
25mA/220VAC
Figure 3-10 S35 - Dimensions
