Installation
20220505H 57

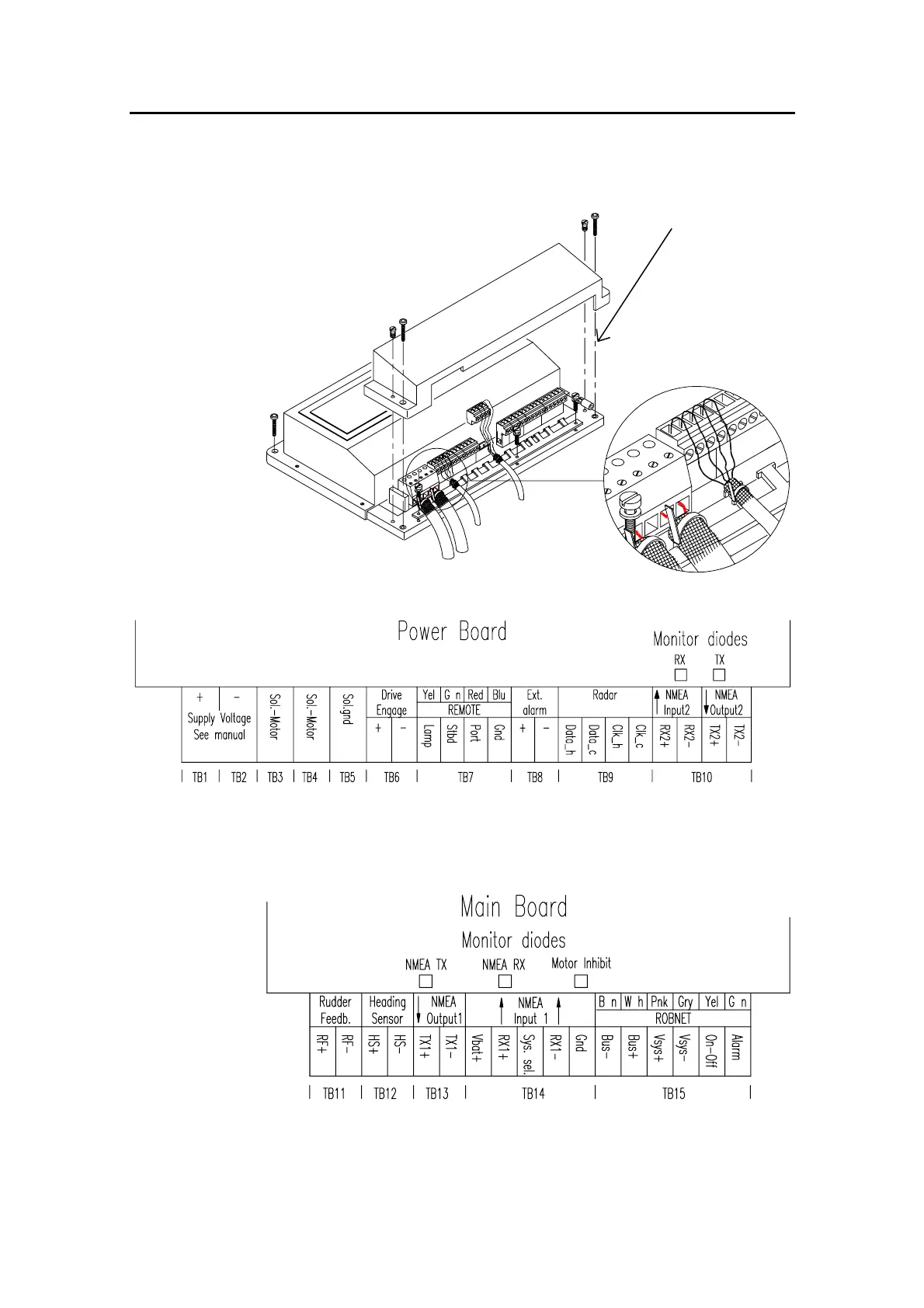

Pull out each terminal before connecting the wires. Remove all
strands before putting on the terminal cover.
Power Board terminals
Main Board terminals
Note!
The Mains input
is not polarity
protected on
J300X-40.
Ground terminal
TB9 and TB10 are not on the
J3000X Power Board
