Installation
20220505H 73

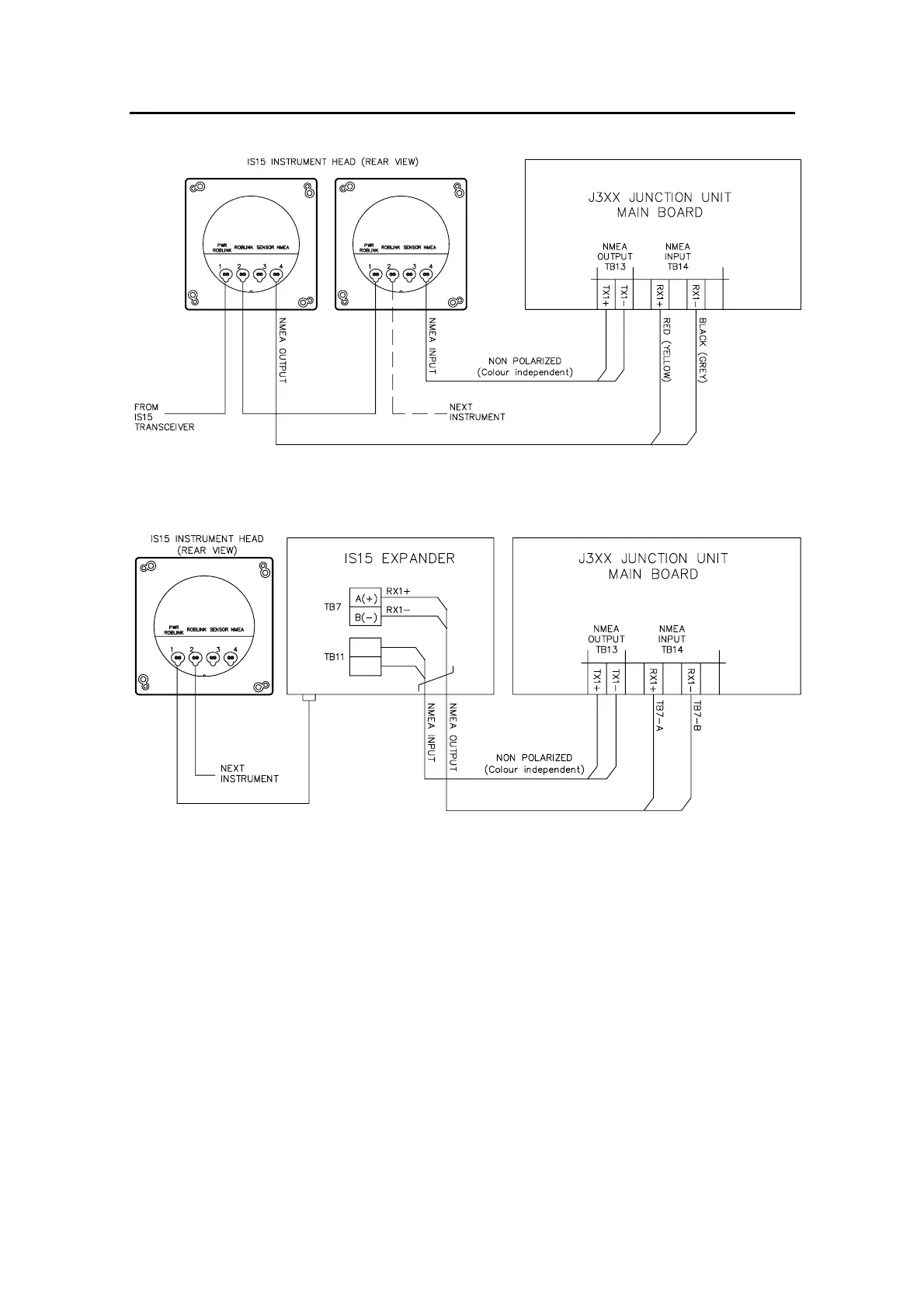

Figure 4-21 IS15 Instruments / J3XX Connection
Figure 4-22 IS15 Expander / J3XX Connection
