Korg M3 Owner's Manual

COMBI P2: EQ / Option 2–5: RADIAS T01-08, 2–6: RADIAS T09-16
51
Combination Audio In (OSC&Vocoder) Source

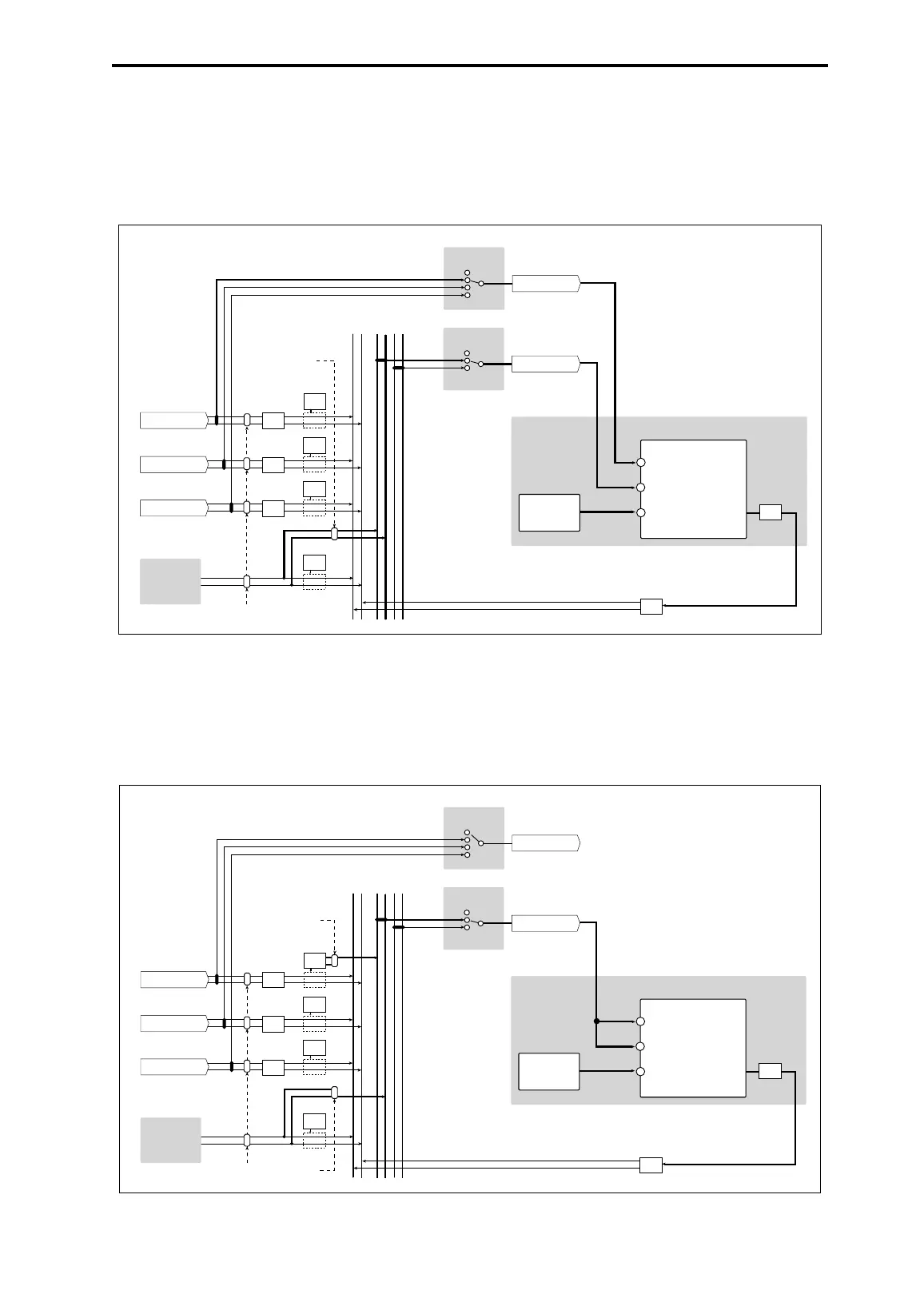

An example of using the AUX bus to input an EDS program into the RADIAS vocoder:
• The RADIAS program of timbre 1 is input to the carrier of the vocoder.
• The EDS program of timbre 2 is sent via the AUX bus to the carrier of the vocoder.
• The mic connected to the AUDIO INPUT 2 jack is sent to the modulator of the vocoder.
An example of using the AUX bus to input an EDS program and mic input to the RADIAS vocoder’s carrier and modulator:
• The RADIAS program of timbre 1 is input to the carrier of the vocoder.
• The EDS program of timbre 2 is input via AUX bus 2 (mono) to the carrier of the vocoder.
• The mic connected to the AUDIO INPUT2 jack is processed by an insert effect, and sent via AUX bus 1 (mono) to the
modulator of the vocoder.
Insert
Effects
Insert
Effects
L/R
Bus
AUX
1/2
AUX
3/4
Bus = L/R or IFX1-5
Insert
Effects
Analog Input 1/2
S/P DIF L/R
Insert
Effects
FireWire L/R
Level
Pan
Level
Pan
Level
Pan
AUX Bus = 1/2
Audio Inputs
(Send to RADIAS)
AUX Bus
(Send to RADIAS)
Vocoder = On
In Source1 Select = T01
Timbre 02
EDS Program
Audio Input Source
AUX Bus Source
RADIAS Program
Timbre 01
Analog Input 1/2
AUX 1/2
Level
Pan
EQ
Carrier In Source1
= T01
Modulator Audio Source
= Audio In2
Carrier In Source2
= AUX Send L+R
AUX1+2
Analog
Input2
Insert
Effects
L/R
Bus
AUX
1/2
AUX
3/4
Bus = L/R or IFX1-5
Insert
Effects
Analog Input 1/2
S/P DIF L/R
Insert
Effects
FireWire L/R
Level
Pan
Level
Pan
Level
Pan
AUX Bus = 1
Audio Inputs
(Send to RADIAS)
AUX Bus
(Send to RADIAS)
Vocoder = On
In Source1 Select = T01
Timbre 02
EDS Program
Audio Input Source
AUX Bus Source
RADIAS Program
Timbre 01
Off
AUX 1/2
Level
Pan
EQ
Carrier In Source1
= T01
Modulator Audio Source
= AUX Send L
Carrier In Source2
= AUX Send R
Insert
Effects
AUX Bus = 2
AUX1
AUX2
L/R
L/R

Korg M3 Specifications

General

Synthesis Type	EDS (Enhanced Definition Synthesis)
Sound Engine	EDS (Enhanced Definition Synthesis)
MIDI	In, Out, Thru
Keyboard	61-key, velocity-sensitive, aftertouch
Sequencer	16-track MIDI sequencer
Sampling	Open Sampling System
Display	TouchView graphical user interface with 320x240 color TFT LCD
Arpeggiator	2 polyphonic arpeggiators
Controllers	Joystick, Ribbon Controller
Outputs	L/MONO, R, Individual 1-4, Headphones
USB	Yes, USB MIDI
Storage	SD card slot
Combinations	1, 792 user combinations
Polyphony	120 voices (max)
Effects	5 Insert effects, 2 Master effects, 1 Total effect
