Korg PA4X User Manual

Replacing the clock backup battery |141

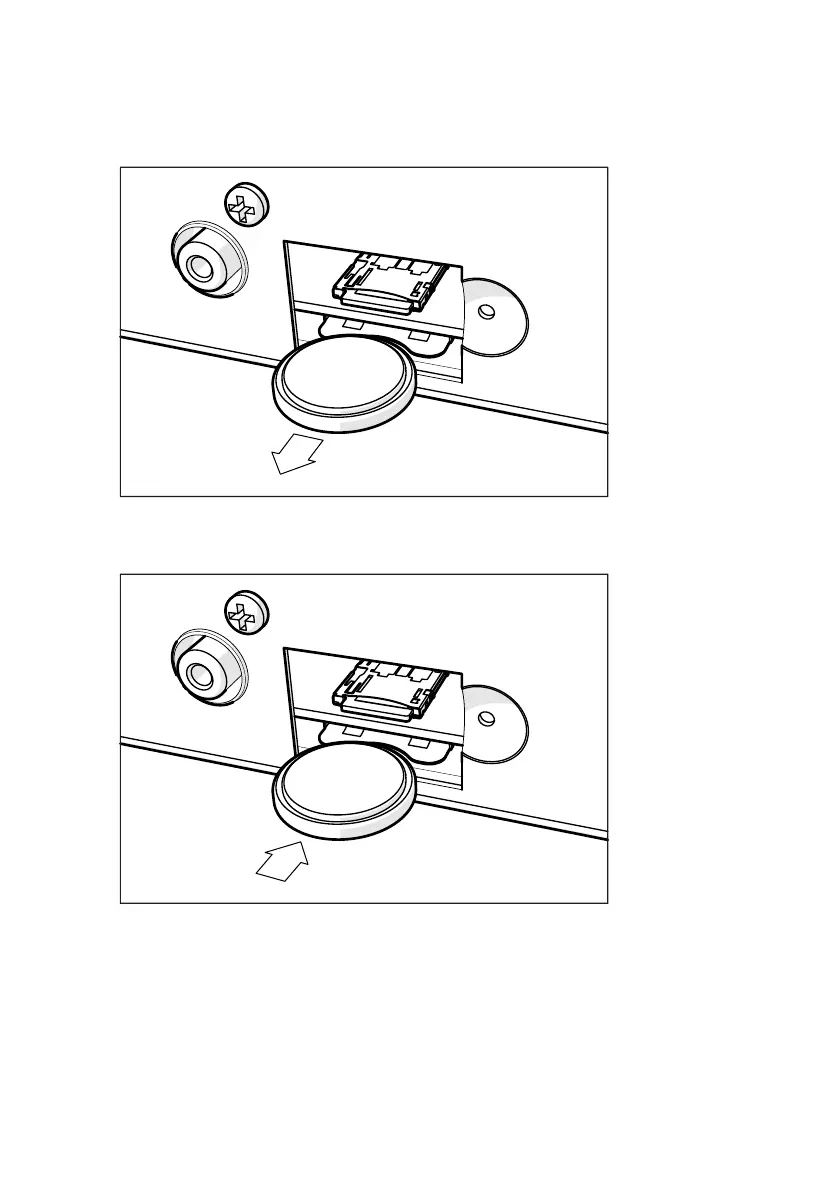

3 With the help of your fingernail, lift the exhausted battery (c) from its lower
side, and remove it from the battery slot, being very careful not to let it fall
inside the instrument.
ⓒ
4 Insert the new battery (d) into the empty battery slot, being sure the positive
(+) side is facing down. Be very careful not to let it fall inside the instrument.
ⓓ

Korg PA4X Specifications

General

Polyphony	128 voices
Type	Arranger Keyboard
USB	USB to Host, USB to Device
Keyboard	76 keys (PA4X-76) / 61 keys (PA4X-61), semi-weighted with velocity and aftertouch
Sound Engine	EDS-X (Enhanced Definition Synthesis – Expanded)
Display	7-inch TFT color touchscreen
Connectivity	MIDI In/Out/Thru, USB to Host, USB to Device
Dimensions	PA4X-61: 980 x 364.4 x 125.56 mm
Sounds	512 User Sounds
Sequencer	16-track sequencer
Audio Inputs	2 x 1/4" (line), 1 x XLR (mic)
Audio Outputs	Left/Right, Headphones, Sub 1/2
Storage	Internal SSD and microSD slot
Weight	PA4X-76: 16.3 kg / PA4X-61: 13.9 kg
