Korg PA4X User Manual

130| Using the voice effects and harmonization
22 Using the voice effects
and harmonization
Choosing a Voice Preset
Voice Presets contain settings for the voice effects and harmonization.
Open the Voice Preset window from the control panel
▪ Press the PRESET button in the MIC/VOICE section.

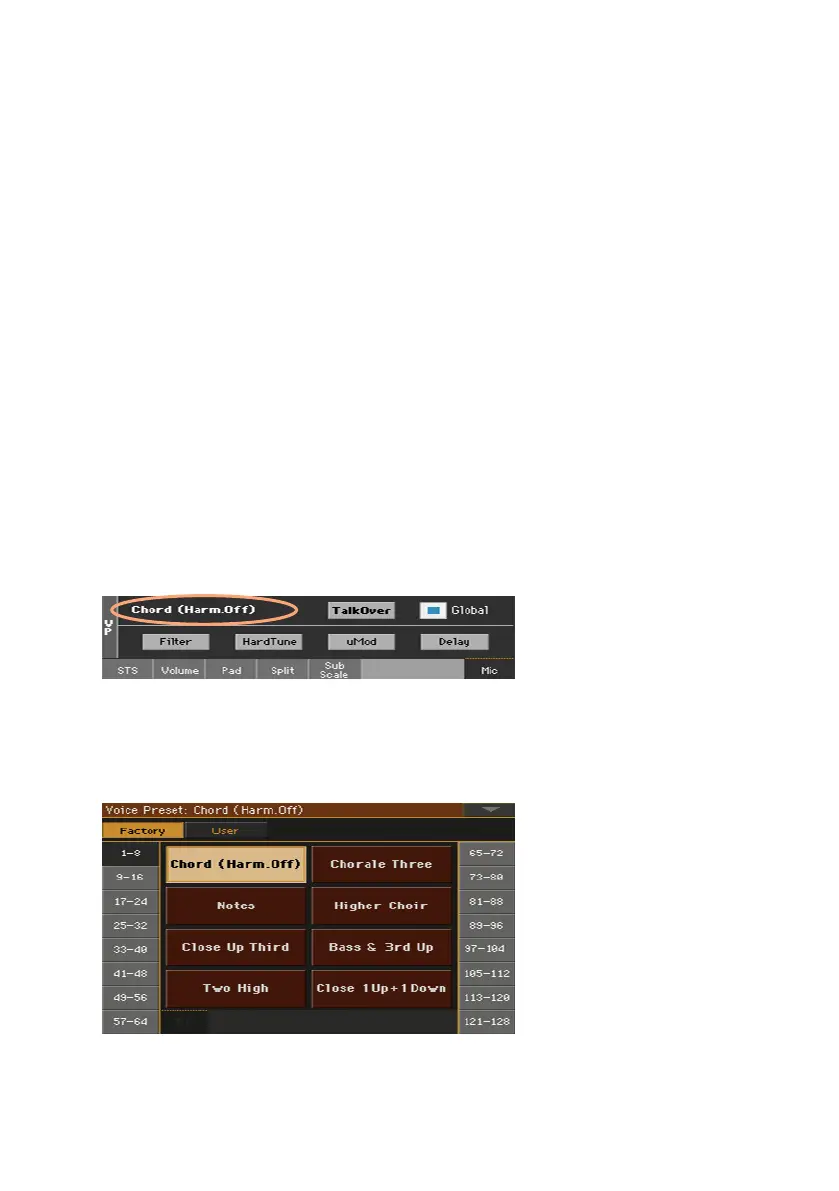

Open the Voice Preset window from the display
1 While in the Main page, touch the Mic tab to see the Mic pane.
2 Touch the name of the selected Voice Preset.
Select a Voice Preset
As soon as you press the button or touch the display, the Voice Preset
Select window appears.
1 In case you want to choose a different group of Voice Presets, touch one of
the tabs on the sides of the Voice Preset Select window.

Korg PA4X Specifications

General

Polyphony	128 voices
Type	Arranger Keyboard
USB	USB to Host, USB to Device
Keyboard	76 keys (PA4X-76) / 61 keys (PA4X-61), semi-weighted with velocity and aftertouch
Sound Engine	EDS-X (Enhanced Definition Synthesis – Expanded)
Display	7-inch TFT color touchscreen
Connectivity	MIDI In/Out/Thru, USB to Host, USB to Device
Dimensions	PA4X-61: 980 x 364.4 x 125.56 mm
Sounds	512 User Sounds
Sequencer	16-track sequencer
Audio Inputs	2 x 1/4" (line), 1 x XLR (mic)
Audio Outputs	Left/Right, Headphones, Sub 1/2
Storage	Internal SSD and microSD slot
Weight	PA4X-76: 16.3 kg / PA4X-61: 13.9 kg
