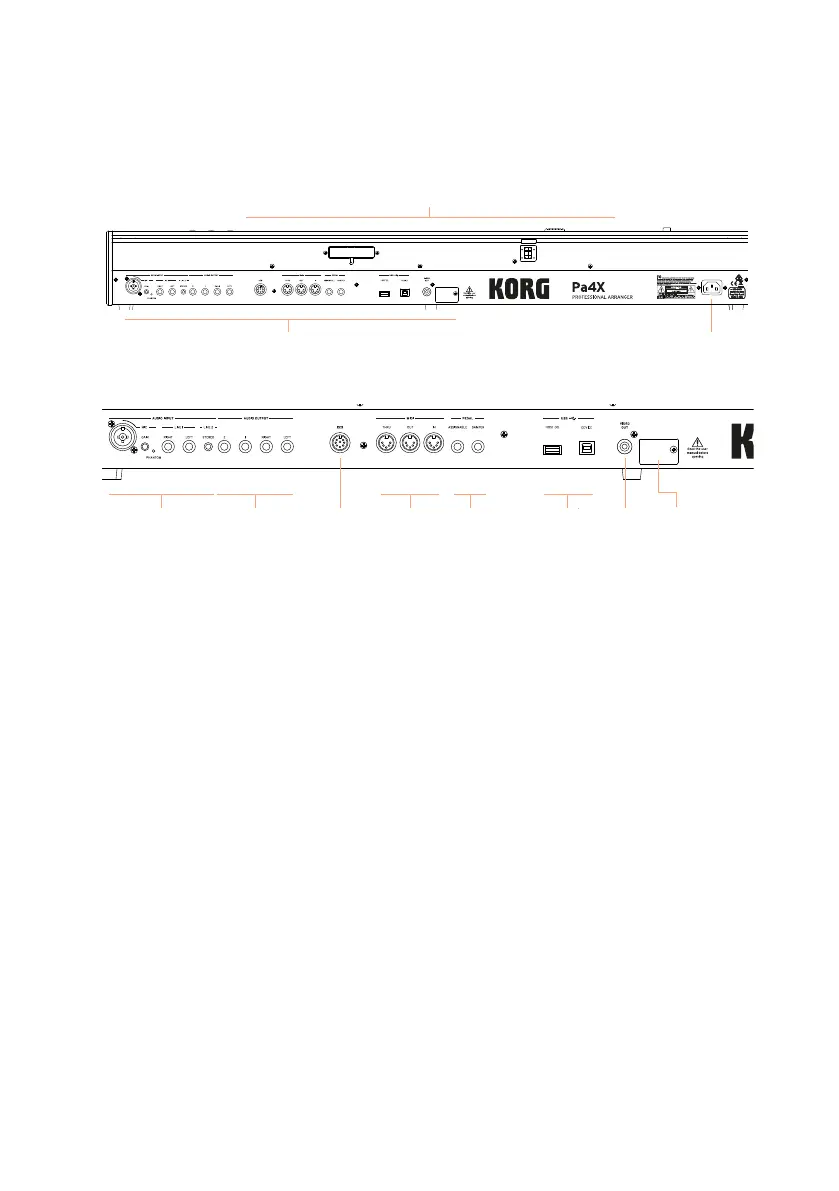

Rear panel
The rear panel is where you can find the various connections.
Guide for the music stand and
PaAS amplification system
Connectors Power connector
Audio
inputs
Audio
outputs
EC5 multiswitch
connector
Pedals USB
ports
Video
out
Battery and
microSD slot
MIDI
ports
Audio inputs
Use these connectors to connect a microphone or another musical intru-
ment. The convenient STEREO minijack can be used to directly connect the
audio output of a media player, a smartphone or a tablet.
Audio outputs
Use these connectors to send the audio signal (sound) to a mixer, a PA sys-
tem, a set of powered monitors, or your hi-fi system.
EC5 connector
You can connect an (optional) Korg EC5 multiswitch pedalboard, to control
many functions in realtime.
MIDI ports
Use these ports to connect Pa4X to external controllers (master keyboard,
MIDI guitar, wind controller, MIDI accordion…), to a series of expanders, or to
a computer with a MIDI interface.

Korg PA4X Specifications

General

Polyphony	128 voices
Type	Arranger Keyboard
USB	USB to Host, USB to Device
Keyboard	76 keys (PA4X-76) / 61 keys (PA4X-61), semi-weighted with velocity and aftertouch
Sound Engine	EDS-X (Enhanced Definition Synthesis – Expanded)
Display	7-inch TFT color touchscreen
Connectivity	MIDI In/Out/Thru, USB to Host, USB to Device
Dimensions	PA4X-61: 980 x 364.4 x 125.56 mm
Sounds	512 User Sounds
Sequencer	16-track sequencer
Audio Inputs	2 x 1/4" (line), 1 x XLR (mic)
Audio Outputs	Left/Right, Headphones, Sub 1/2
Storage	Internal SSD and microSD slot
Weight	PA4X-76: 16.3 kg / PA4X-61: 13.9 kg
