Installing a microSD card |143
Installing a microSD card
To expand the available onboard storage memory, you can install an (optional)
microSD card. The card can be installed by the user. Do not use parts differ-
ent than the one suggested by KORG, or you risk to damage the instrument!
Please consider a card containing localized musical resources could have
already been installed by your KORG Distributor. If you are not sure, contact
them before removing the installed card.
Precautions
▪ Installation of the microSD card is done at the user’s own risk. KORG will as-
sume no responsibility for any data loss, damage or injury resulting from its
improper installation or use.
▪ Be sure to disconnect the instrument from the AC plug, before opening it.
Warning: Removing or inserting the microSD card while the instrument is
connected to the AC plug may damage the instrument and the card!
▪ To prevent your body’s static electricity from damaging the board’s compo-
nents, touch an unpainted metallic component before proceeding with the
installation.
Installation
For installation, you will need a cross-point screwdriver (not supplied).
1 Disconnect the instrument from the AC plug.

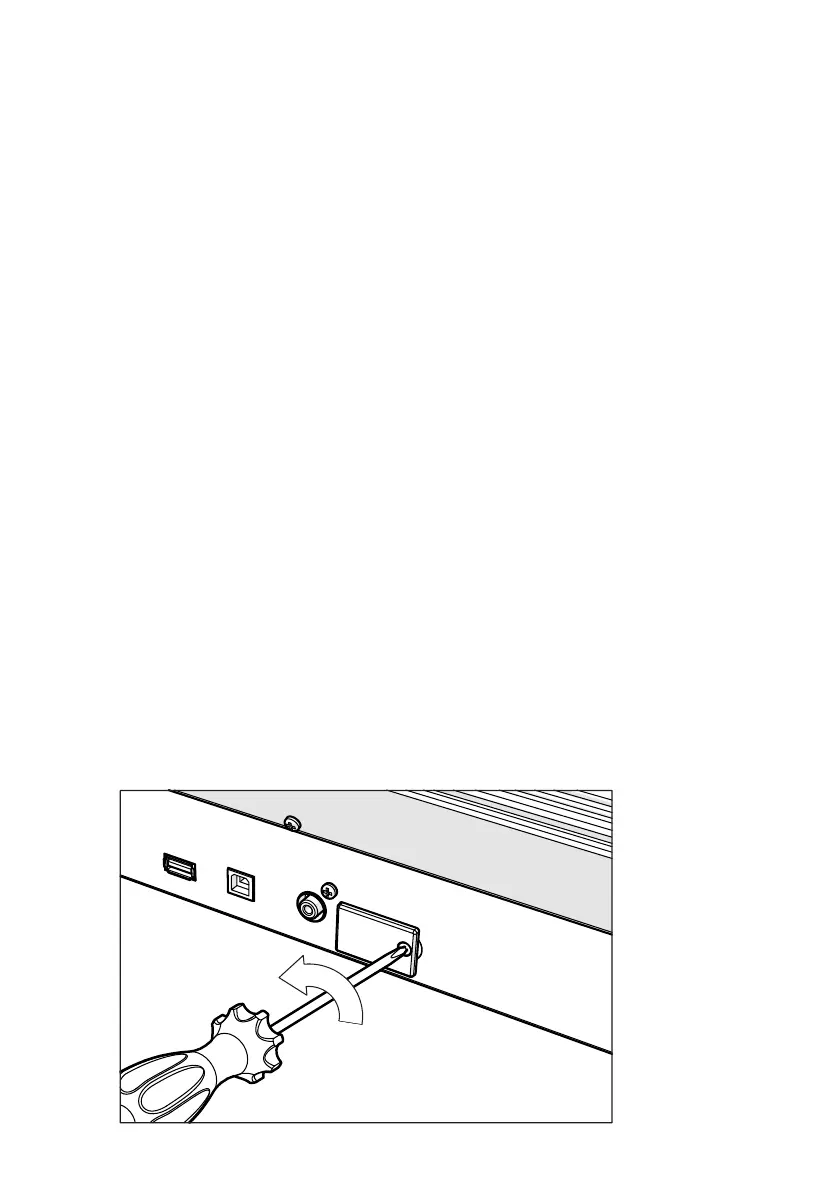

2 From the back of the instrument, use the cross-point screwdriver to remove
the fixing screw (a), then remove the cover and keep it apart.
ⓐ

Korg PA4X Specifications

General

Polyphony	128 voices
Type	Arranger Keyboard
USB	USB to Host, USB to Device
Keyboard	76 keys (PA4X-76) / 61 keys (PA4X-61), semi-weighted with velocity and aftertouch
Sound Engine	EDS-X (Enhanced Definition Synthesis – Expanded)
Display	7-inch TFT color touchscreen
Connectivity	MIDI In/Out/Thru, USB to Host, USB to Device
Dimensions	PA4X-61: 980 x 364.4 x 125.56 mm
Sounds	512 User Sounds
Sequencer	16-track sequencer
Audio Inputs	2 x 1/4" (line), 1 x XLR (mic)
Audio Outputs	Left/Right, Headphones, Sub 1/2
Storage	Internal SSD and microSD slot
Weight	PA4X-76: 16.3 kg / PA4X-61: 13.9 kg
