144| Installing the options

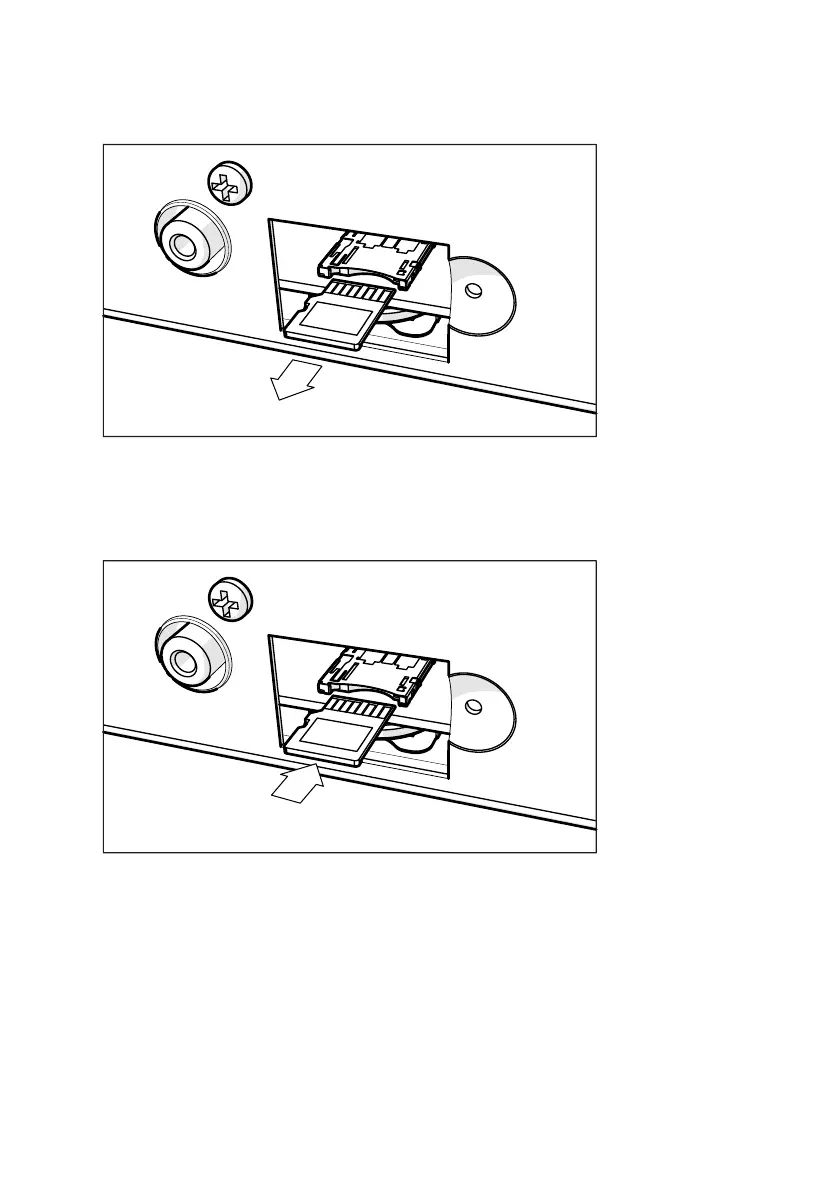

3 Push on the microSD card (c) already installed in the slot (if any) to unlock
it, and remove it, being very careful not to let it fall inside the instrument.
ⓒ
4 Insert the microSD card (d) into the empty card slot, being sure the connec-
tor side is facing up and toward the instrument. Gently push the card, until
you hear a click sound meaning it is properly inserted. Warning: Be sure to
insert the card correctly, or it may slip inside the instrument!
ⓓ

Korg PA4X Specifications

General

Polyphony	128 voices
Type	Arranger Keyboard
USB	USB to Host, USB to Device
Keyboard	76 keys (PA4X-76) / 61 keys (PA4X-61), semi-weighted with velocity and aftertouch
Sound Engine	EDS-X (Enhanced Definition Synthesis – Expanded)
Display	7-inch TFT color touchscreen
Connectivity	MIDI In/Out/Thru, USB to Host, USB to Device
Dimensions	PA4X-61: 980 x 364.4 x 125.56 mm
Sounds	512 User Sounds
Sequencer	16-track sequencer
Audio Inputs	2 x 1/4" (line), 1 x XLR (mic)
Audio Outputs	Left/Right, Headphones, Sub 1/2
Storage	Internal SSD and microSD slot
Weight	PA4X-76: 16.3 kg / PA4X-61: 13.9 kg
