Korg PA4X User Manual

Choosing the Styles |59

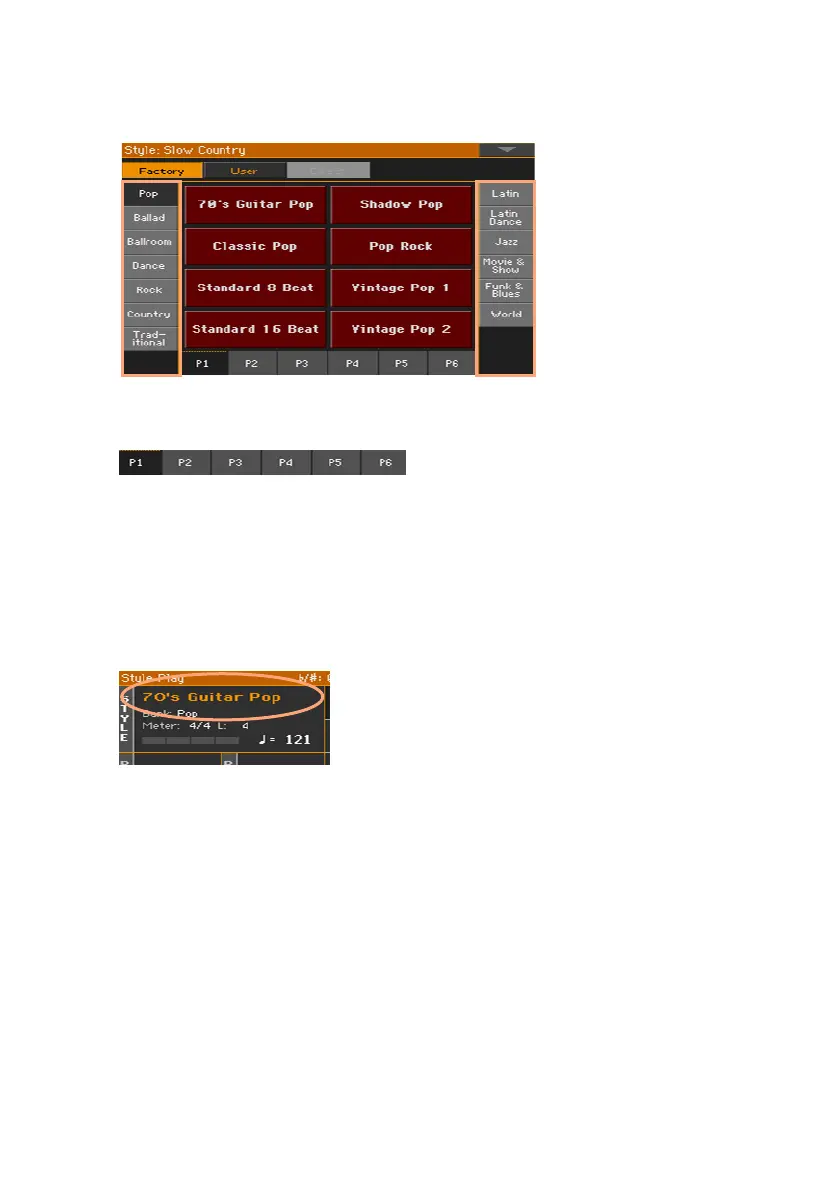

▪ To choose a different group of Styles, touch one of the tabs on the sides of
the window.
▪ To choose one of the available pages in the selected Style group, touch one
of the P1…P6 tabs at the bottom of the window.
As an alternative, press again the same STYLE button.
2 Touch the name of the Style you want to choose.
3 If you want to close the Style Select window (and it does not close by itself),
press the EXIT button.
In the end, you will see the name of the selected Style in the dedicated area
of the main screen.

Korg PA4X Specifications

General

Polyphony	128 voices
Type	Arranger Keyboard
USB	USB to Host, USB to Device
Keyboard	76 keys (PA4X-76) / 61 keys (PA4X-61), semi-weighted with velocity and aftertouch
Sound Engine	EDS-X (Enhanced Definition Synthesis – Expanded)
Display	7-inch TFT color touchscreen
Connectivity	MIDI In/Out/Thru, USB to Host, USB to Device
Dimensions	PA4X-61: 980 x 364.4 x 125.56 mm
Sounds	512 User Sounds
Sequencer	16-track sequencer
Audio Inputs	2 x 1/4" (line), 1 x XLR (mic)
Audio Outputs	Left/Right, Headphones, Sub 1/2
Storage	Internal SSD and microSD slot
Weight	PA4X-76: 16.3 kg / PA4X-61: 13.9 kg
