QA Full Inspection
Pa-50
5
INTERNAL INSPECTION
Followings are checked during Internal Inspection Mode. In the case of NG, "FAULT!!!" is displayed on
LCD.
NAND Check
TGL Check
TGL Dram Check
TGL Rom Check
Floppy Disk Check
MIDI Loop Check
Phone Insert Check
If DRAM or PCM ROM for TGL is NG (Open/Short Circuit or etc), TGL check result becomes NG and
following is displayed on LCD. In this case, please finish Inspection.
press key; -> TGLPCMROM
If "FAULT!!!" is displayed during Floppy Disk Check, MIDI Loop Check, Phone Insert Check, please
check connection and press [F2] to do re-test. If "FAULT!!!" is disappear, please continue. If "FAULT!!!"
is displayed again, please finish test since result is NG.
When "FALUT!!!" is not displayed on LCD after Phone Insert Check completion, Internal Inspection is
successful. Please press [F3] to go to Panel Inspection
(Caution)
"Phone Insert Check" is not displayed on LCD.

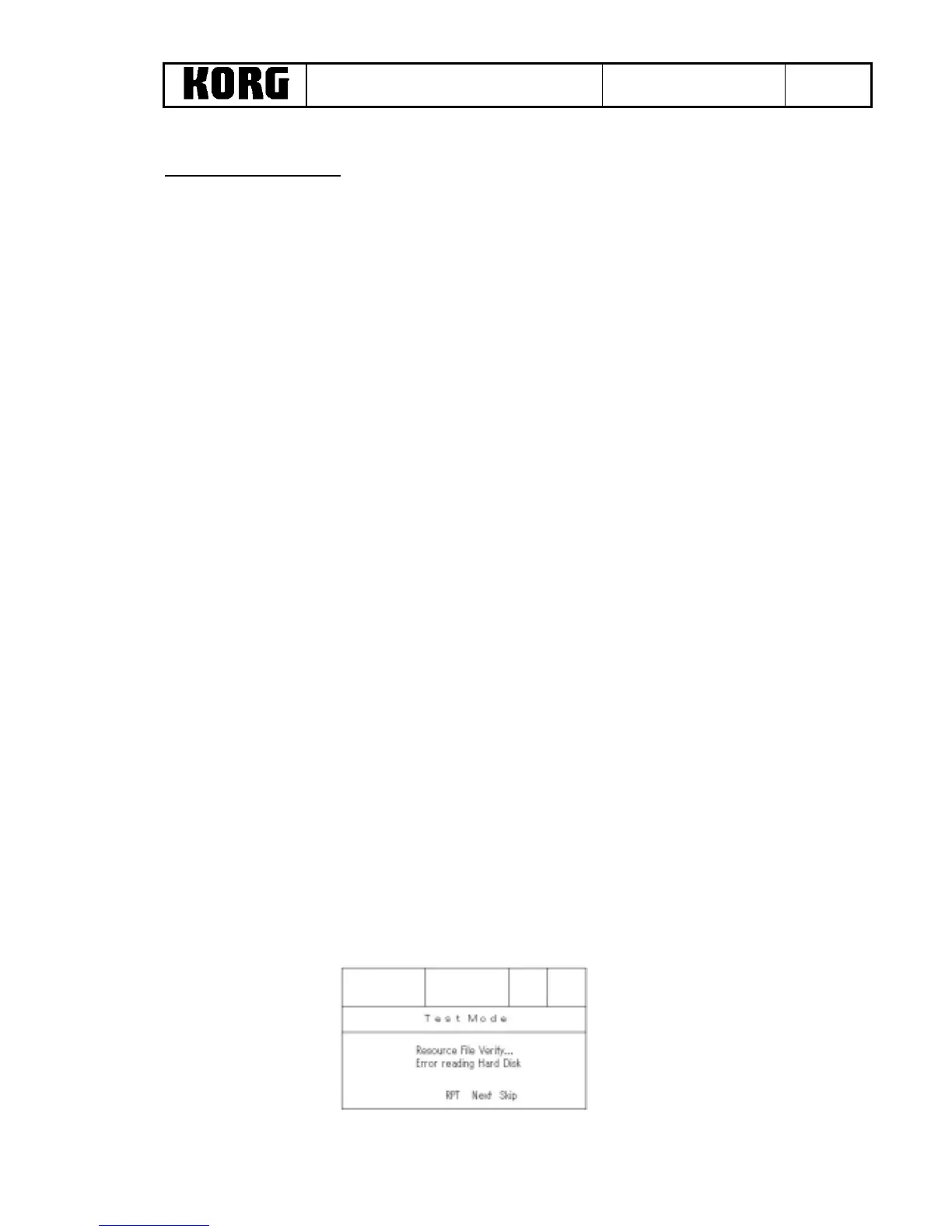

*After "MIDI Loop Check" completion, "RESOURCE" is displayed on LCD. This test is loading Pre-load
Data from Hard Disk. Pa50 does not have Hard Disk and this test is not necessary.
Please press [F4], then [F3] to go to Panel Inspection.
