Korg RK-100S User Manual

RK-100S Sound Editor Owner's Manual
Page 11
KORG Inc.

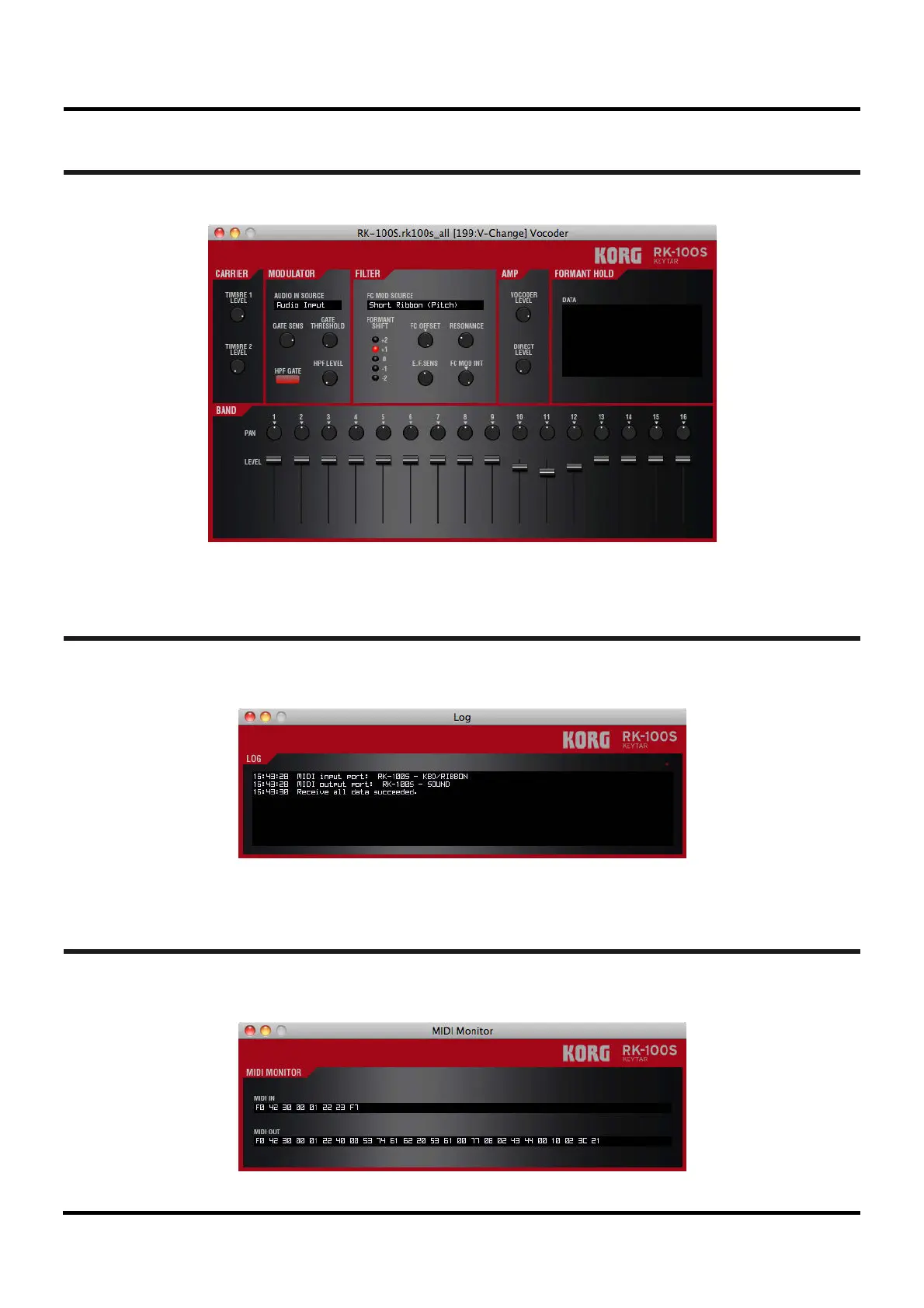

Vocoder Edit window
Here you can edit the vocoder parameters.
Log window
This window displays the times when files were saved/loaded, the history of communication with the
RK-100S, the accessed content, and error information.
MIDI Monitor window
This window displays the MIDI messages transmitted by RK-100S Sound Editor and the MIDI messages
received from the RK-100S.

Korg RK-100S Specifications

General

Polyphony	8 voices
Arpeggiator	Yes
Type	Keytar
LFO	2 LFOs
Keyboard	37 keys (velocity sensitive)
Sound Engine	Analog modeling
Inputs	Audio input
Outputs	1 x 1/4" (audio)
Power Supply	6 x AA batteries or AC adapter
Dimensions	830 x 262 x 71 mm / 32.68 x 10.31 x 2.80 inches
Weight	3.4 kg / 7.50 lbs (excluding batteries)
Effects	Delay
Controllers	Ribbon controller
MIDI	Out
USB	Type B
Oscillators	2 oscillators
