8–1: Master Effects
74
Combination Edit P8
8–1: Master Effects
In this page you can make settings for the master effects, and adjust the level of the audio signals
that are output from the TRINITY’s output jacks (1/L/MONO, 2/R, 3, 4).
The Send 1, 2 parameters displayed at the left are the send levels specified in “7–1: Effect Group-
ing.” Pan L and Pan R are the pan settings specified in “7–1: Effect Grouping.”
However when “7–1a: FX Size” is OFF or if the total Size of the insert effects is 0, these will be the
send levels and pan settings made in “1–2: Timb Param2” and in Combination Play mode “1–1:
Combination Play” (☞ page 55 in this manual).
For details refer to the separate Effect Guide.
8–1a: Effect 1/Effect 2 Setting
Here you can make settings for Effect 1 ([Modulation]) and Effect 2 ([Reverb/Delay]). The check
box in the left of the LCD determines how [Modulation] and [Reverb/Delay] will be connected.
If this is checked, [Modulation] and [Reverb/Delay] will be connected in series. The right output
of [Modulation] will be sent to [Reverb/Delay].
Effect On/Off [OFF, ON]
Turns the master effects on/off.
Independently of this setting, [Modulation] can be turned off by the MIDI message Effect 4 Con-
trol (CC#94), and [Reverb/Delay] can be turned off by Effect 5 Control (CC#95). In both cases, the
effect will be turned off by a value of 0, and will be restored to its original settings by values of 1–
127. The Global MIDI channel is used for these messages.
Effect Select
Selects the master effects. For [Modulation] you can select a modulation–type effect and for
[Reverb/Delay] you can select a reverb/delay-type effect.
Settings for the effects you select here are made in “8–2: Edit E1” and “8–3: Edit E2.”
For details on each effect, refer to the separate Effect Guide.
8–1b: Pan 1/2 [OFF, L…50:50…R]
Adjusts the pan of output jacks 3 and 4.
With a setting of OFF, the sound will not be output to output jacks 3 and 4.
8–1c: Return 1/2 [0…127]
Adjusts the level of the audio signals sent from [Modulation] and [Reverb/Delay] to output jacks
1/L/MONO and 2/R. The audio signals from Pan L and R will be mixed with the [Modulation]
and [Reverb/Delay] outputs adjusted by these Return 1 and 2 levels, and sent from output jacks
1/L/MONO and 2/R.

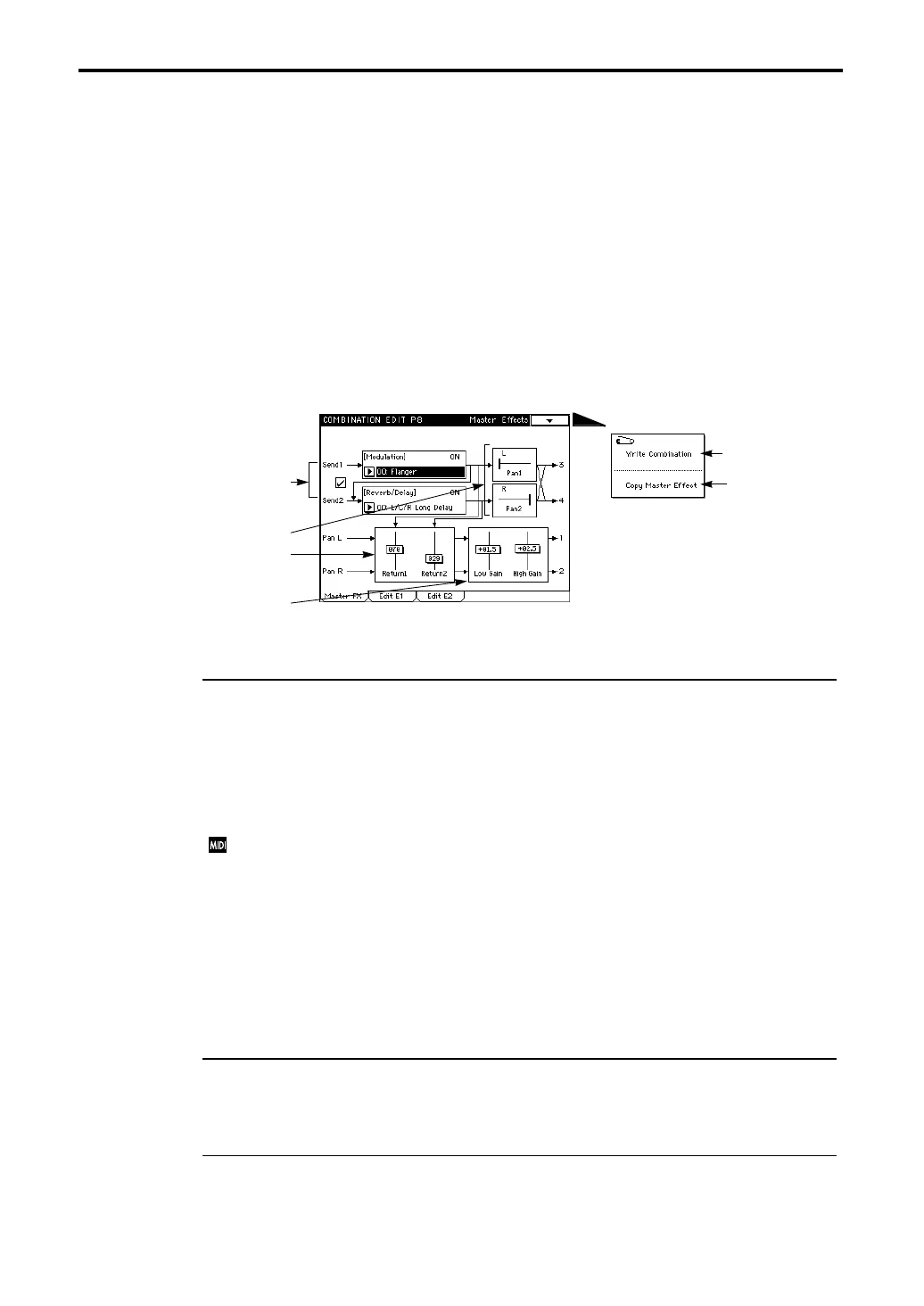

8–1a
8–1b
8–1c
8–1d
Page Menu
8–1A
8–1B
To Next Page
