Product description
1 12345678910111213141516
© 2022 KOSTAL Solar Electric GmbH24
kW
h
0
11
4,1
4,1

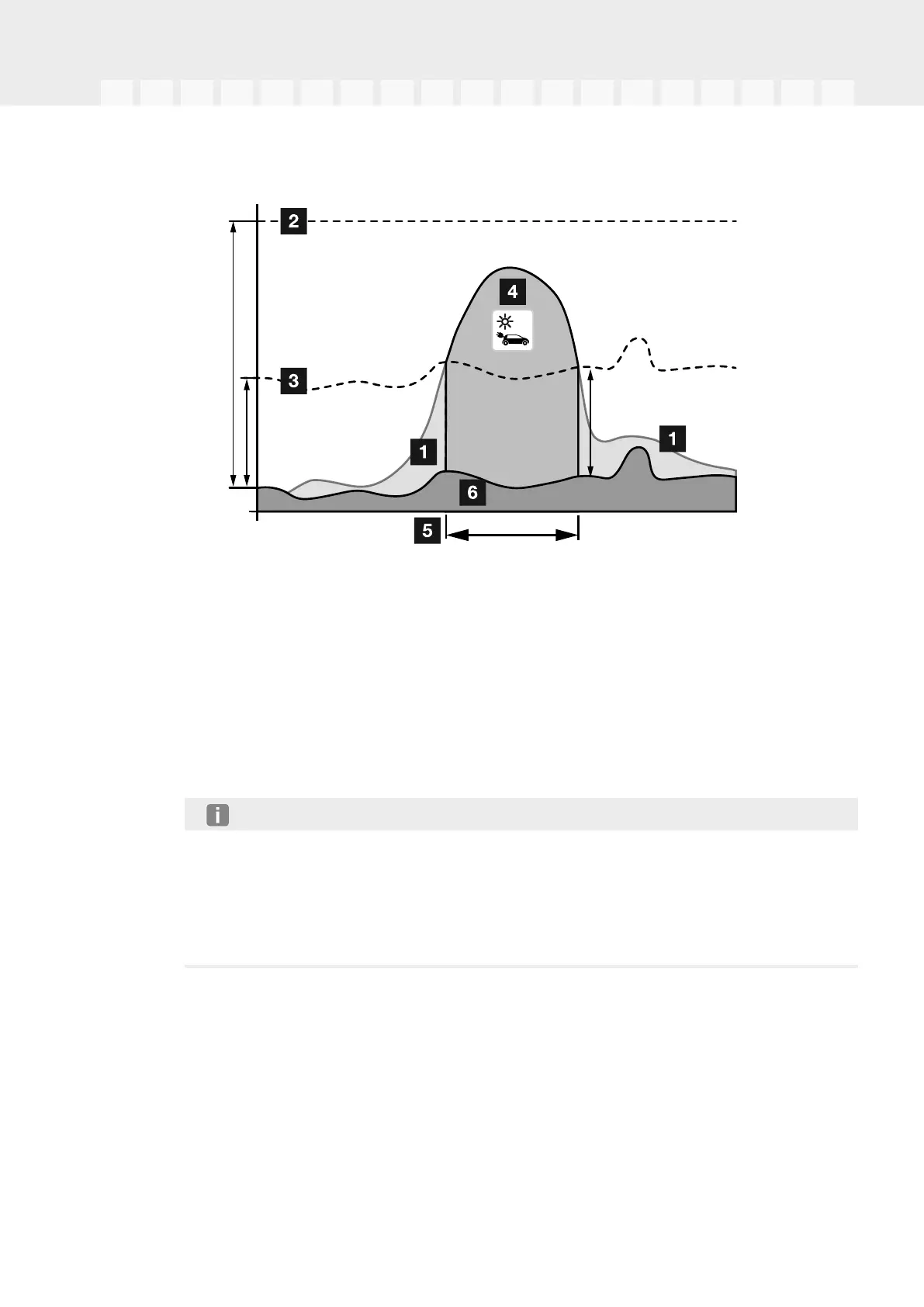

1PV surplus
2Max. wallbox charging power 3.7kW (with 1-phase vehicle)
Max. wallbox charging power 11kW (with 3-phase vehicle)
3Min. wallbox charging power 1.4kW (with 1-phase vehicle)
Min. wallbox charging power 4.1kW (with 3-phase vehicle)
4Charging electric vehicle with PV surplus
5Electric vehicle charging time
6Home consumption of other devices - partly covered directly from PV.
NOTE
Hysteresis for passage of clouds (changing cloud cover): If the surplus needed to charge
the vehicle is no longer available due to further consumers or the passage of clouds,
charging is not interrupted immediately. Instead, it is reduced to the minimum charging
power for approx. 5 min to avoid an interruption in charging after the vehicle has fre-
quently switched charging on and off.
Solar Plus Mode (solar-optimised charging)
Solar-optimised charging is only possible in combination with a PV system and the KOSTAL
Smart Energy Meter. The PV system supplies the energy needed to charge the electric
vehicle.
The function is usually actively selected via the user interface of the KOSTAL Smart Energy
Meter.
