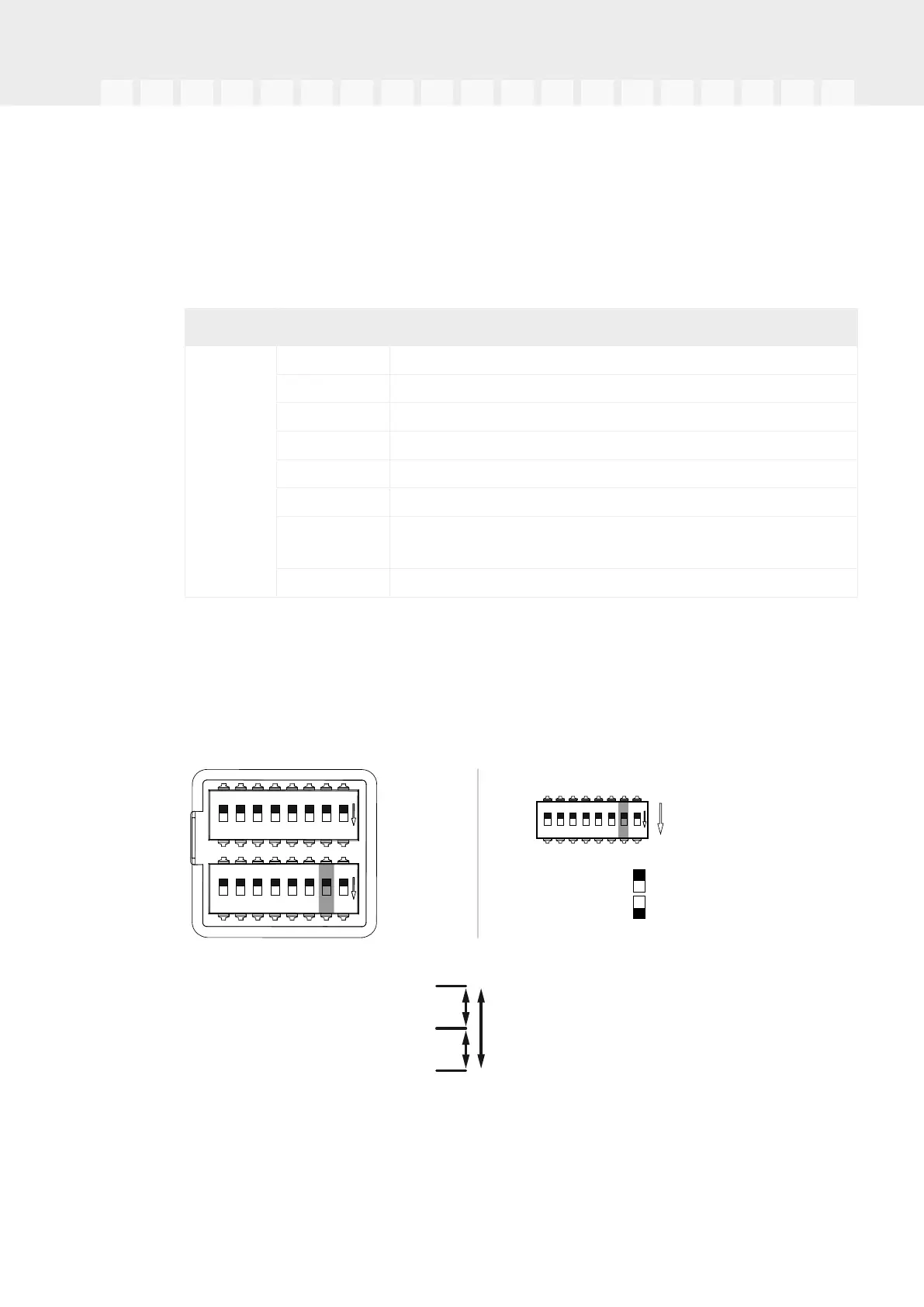

6.4Settings for bank 1
The following settings can be configured via bank 1:
Configurable functions:
BankDIP switchFunction
11No function (set to OFF)
2Unbalanced load limitation between the phases
3No function (set to OFF)
4Activate Modbus RTU
5Wallbox control, master/slave
6Activate KOSTAL Smart Energy Meter
7Activate convenience functions (e.g. Solar Pure Mode) for
KOSTAL Smart Energy Meter
8No function (set to OFF)
Setting unbalanced load limitation
The unbalanced load monitoring between phases L1-L3 can be activated. If the unbalanced
load between the phases is greater than 4.6 kVA, the charging power is reduced. In some
countries, activation of this function is mandatory.
Configure the setting as desired.
Bank 2
Bank 1
12
45
3
678
ON
1245 36
78
ON
2
off
≤4,6 kVA
ON
OFF
Bank 1
1245 367
8
ON
≤4,6kVA
L2
L1
L3
