Commissioning/configuration
1 12345678910111213141516
© 2022 KOSTAL Solar Electric GmbH62
BankDIP switchFunction
12OFFUnbalanced load limitation deactivated
ONUnbalanced load limitation activated.

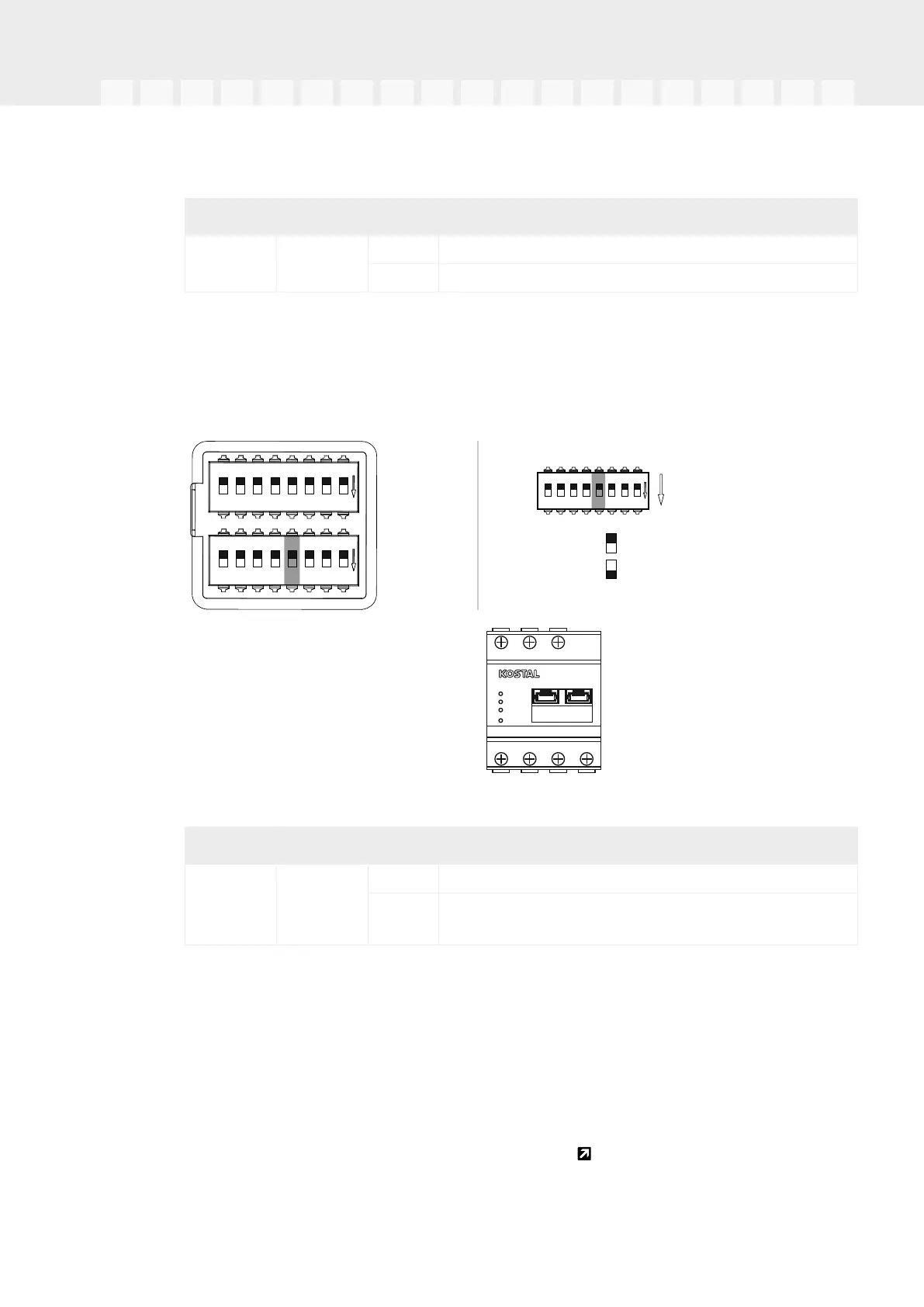

Activate Modbus RTU
If a Modbus RTU energy meter (KOSTAL Smart Energy Meter) is connected to the wallbox,
the Modbus RTU protocol must be activated for this purpose.
Configure the setting as desired.
ON
OFF
4
Modbus Off(Standard)
Modbus On
Bank 1
1245 3678
ON
Bank 2
Bank 1
12
45
3
678
ON
1245 36
78
ON
LAN
L1 L2 L3
L1 L2 L3 N
LAN
STATUS
NETWORK
SERIAL BUS
REST
Smart Energy Meter
Modbus RTU
Configurable functions:
BankDIP switchFunction
14OFFModbus RTU deactivated.
ONModbus RTU activated for a Modbus RTU energy meter
(KOSTAL Smart Energy Meter).
Application:
■ ENECTOR with KOSTAL Smart Energy Meter and convenience functions
■ ENECTOR with KOSTAL Smart Energy Meter for blackout protection (house connection
monitoring)
Setting wallbox control
The wallbox can operate as a master or slave and therefore read or receive data or control
information from a connected energy meter/manager
System overview,Page29
