Commissioning/configuration
1 12345678910111213141516
© 2022 KOSTAL Solar Electric GmbH67

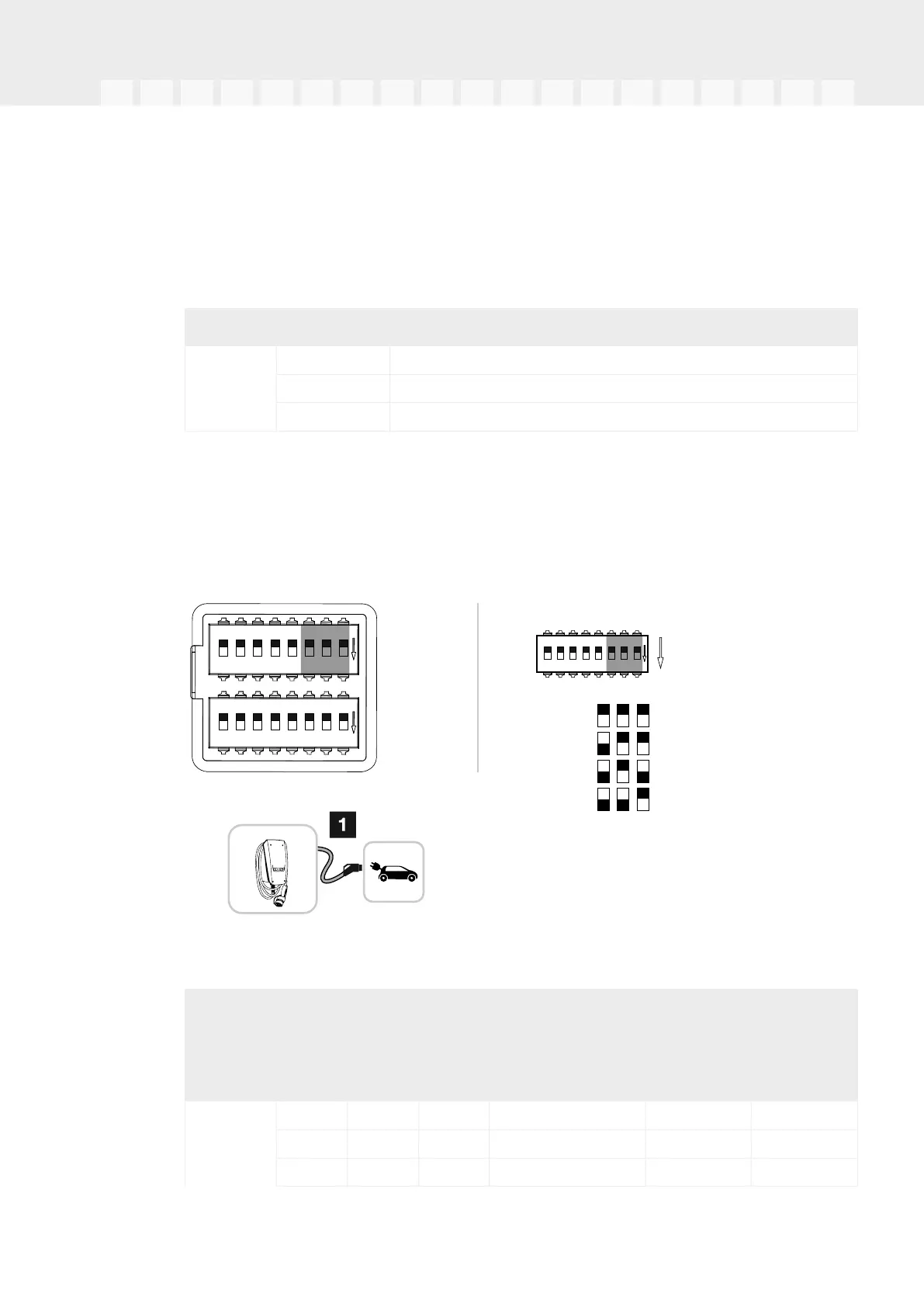

6.5Settings for bank 2
The following settings can be configured via bank 2:
Configurable functions:
BankDIP switchFunction
21-3Max. charging current per phase
4-5No function (default setting OFF)
6-8Maximum current for house connection
Setting maximum charging current per phase
The max. charging current per phase for charging an electric vehicle can be set between
6-16 A. This must be compliant with the fuse protection (line circuit breaker / residual cur-
rent device) of the wallbox.
Configure the setting as desired.
Bank 2
Bank 1
12
45
3
678
ON
1245 36
78
ON
2 13
16 A
13 A
10 A
6 A
ON
OFF
Bank 2
1245 3678
ON
1ph / 3ph
16 A = 3,7 / 11 kW
13 A = 3,0 / 9,0 kW
10 A = 2,3 / 6,9 kW
6 A = 1,4 / 4,1 kW
Typ 2
Wallbox
Configurable functions:
BankDIP switchCharging current
per phase (A)
Charging power (kW)
321Connection
1-phase3-phase
2OFFOFFOFF163.711
ONOFFOFF133.09
ONOFFON102.36.9
