Kostal ENECTOR - Connecting ENECTOR without KSEM

System overview
1 12345678910111213141516
© 2022 KOSTAL Solar Electric GmbH31
3.2Connecting an ENECTOR without KSEM
1-phase or 3-phase connection
1x
3-pole
MCB
20 A
Typ 2
RCD
Typ A
30 mA
L2
L1
L3
N
PE
63 A
Wallbox
1x16 A / max. 11 kW
L2
L1
L3
N
PE
Typ 2
RCD
Typ A
30 mA
Wallbox
1x16 A / max. 3,7 kW

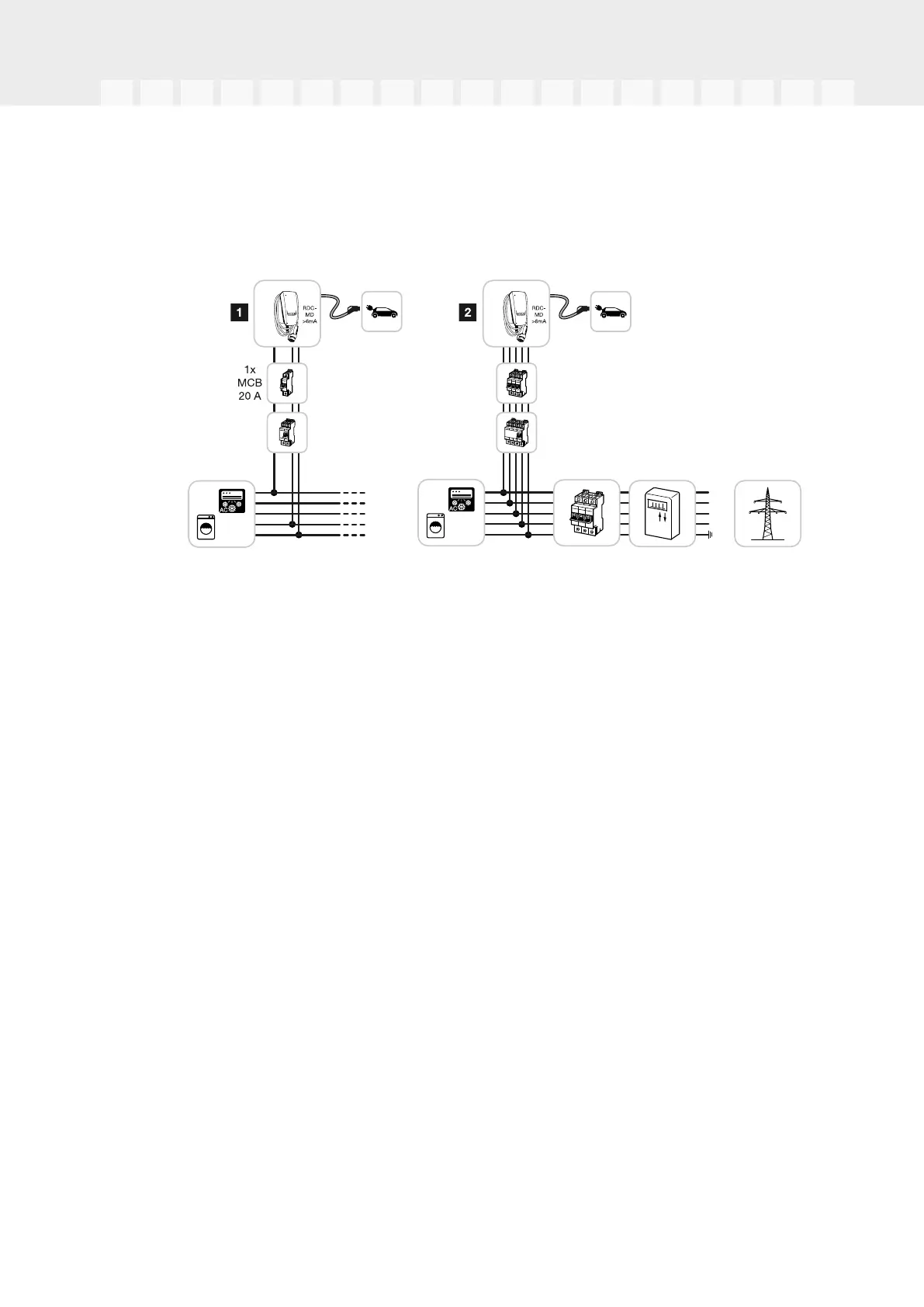

1KOSTAL wallbox (1-phase connection)
2KOSTAL wallbox (3-phase connection)
The wallbox can be connected to the house grid as a 1-phase or 3-phase system.
Function:
■ Power Mode (simple charging)
1-phase at 1.4 - 3.7 kW / 230 V
3-phase at 3.7 - 11 kW / 400 V
