6.2Function of DIP switches

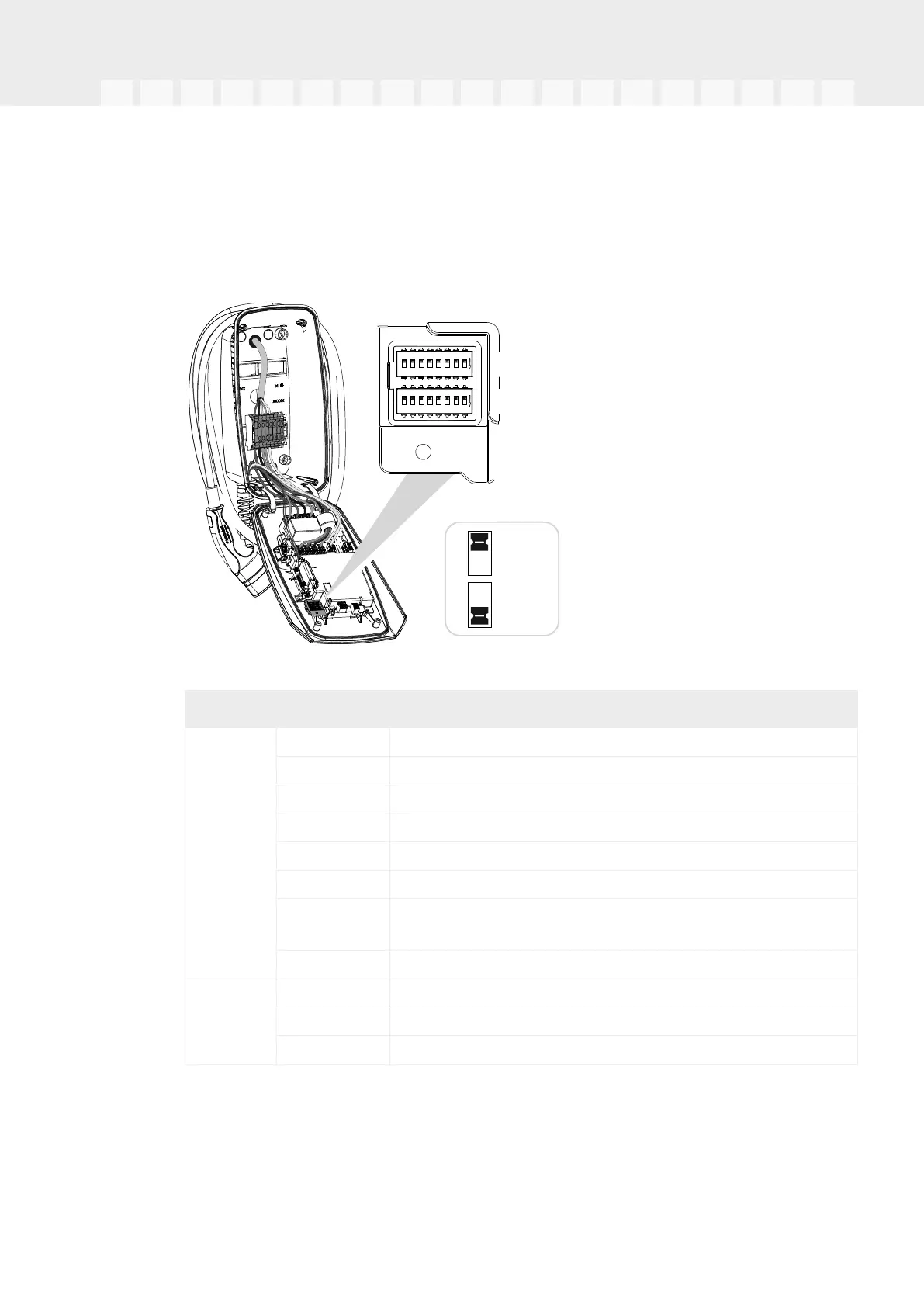

There are two 8-pole DIP switches (banks) in the housing cover with which the wallbox can
be configured.
L
1
L2
L
3
N
P
E
OFF
ON
12
45
3
67
ON
1245 3678
ON
8
Bank 1 (S1)
Bank 2 (S2)
Configurable functions:
BankDIP switchFunction
11No function (set to OFF)
2Unbalanced load limitation between the phases
3No function (set to OFF)
4Activate Modbus RTU
5Wallbox control, master/slave
6Activate KOSTAL Smart Energy Meter
7Activate convenience functions (e.g. Solar Pure Mode) for
KOSTAL Smart Energy Meter
8No function
21–3Max. charging current per phase
4–5No function (set to OFF)
6–8Maximum current for house connection
