4.4Routing AC supply cable
DANGER
Risk of fire due to overload
If the line circuit breaker and supply cable are not suitably designed, there is a risk of fire
due to cable overload.
■ Design the line circuit breaker and supply cable in accordance with the device’s
technical data.
NOTE

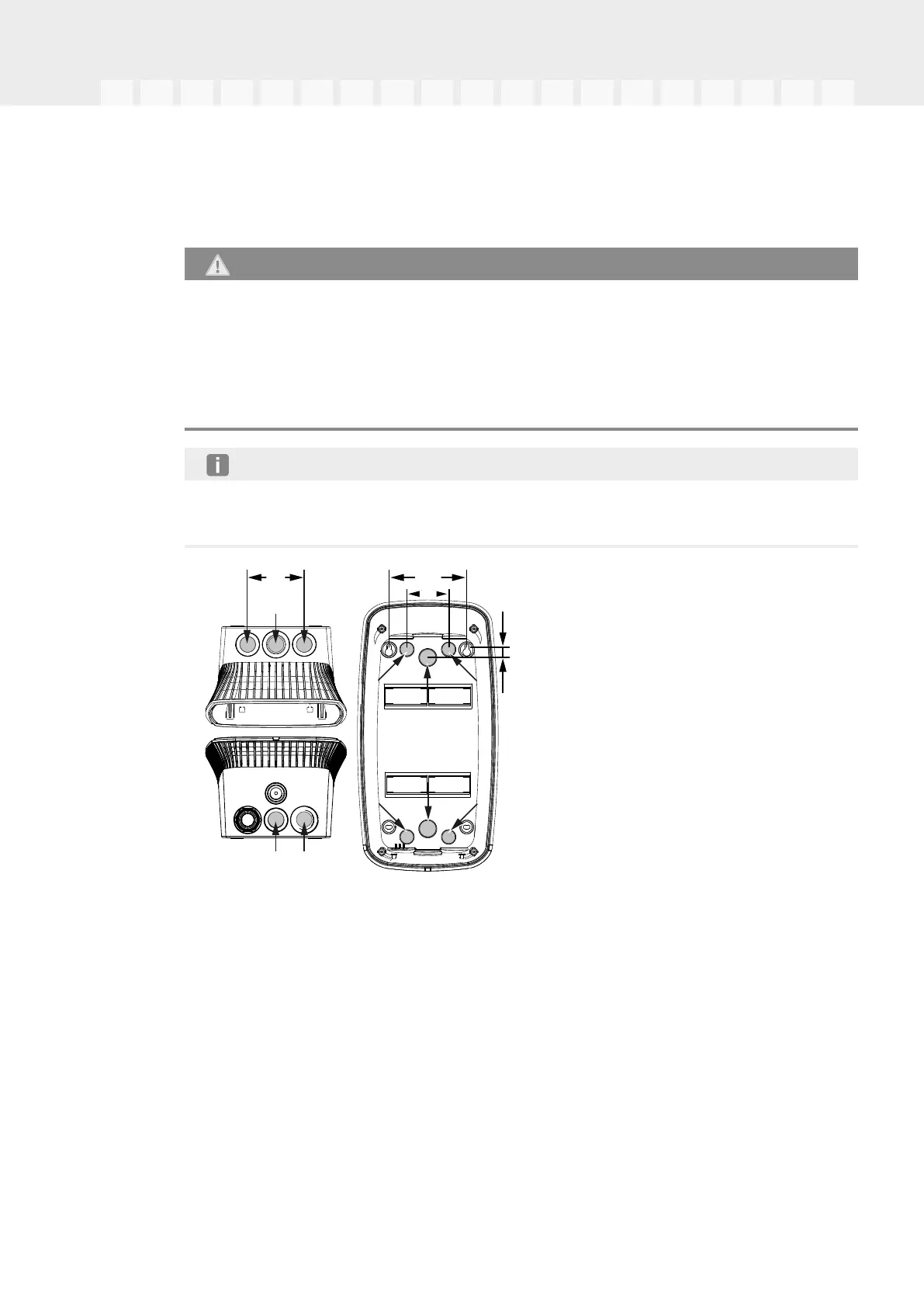

If mounting on the wall, the position of the supply cable must be planned using the drilling
template or illustration supplied. Cable inlets are located on the rear, bottom and top.
11080
59
15
1.Route the supply cable to the desired location.
2.Observe the permissible bending radius when routing the supply cable. Approx. 30
cm of cable is required for the supply cable inside the wallbox.
