Kostal ENECTOR - Page 60

Commissioning/configuration
1 12345678910111213141516
© 2022 KOSTAL Solar Electric GmbH60
BankDIP switch
87654321
1OFFONONONONOFFOFFOFF
NOTE
In order for the wallbox to be set up with the convenience functions in the KOSTAL
Smart Energy Meter (KSEM), this function must first be activated via an activation code
for the wallbox in the KSEM.
The activation code can be purchased from the KOSTAL Solar online shop.
To access the shop, go to:
shop.kostal-solar-electric.com.

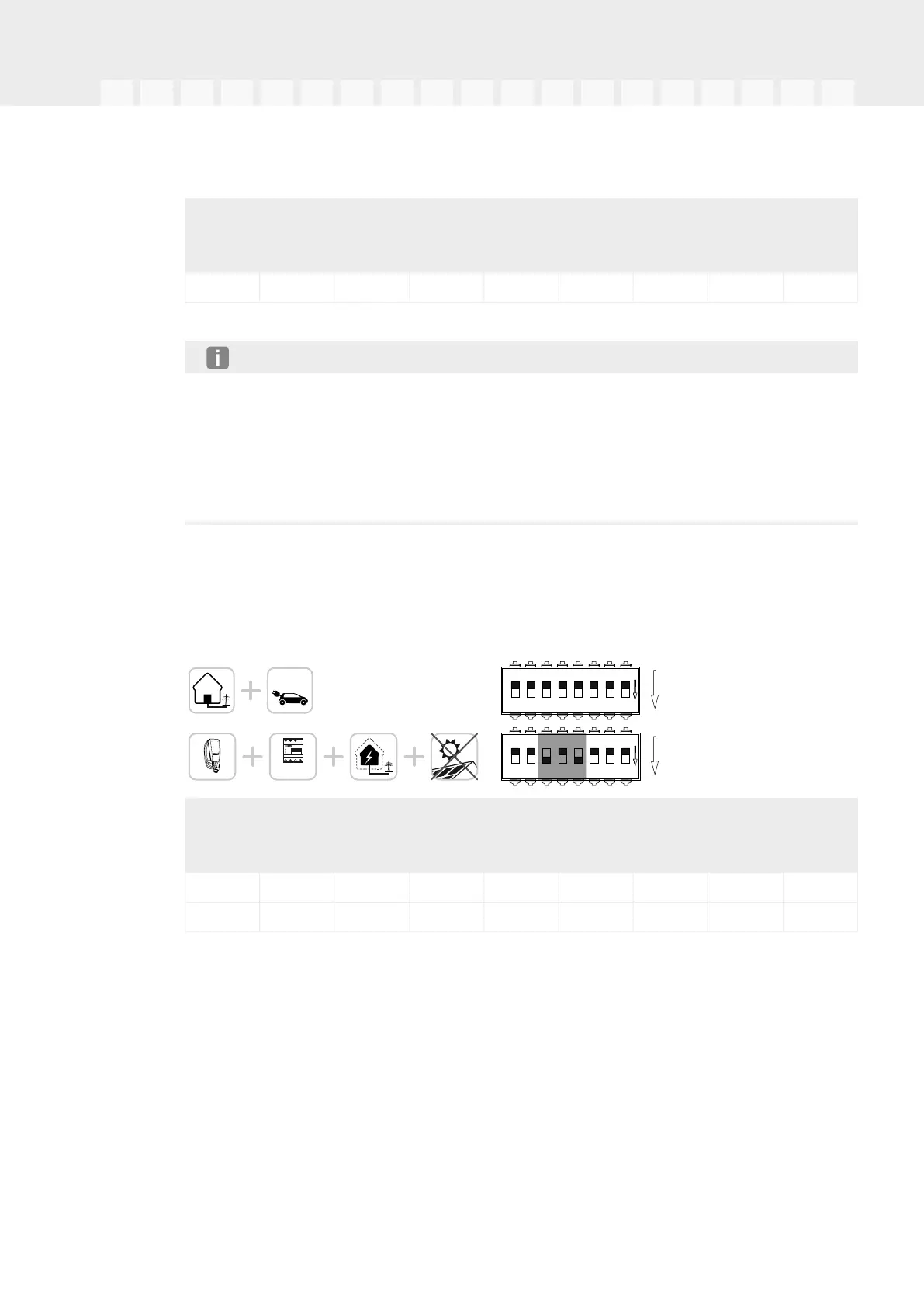

ENECTOR with KOSTAL Smart Energy Meter for blackout protection (house connec-
tion monitoring)
1245 367
8
ON
KSEM
LAN
L1 L2 L3
L1 L2 L3 N
LAN
STATUS
NETWORK
SERIAL BUS
REST
Smart Energy Meter
Bank 1 (S1)
ON
OFF
ON
OFF
1245 3678
ON
Bank 2 (S2)
63 A
3x16 A
11 kW
BankDIP switch
87654321
2OFFOFFOFFOFFOFFOFFOFFOFF
1OFFOFFONOFFONOFFOFFOFF
