Connection of additional components
1 12345678910111213141516
© 2022 KOSTAL Solar Electric GmbH53
max. 30 m
0,5-2,5 mm²
0,5-2,5 mm²
10 mm

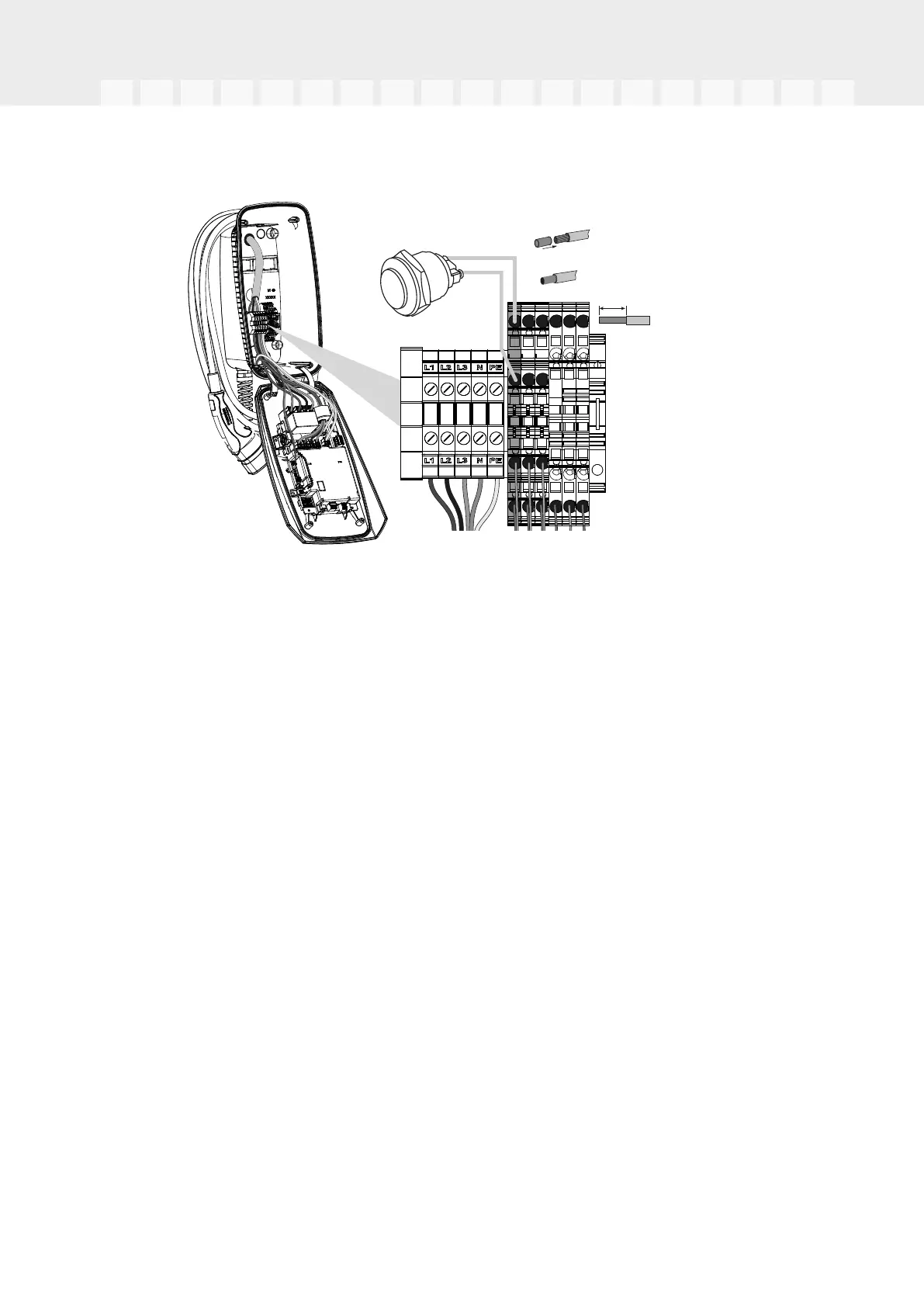

Proceed as follows:
1.Installing push-button
2.Strip the cable.
3.Strip 10 mm of insulation from the wires.
4.Connect cables to push-button/rotary switch according to terminal labelling.
5.Connect cables to terminal according to terminal labelling.
✔ Push-button installed.
