Connection of additional components
1 12345678910111213141516
© 2022 KOSTAL Solar Electric GmbH55

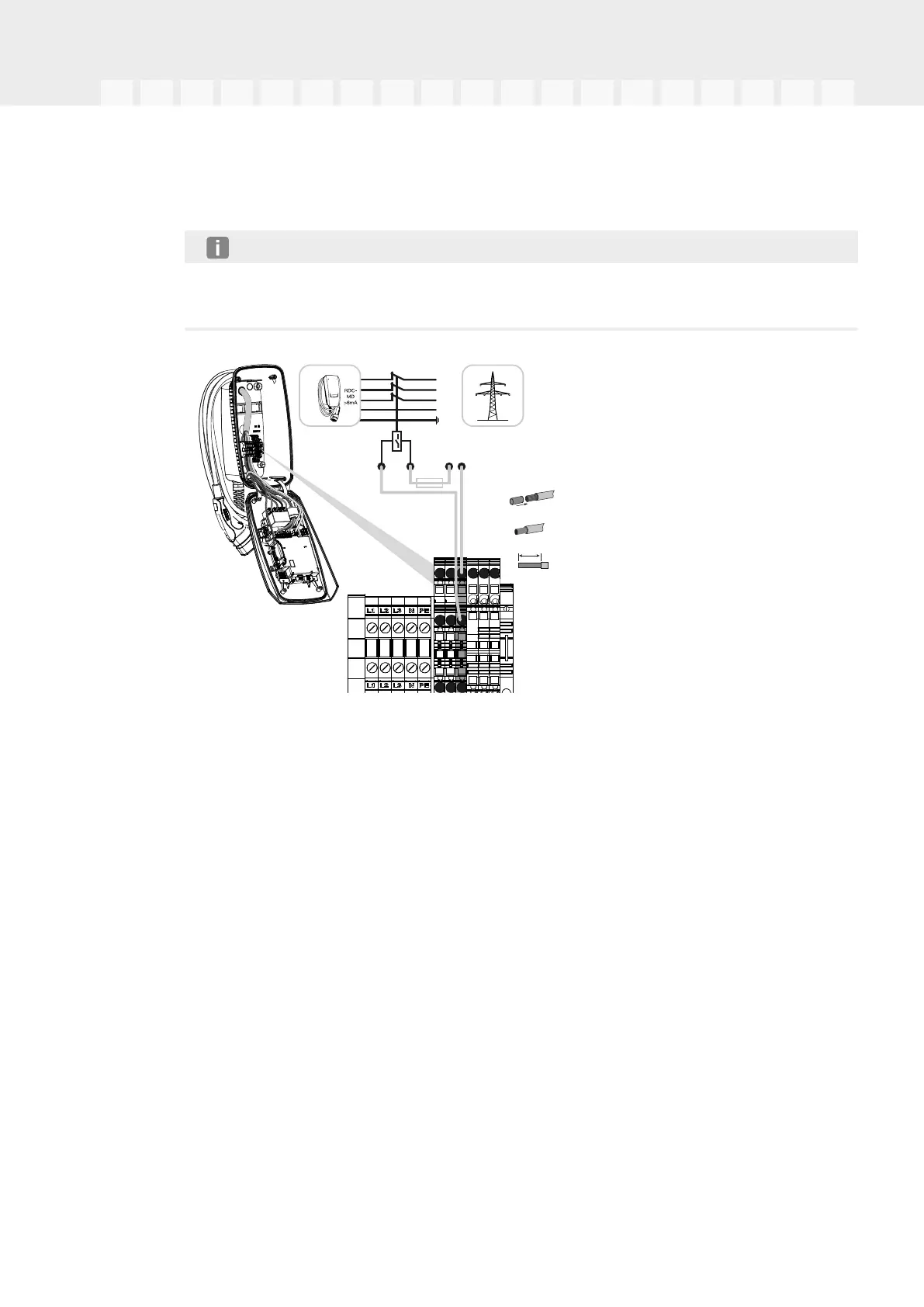

8.Connect cable to wallbox terminal according to terminal labelling.
NOTE
The potential-free contact (normally open contact) can be loaded to max. 230 V AC / 24
V DC / 1 A.
10 mm
PE
L2
L1
L3
N
max. 30 m
0,5-2,5 mm²
0,5-2,5 mm²
Wallbox
max. 230 V AC / 1 A
max. 24 V DC / 1 A
F
9.Connect cable to shunt release.
✔ Wallbox connected to shunt release.
