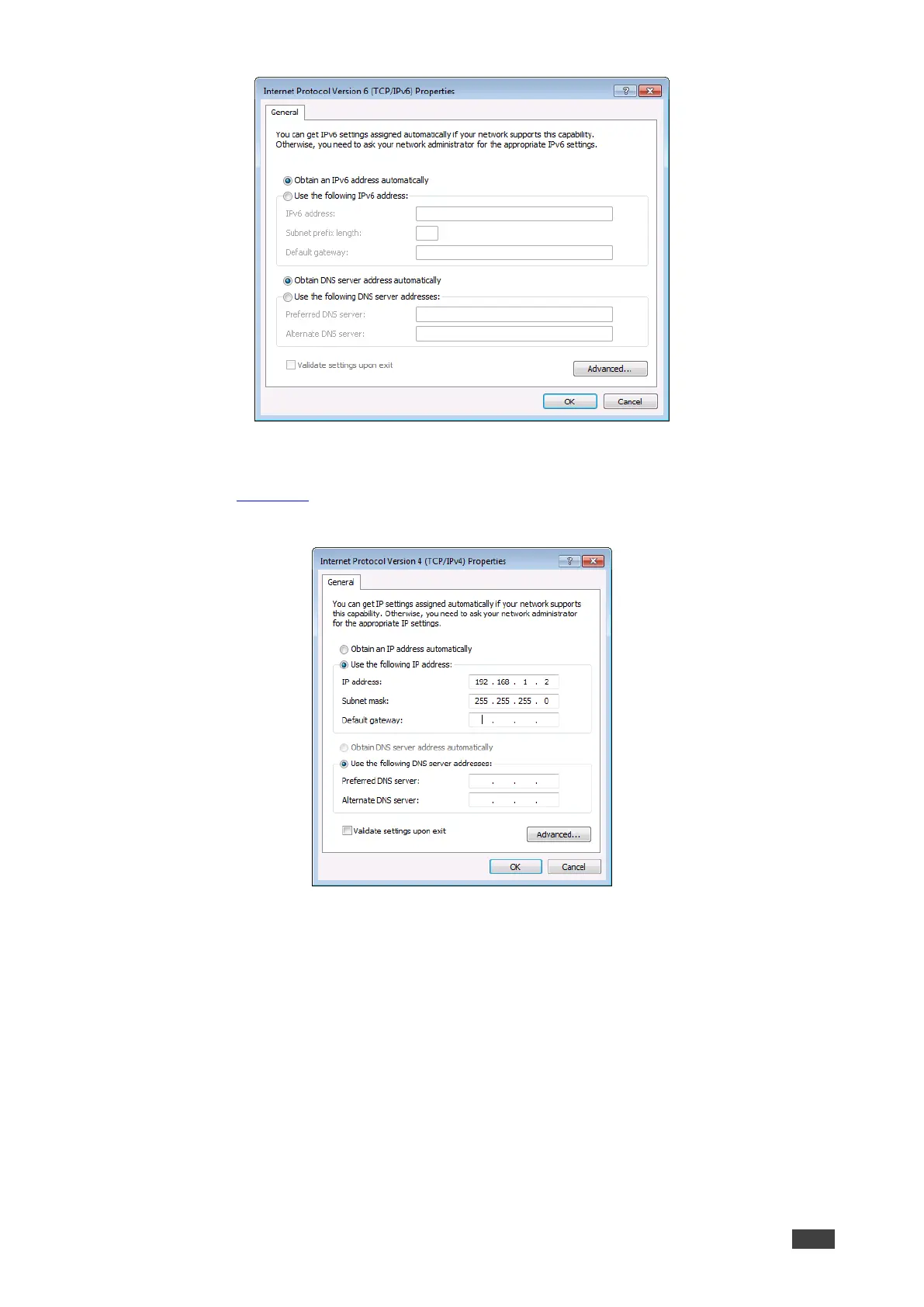

Figure 11: Internet Protocol Version 6 Properties Window
6. Select Use the following IP Address for static IP addressing and enter the details as
shown in Figure 12. For TCP/IPv4 you can use any IP address in the range 192.168.1.1
to 192.168.1.255 (excluding 192.168.1.39) that is provided by your IT department.
Figure 12: Internet Protocol Properties Window
7. Click OK.
8. Click Close.
Connecting Ethernet Port via a Network Hub or Switch
You can connect the device’s Ethernet port to the Ethernet port on a network hub or using a
straight-through cable with RJ-45 connectors.
Configuring Ethernet Port
You can set the Ethernet parameters via the embedded webpages.
