Using Post Matrix Equalizer Module
Use the Equalizer module to change the balance of different frequency components in the
audio signal.
To adjust the equalizer:
1. In the Navigation pane, click DSP. The DSP (Main) page appears.
2. Click EQ. The button turns orange and the Equalizer processing page appears.
3. Click the Off button . The Equalizer module turns on .

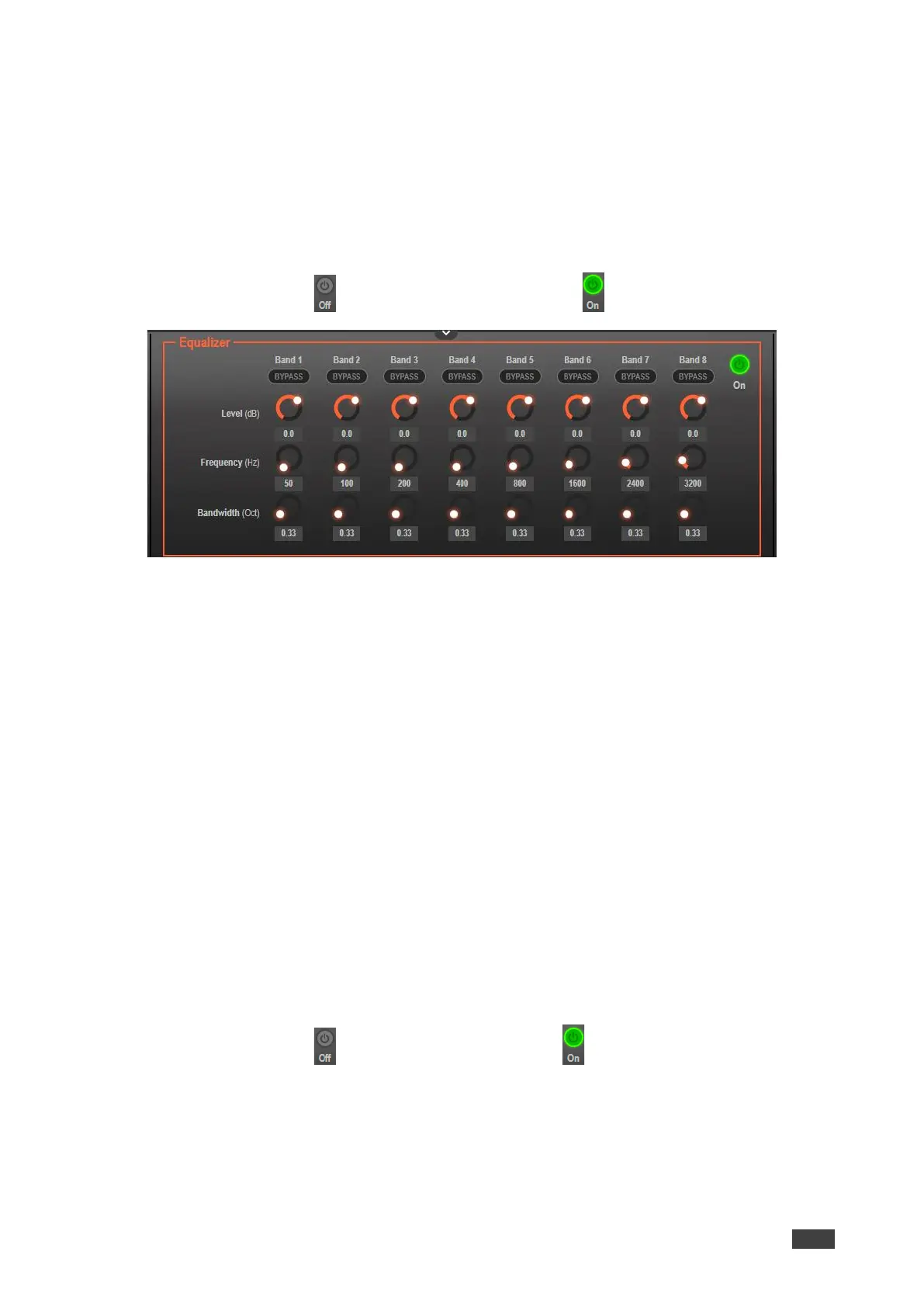

Figure 36: Processing View – Processing Output Equalizer
4. Perform the following actions for each of the 8 bands:
▪ Click BYPASS to ignore that band.
▪ Set the band frequency (Hz).
▪ Set the audio level (dB).
▪ Set the bandwidth (Oct).
Equalizer settings are adjusted.
Using Limit Module
Use the Limiter tool to limit the signal level to the specified threshold, reducing the gain above
the threshold. A limiter can boost the volume of a certain sound.
To adjust the limiter:
1. In the Navigation pane, click DSP. The DSP (Main) page appears.
2. Click Limit. The button turns purple and the Limiter processing page appears.
The right side shows the output volume slider.
3. Click the Off button . The Limiter module turns on .
4. Set the Threshold.
Note the Gain Reduction meter as you change the threshold.
Limiter settings are adjusted.
