FC-18 – Using the Embedded Web Pages
47
Controlling FC-18 via RS-232
Control FC-18 by connecting a laptop or controller to the RS-232 port.

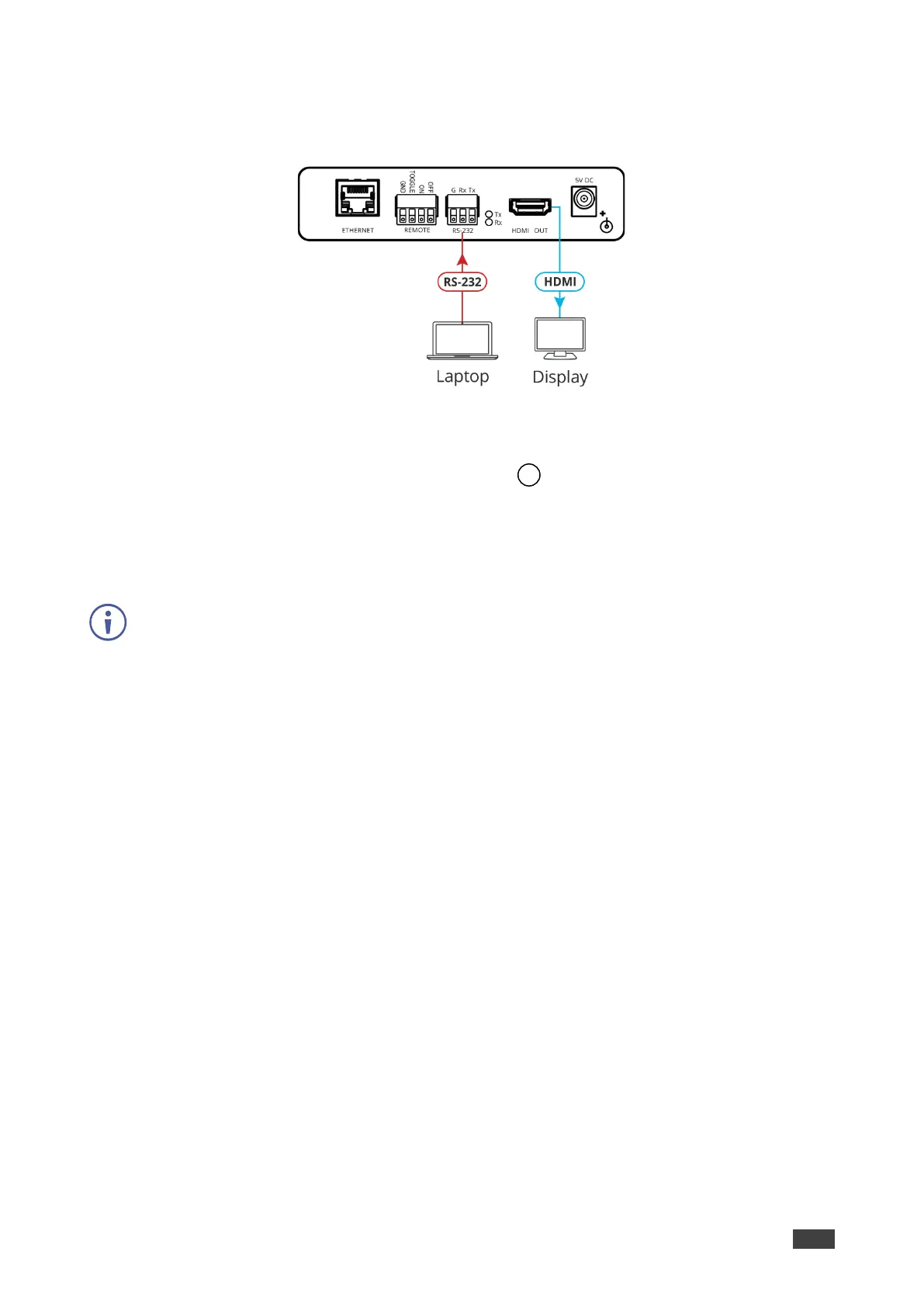

Figure 69: Controlling FC-18 via RS-232 Port
To control the device:
1. Connect a controller to the FC-18 RS-232 port to control the device.
2. In the Navigation pane, click RS-232 & Remote. The RS-232 & Remote page appears.
3. Check Port Definition to FC-18 Control.
4. Send protocol commands to control the device.
When sending the FC-18 CEC command, that command is sent via the HDMI connector to
the display.
The device is controlled via RS-232.
