FC-18 – Using the Embedded Web Pages
45
Setting RS-232 Port and Toggle Remote Switch
Functions
Define the function of the RS-232 port and the TOGGLE remote switch on the FC-18, using
the RS-232 & Remote page.
Setting the Toggle Pin Function
To set the Toggle pin function:
1. In the Navigation pane, click RS-232 & Remote. The RS-232 & Remote page appears.

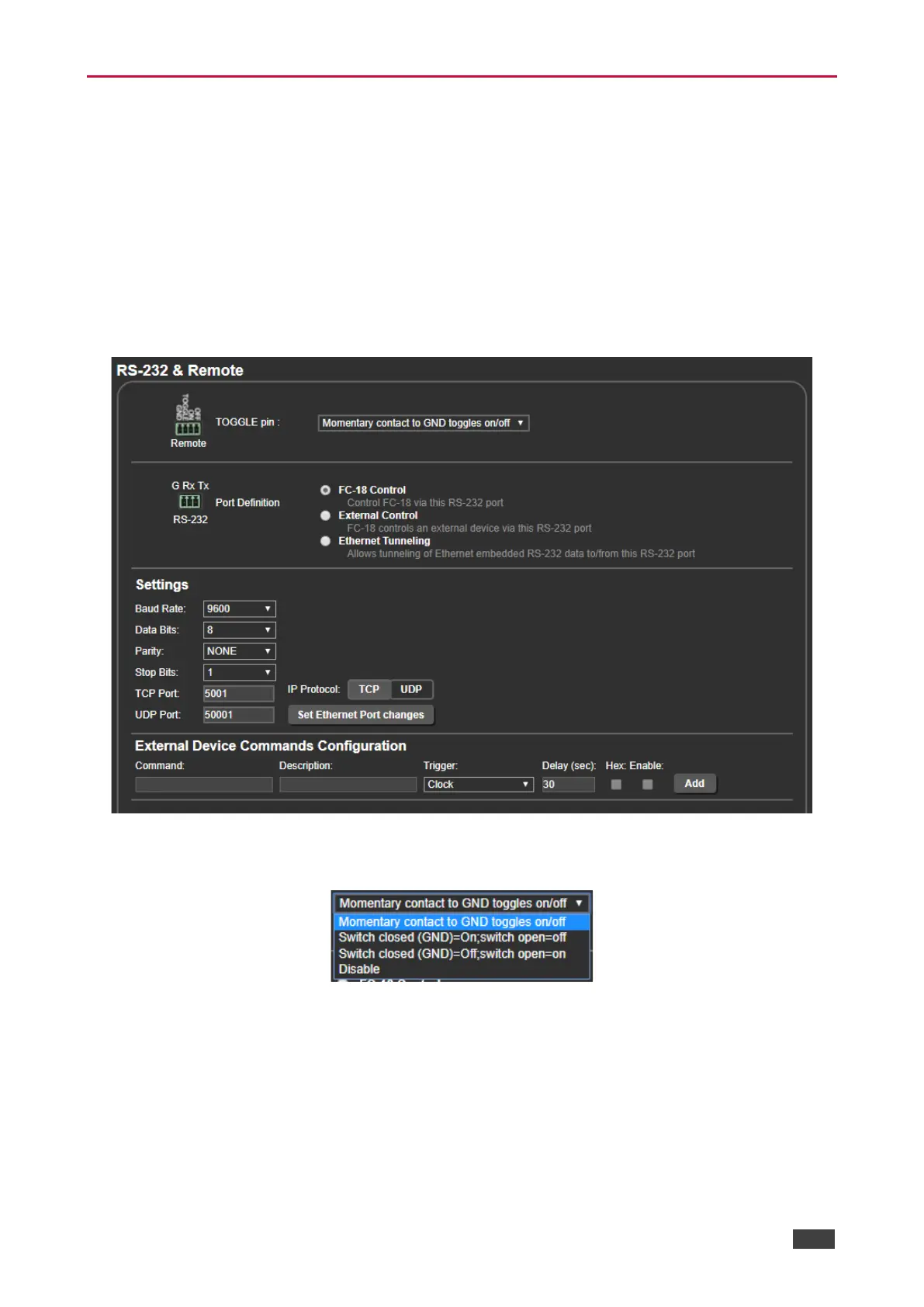

Figure 66: RS-232 & Remote Page
2. Open the TOGGLE pin drop-down box.
Figure 67: TOGGLE Pin Options
3. Select one of the following:
▪ Momentary Contact to GND toggles on/off – momentary contact changes the
on/off status of the display.
▪ Switch Closed (GND)=on; switch open=off – when connected to GND the display
is on and when disconnected, the display is off.
▪ Switch Closed (GND)=off; switch open=on – when connected to GND the display
is off and when disconnected, the display is on.
