5. Click Add.

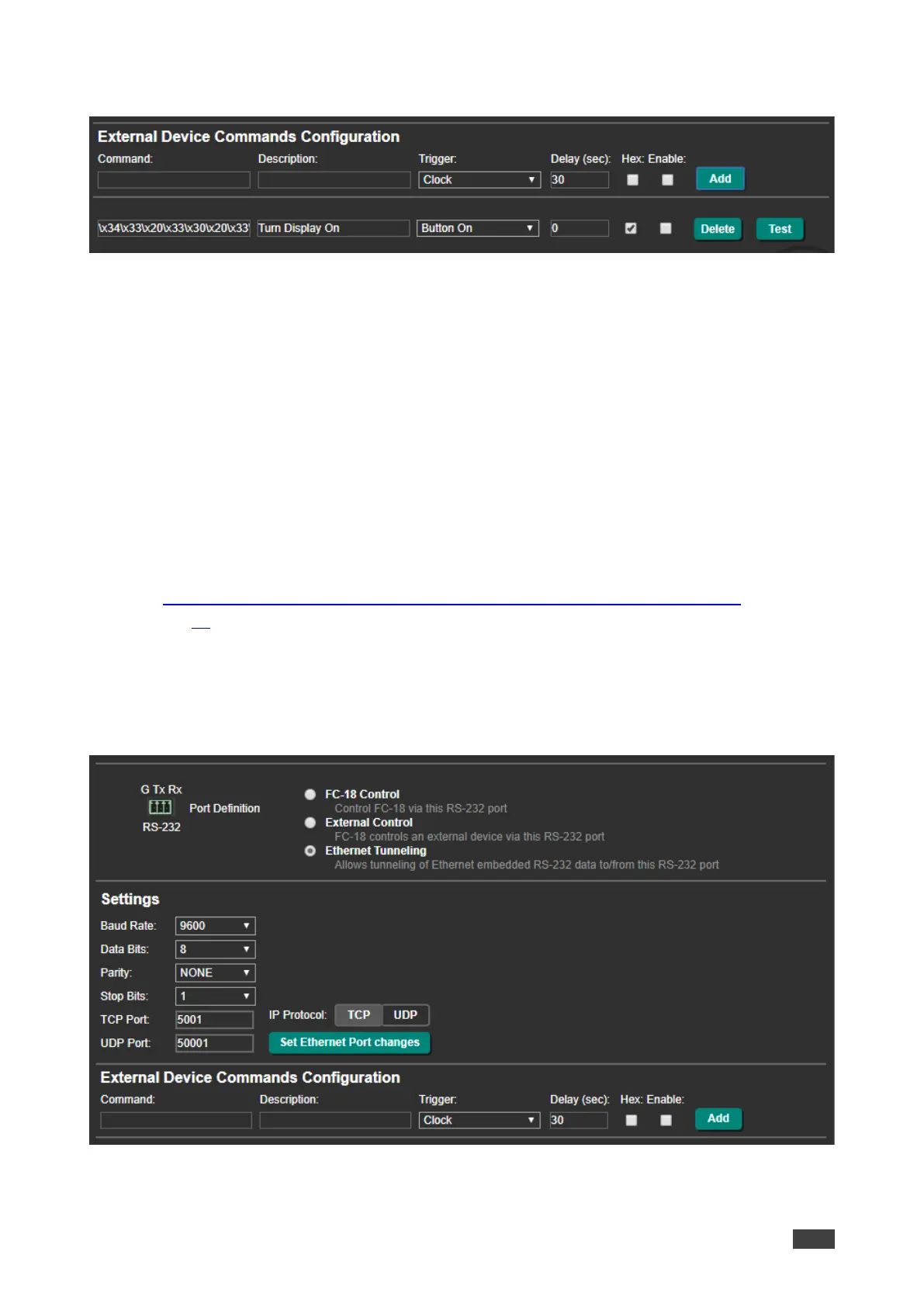

Figure 72: RS-232 Page – Command Added
6. You can:
▪ Click Delete to delete the command.
▪ Click Test to test the command.
▪ Change any of the command configurations.
▪ Enable or disable the command.
Control the display via the RS-232 port.
Tunneling via Ethernet
When selecting Ethernet tunneling, you can send commands via Ethernet, allowing
embedded RS-232 data to be tunneled between the Ethernet port and the RS-232 port
(see Controlling the Display using Ethernet (Sending to the Display’s RS-232 Port)
on page 22).
To send commands to the RS-232 connector via Ethernet tunneling:
1. In the Navigation pane, click RS-232 & Remote. The RS-232 & Remote page appears.
2. Check Ethernet Tunneling.
Figure 73: RS-232 Page – Tunneling via Ethernet
3. Enter the display communication settings (to enable communication with the display).
