Kramer KDS-8-MNGR User Manual

Kramer Electronics Ltd.
KDS-8-MNGR – Connecting KDS-8-MNGR
8

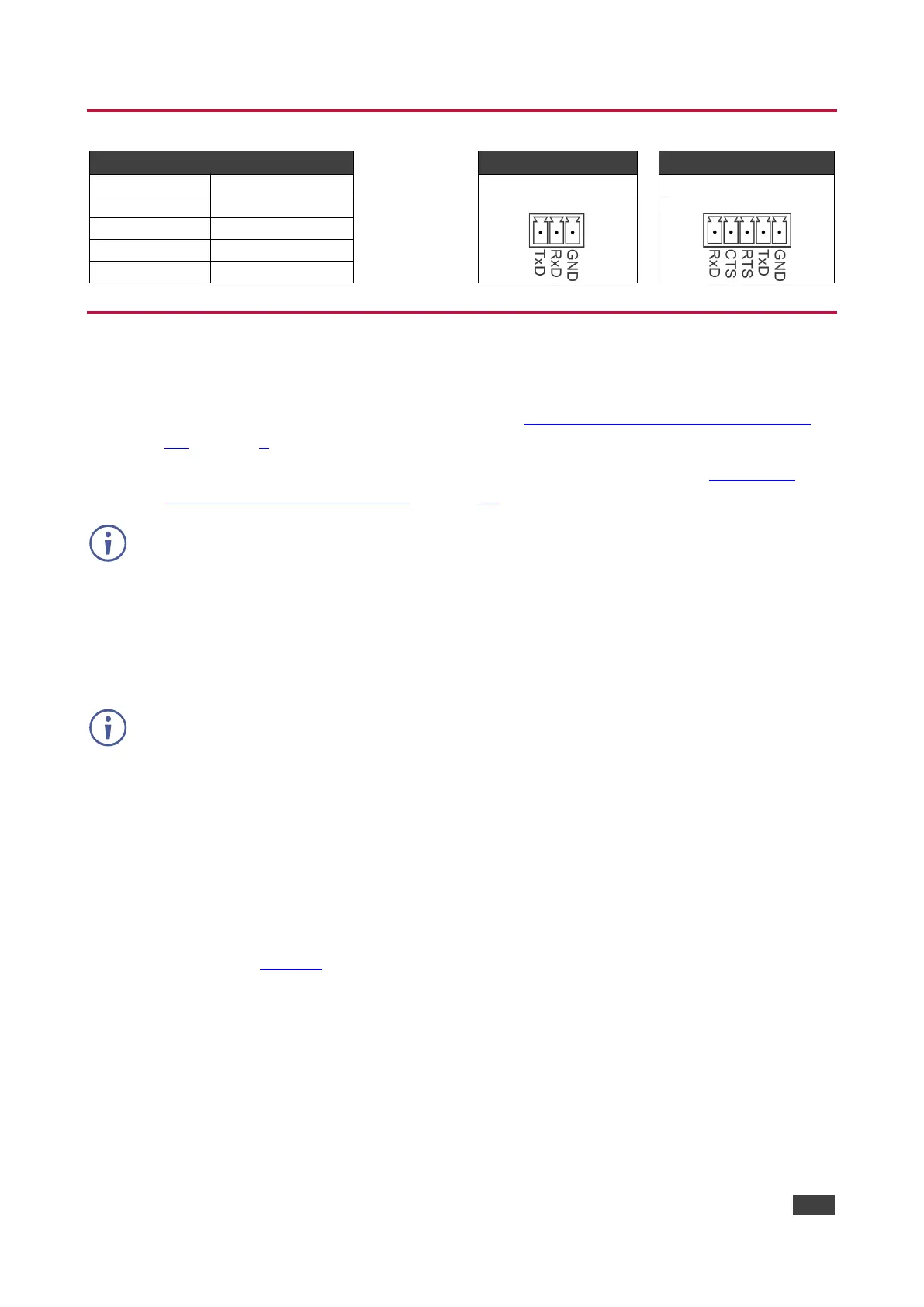

RS-232 Pinout and Defaults
Serial Port Default Settings
Unit Control
Serial Output
Baud Rate
19200
3-pin Terminal Block
5-pin Terminal Block
Data Bits
8
Parity Bits
None
Stop Bits
1
Flow Control
None
Operating via Ethernet
You can connect to KDS-8-MNGR via Ethernet using either of the following methods:
• Directly to the PC using a crossover cable (see Connecting Ethernet Port Directly to a
PC on page 8).
• Via a network hub, switch, or router, using a straight-through cable (see Connecting
Ethernet Port via a Network Hub on page 10).
If you want to connect via a router and your IT system is based on IPv6, speak to your IT
department for specific installation instructions.
Connecting Ethernet Port Directly to a PC
You can connect the Ethernet port of KDS-8-MNGR directly to the Ethernet port on your PC
using a crossover cable with RJ-45 connectors.
This type of connection is recommended for identifying KDS-8-MNGR with the factory
configured default fallback IP address.
After connecting KDS-8-MNGR to the Ethernet port, configure your PC as follows:
1. Click Start > Control Panel > Network and Sharing Center.
2. Click Change Adapter Settings.
3. Highlight the network adapter you want to use to connect to the device and click Change
settings of this connection.
The Local Area Connection Properties window for the selected network adapter appears
as shown in Figure 4.
