Kramer Electronics Ltd.
VW-4 Connecting VW-4
9

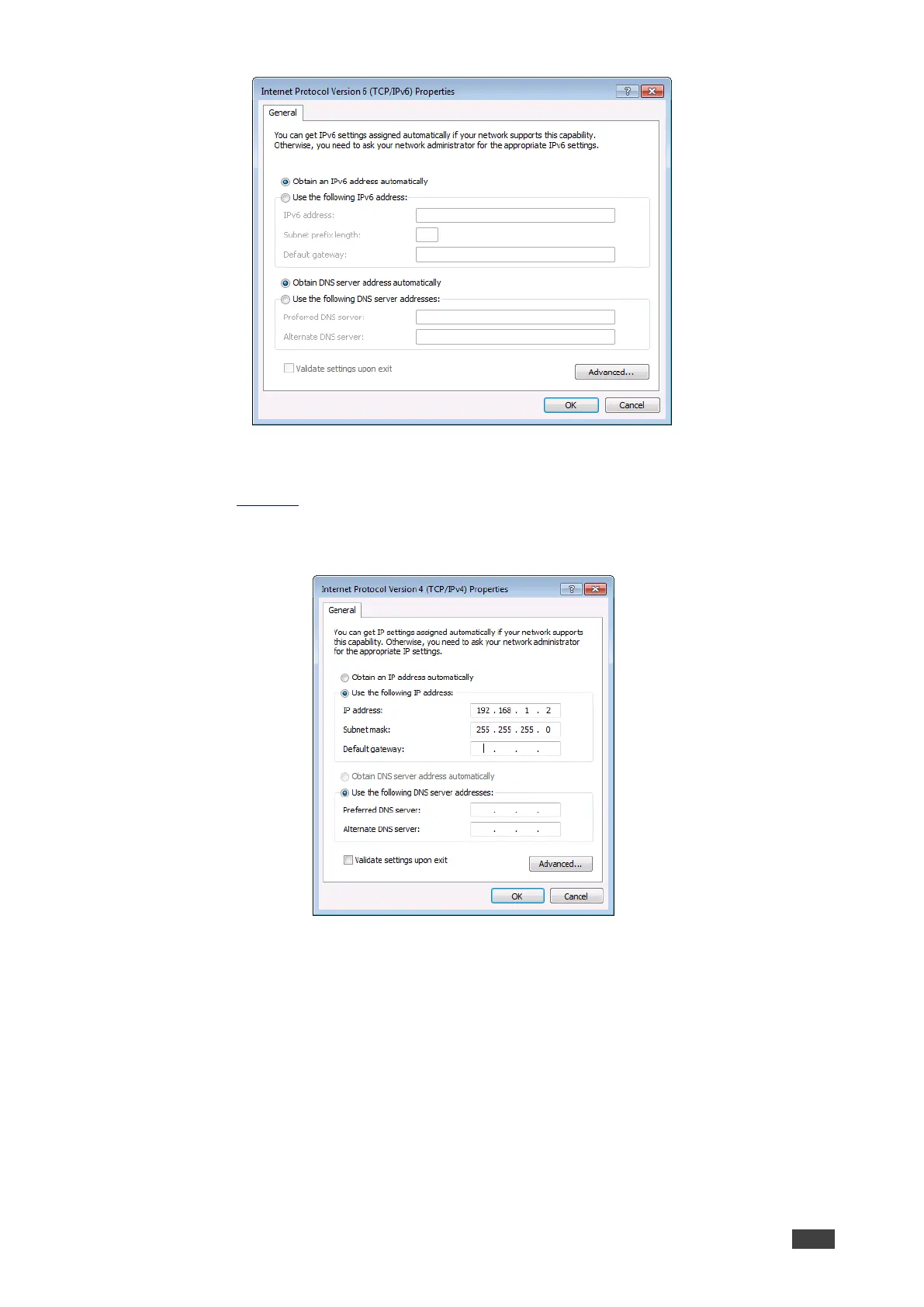

Figure 5: Internet Protocol Version 6 Properties Window
6. Select Use the following IP Address for static IP addressing and fill in the details as
shown in Figure 6.
For TCP/IPv4 you can use any IP address in the range 192.168.1.1 to 192.168.1.255
(excluding 192.168.1.39) that is provided by your IT department.
Figure 6: Internet Protocol Properties Window
7. Click OK.
8. Click Close.
Connecting Ethernet Port via Network Hub or Switch
You can connect the Ethernet port of VW-4 to the Ethernet port on a network hub or using a
straight-through cable with RJ-45 connectors.
Configuring Ethernet Port
You can set the Ethernet parameters via the embedded webpages.

Other manuals for Kramer VW-4

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Kramer VW-4 and is the answer not in the manual?

Kramer VW-4 Specifications

General IconGeneral
Product colorBlack
Built-in displayNo
RS-232/422 connectorYes
HDMI input ports quantity1
HDMI output ports quantity5
Storage temperature (T-T)-20 - 70 °C
Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)10 - 90 %
HDCP version2.2
Maximum refresh rate60 Hz
Input voltage5 V
Power supply locationExternal
Weight and Dimensions IconWeight and Dimensions
Depth195 mm
Width190 mm
Height27 mm
Weight900 g
Package depth212 mm
Package width351 mm
Package height72 mm
Package weight1400 g
