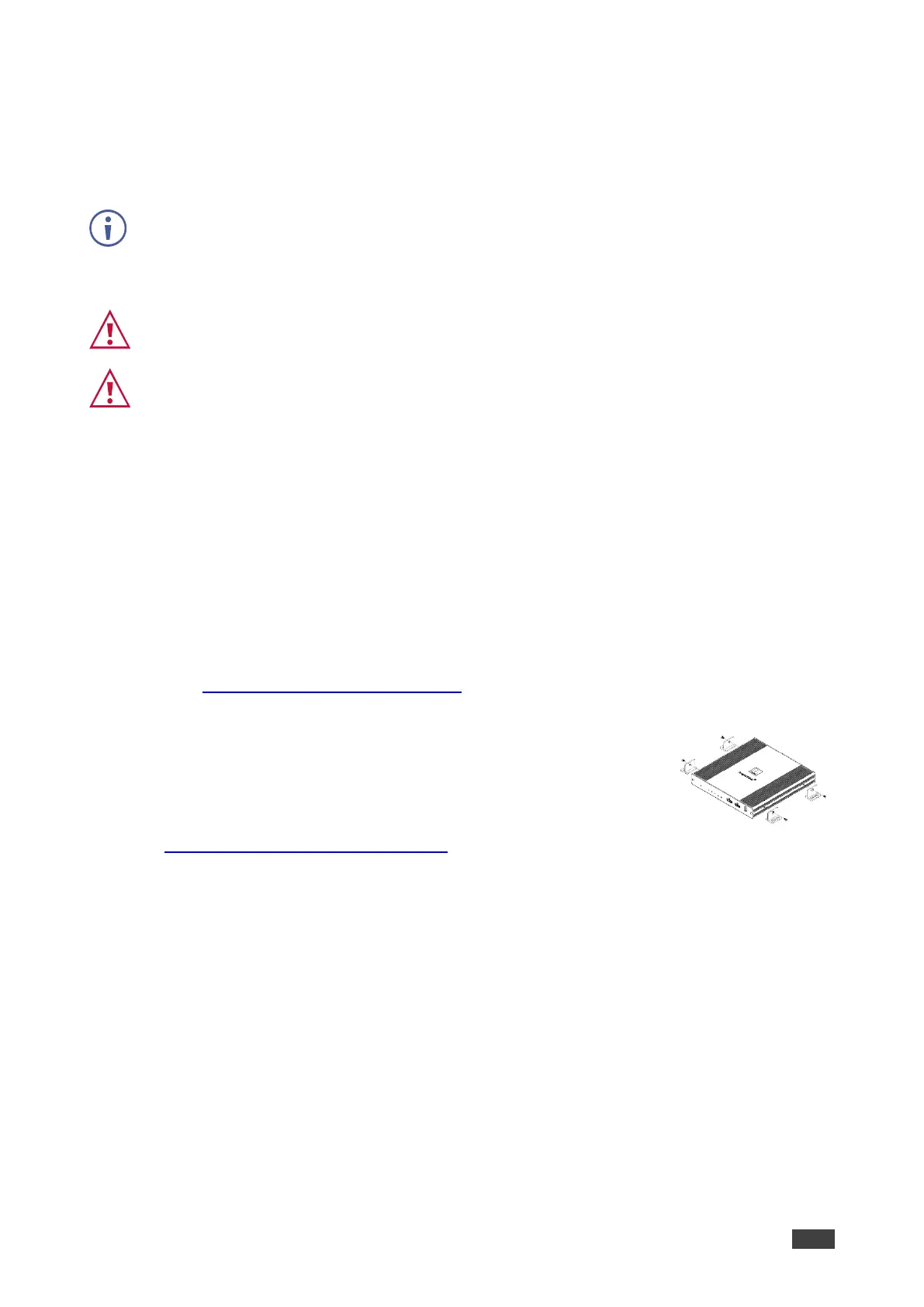

VW-4 – Mounting VW-4
5
Mounting VW-4
This section provides instructions for mounting VW-4. Before installing, verify that the
environment is within the recommended range:
• Operation temperature – 0 to 40C (32 to 104F).
• Storage temperature – -40 to +70C (-40 to +158F).
• Humidity – 10% to 90%, RHL non-condensing.
Caution:
• Mount VW-4 before connecting any cables or power.
Warning:
• Ensure that the environment (e.g., maximum ambient temperature & air flow) is
compatible for the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be used for avoiding
overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.
• Maximum mounting height for the device is 2 meters.
Mount VW-4 in a rack:
• Use the recommended rack adapter
(see www.kramerav.com/product/VW-4).
Mount VW-4 on a surface using one of the following methods:
• Attach the rubber feet and place the unit on a flat surface.
• Fasten 2 brackets (included) on each side of the unit and attach
them to a flat surface. For more information go to
www.kramerav.com/downloads/VW-4.

Kramer VW-4 Specifications

General

Product color	Black
Built-in display	No
RS-232/422 connector	Yes
HDMI input ports quantity	1
HDMI output ports quantity	5
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
HDCP version	2.2
Maximum refresh rate	60 Hz
Input voltage	5 V
Power supply location	External

Weight and Dimensions

Depth	195 mm
Width	190 mm
Height	27 mm
Weight	900 g
Package depth	212 mm
Package width	351 mm
Package height	72 mm
Package weight	1400 g
