Application > Examples of application

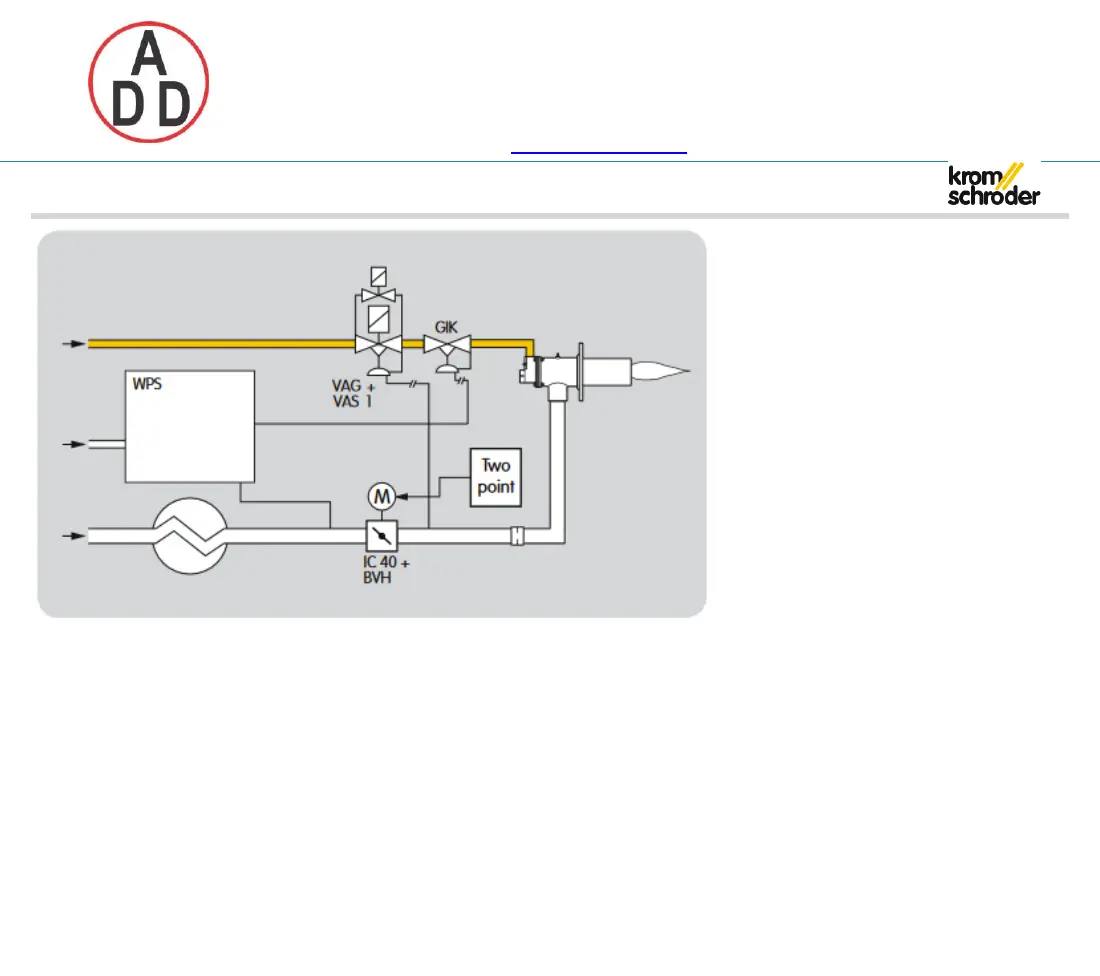

1.1.9 IC 40, hot-air compensation
For processes in which preheated
combustion air at a temperature of
up to 450°C must be controlled. In this
example, the actuator IC 40 is
regulated by a two-point controller to
adjust the burner capacity. It runs in
High/Low intermittent mode. The
running time can be adjusted
between 5 and 25 seconds.
