IC 40 function > Standard operating modes 1 – 12
4.5.10 3-point step operation with running time
fractions

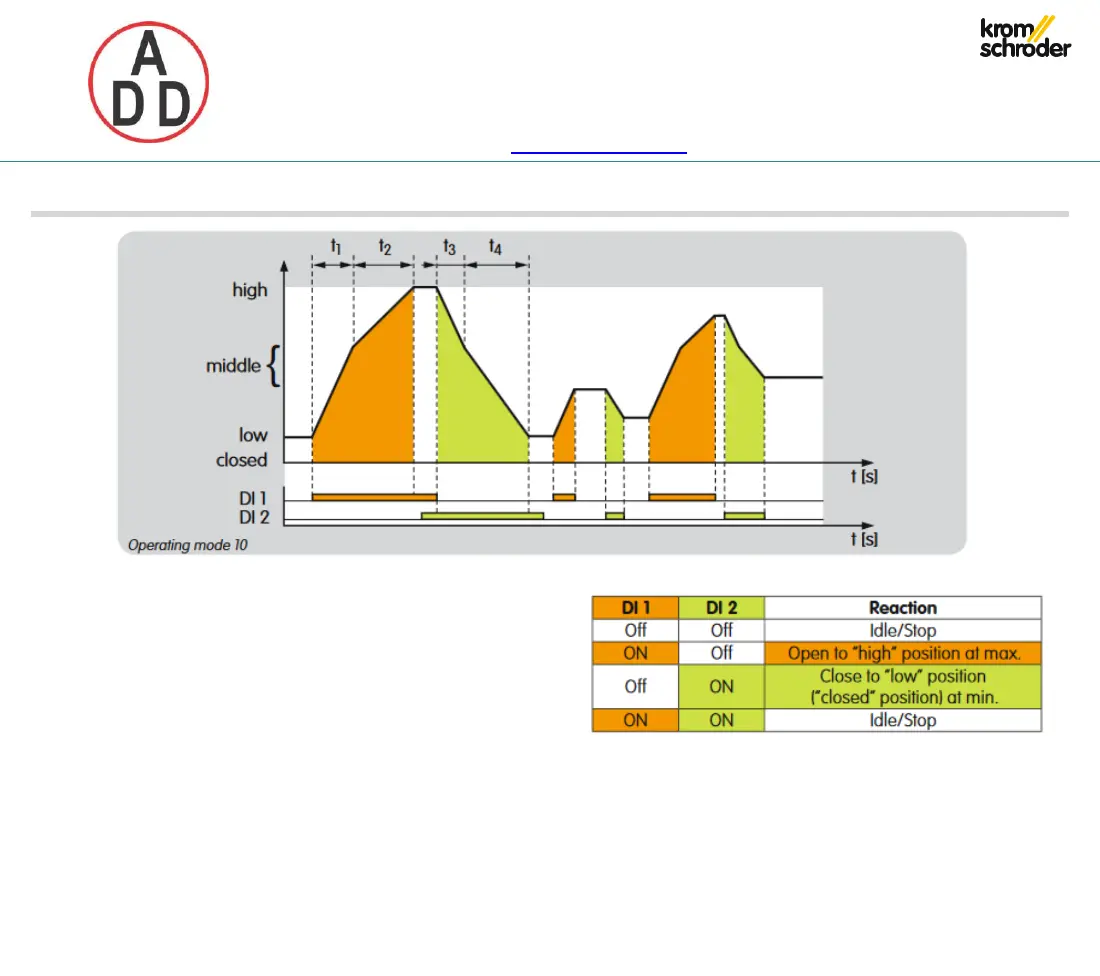

Operating mode 10
If only digital input DI 1 is active, the actuator opens. If only
digital input DI 2 is active, the actuator closes.
If none of the two digital inputs or both digital inputs is or
are active simultaneously, the actuator stops in its position.
The actuator can be stopped in any position.
The actuator operates in continuous mode and is
controlled via a 3-point step signal.
The actuating function is limited by the “low” and “high”
positions (“low” position may also be 0° = “closed” position)
36
