IC 40 function
4.5 Standard operating modes 1 – 12
General description, see page 22 (Operating modes).
4 .5.1 2-point operation

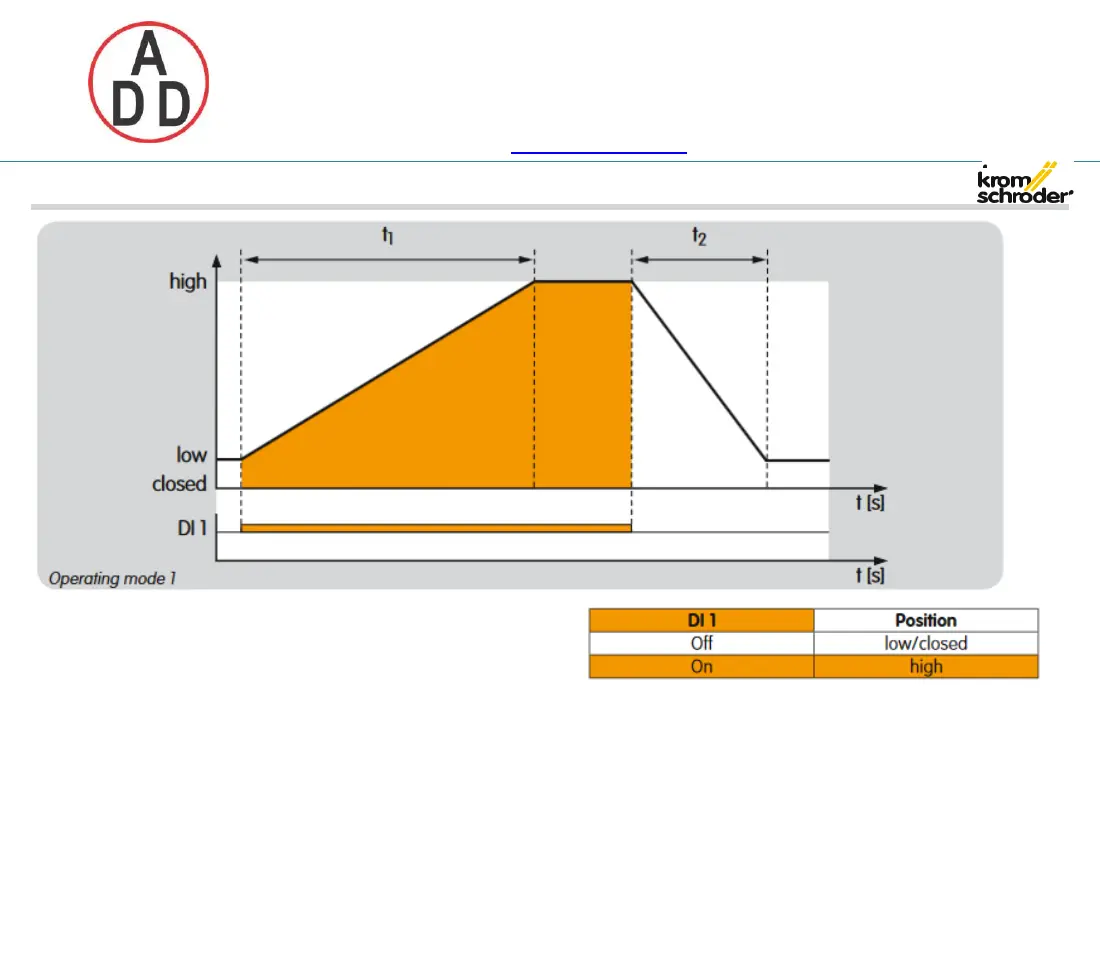

Operating mode 1
In idle state (DI 1 with no signal), the actuator is in “low”
position
(“low” position may also be 0° = “closed” position).
If a signal is applied to digital input DI 1, the actuator
moves
to “high” position in running time t1. As the signal at digital
input DI 1 drops, the actuator moves back to “low”
position in
running time t2
If the signal at digital input DI 1 is deactivated before
“high”
position is reached, the actuator moves directly to “low”
position in the percentage time of t2.
The actuator operates in high/low (high/closed)
intermittent mode.
Possible parameter sets for this operating mode:
P 68017, P 68018 and P 68019, see page 54 (Parameter
sets).
