IC 40 function > Analogue operating modes 21 – 27

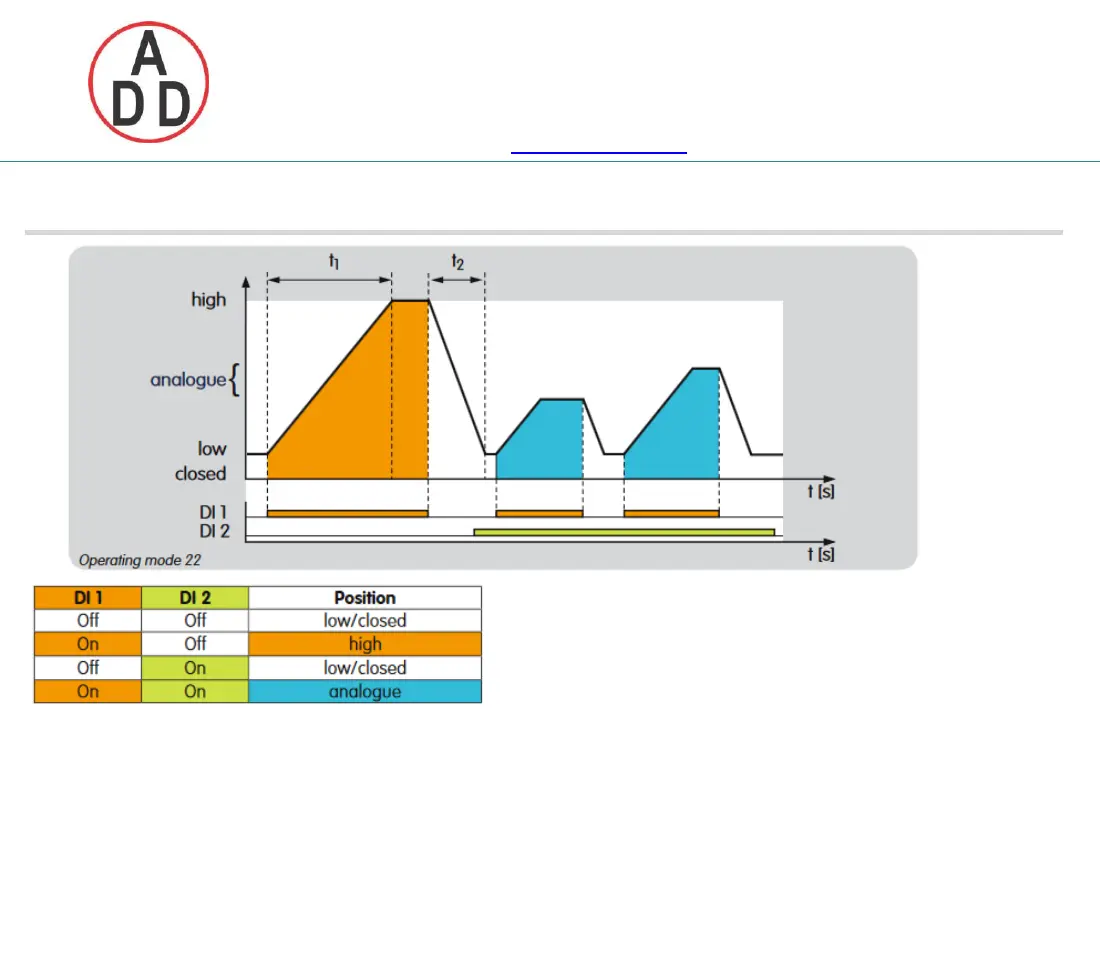

> 2-point operation with switchover of the adjustment angle for the “open” position
The opening speed is pre-set via the time t1 for the entire
“low” to “high” actuating travel.
Accordingly, the closing speed is set with t2 for the entire
“high” to “low” actuating travel.
The speeds are retained in both intermittent modes. The
running times are changed accordingly if the
“analogue” position (current signal) is moved. The
“analogue” position may also be higher than the “high”
position in this operating mode.
Possible parameter set for this operating mode:
P 68027, see page 54 (Parameter sets). 43
