5.3 Mounting onto the Tractor
Pos: 14.10 /Übersc hriften/Überschrif ten 3/K-O/K uppelpunkte @ 9\mod_12205313 26398_78.doc x@ 126608 @ 2 2@ 1
5.3.1 Clutching points
Pos: 14.11 /BA/I nbetriebnahme/ Erstinbetriebna hme/EasyCut/K uppelpunkte/Ku ppelpunkte Bild EC 320 - 1 @ 58\m od_12967406298 43_78.docx @ 554037 @ @ 1
II
POS.1
1
1
EC-346-0
POS.1 POS.2 POS.2
I
Fig. 3
Pos: 14.12 /BA/I nbetriebnahme/ Erstinbetriebna hme/EasyCut/K uppelpunkte/Ku ppelpunkte Te xtEC 320 - 1 @ 58\mo d_129706381 7994_78.docx @ 554787 @ 2 @ 1

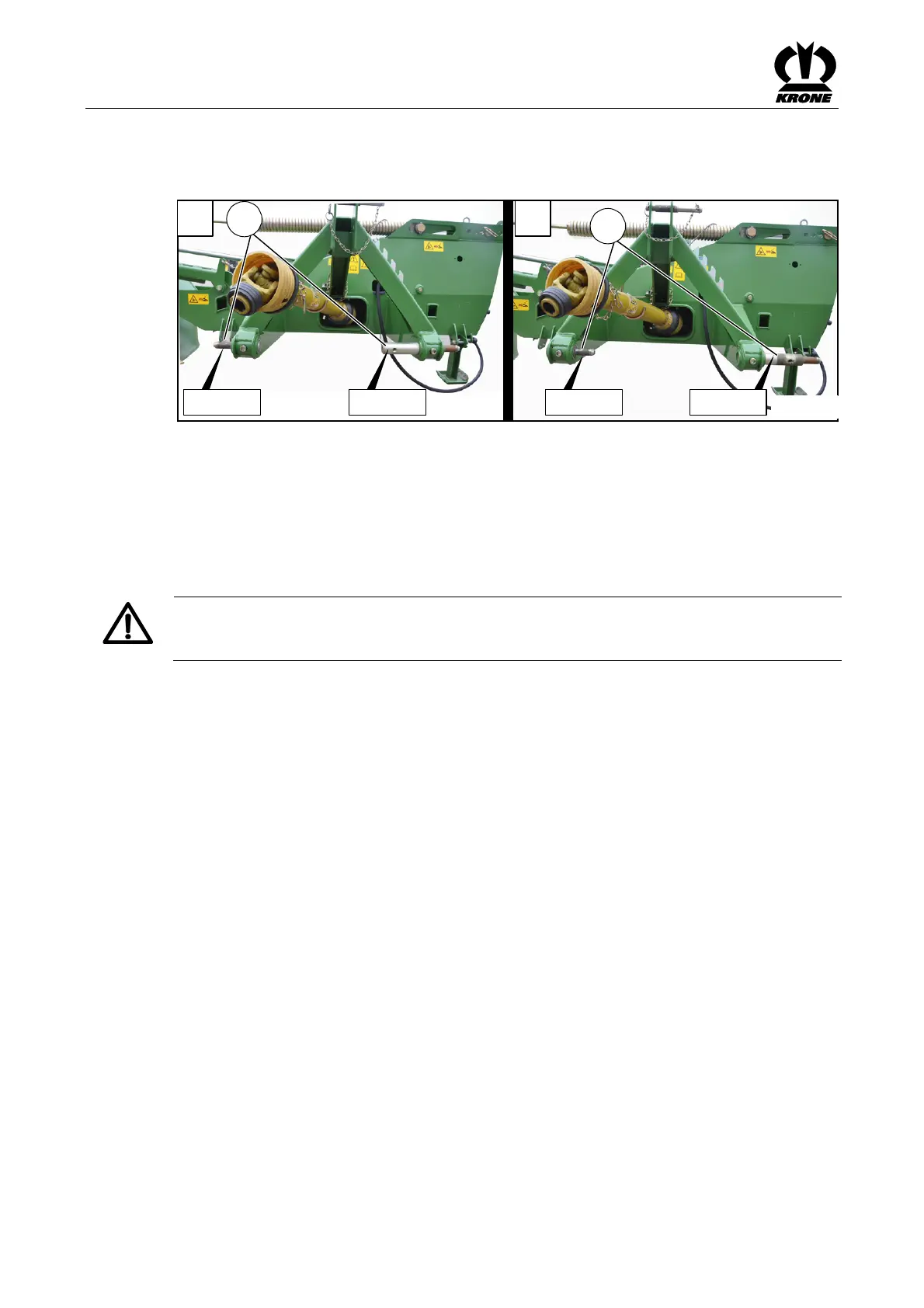

There are 2 possibilities for attaching the mowing unit.
I)
The steerable pinions are designed according to cat. II. Normally, the mowing unit is hooked to
the tractor in pos. 1. When using broad tractors or when working in combination with front
mowing units (working width of approx. 2.8 - 3.2 m), the mowing unit should be attached at pos.
2.
Pos: 14.13 /BA/I nbetriebnahme/„Q uick-Hitch Ra hmen“ @ 46\ mod_128144269228 1_78.docx @ 4 44458 @ @ 1
CAUTION!
Only assemble the machine directly to the three-point suspension of the tractor.
It is not permitted to assemble the machine to a "Quick-Hitch frame“ (U-frame coupler).
Pos: 14.14 /BA/--- ------ ------Seitenumbruch---- ------------ @ 0\m od_1196175311 226_0.docx @ 4 165 @ @ 1
