Krone EasyCut R 280 - Parking Support Adjustment for Transport

Start-up
31
Pos: 16.36 /Übersc hriften/Überschrif ten 2/A-E/A bstellstütze in Tra nsportstellu ng schwenken @ 10\mod_1221637 347634_78.doc x @ 135539 @ 3 333 @ 1
6.6 Swivelling parking support into transport position
Pos: 16.37 /BA/Be dienung /Eas yCut/Abstellstütze /Abstellstütze angehoben Bild EC 320 - 1 @ 58\mod_ 129666028734 4_78.docx @ 5 52967 @ @ 1
EC-333-0
1
2
2
1

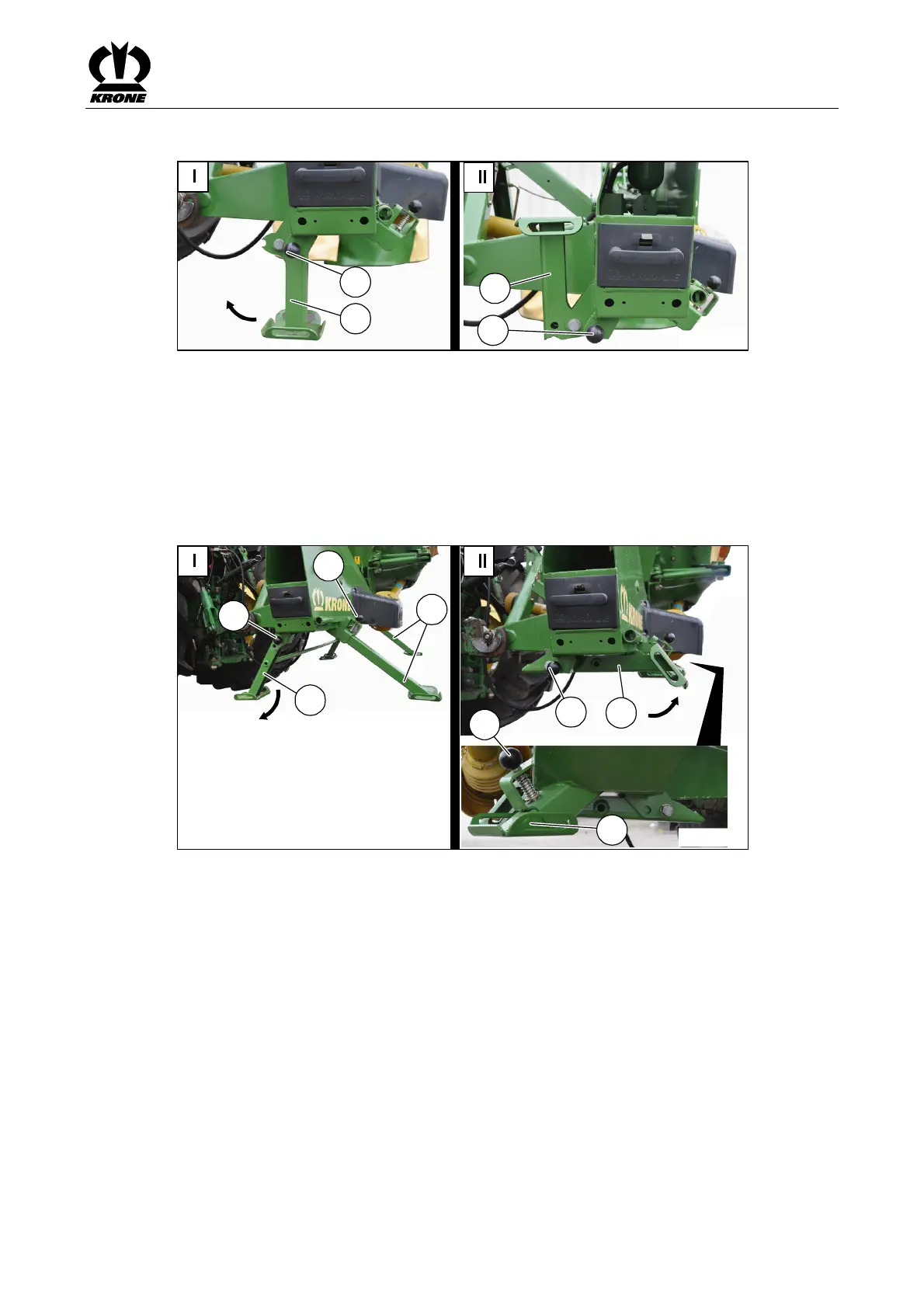

Fig. 10
Pos: 16.38 /BA/Be dienung /Eas yCut/Abstellstütze /Abstellpositi on/Transportst ellung @ 58\mod _1296660164 314_78.doc x@ 552939@ @1
I) Parking position II) Transport position
Pos: 16.39 /BA/Be dienung /Eas yCut/Abstellstütze /Abstellstütze i nTr ansportstellu ng schwenke n@ 12\mod_122 3983226897_ 78.docx @ 149837 @ 2 @ 1
After the machine is attached, swivel the parking support into transport position.
• Use the three-point hydraulic system to raise the parking support somewhat.
• Swivel the parking support (2) into transport position and lock it in place with the bolt (1).
Pos: 16.40 /BA/Be dienung /Eas yCut/Abstellstütze /Vier Stütz en( optional) Übersc hrift @ 58\mo d_129681672 3926_78.docx @ 5 54520 @ @ 1
6.6.1 Four supports (optional)
Pos: 16.41 /BA/Be dienung /Eas yCut/Abstellstütze /Vier Stütz ena ngehoben Bild EC 320 Neue Ge neration @ 58\ mod_12968167 97691_78.doc x @ 554548 @ 2@ 1
1
2
1
2
3
EC-349-0
1
3
1
Fig. 11
Pos: 16.42 /BA/Be dienung /Eas yCut/Abstellstütze /Abstellpositi on/Transportst ellung @ 58\mod _1296660164 314_78.doc x@ 552939@ @1
I) Parking position II) Transport position
Pos: 16.43 /BA/Be dienung /Eas yCut/Abstellstütze /Abstellstütze i nTr ansportstellu ng schwenke n( vier Stütze n)@ 58\mod_12968 17239673_78.d ocx @ 554602 @ @ 1
After the machine is attached, swivel the parking supports into transport position.
• Use the three-point hydraulic system to raise the parking support somewhat.
• Swivel the front parking support (2) back for transport and lock it in place with the bolt (1).
• Push the rear parking supports (3) completely in for transport and lock them in place with
the bolt (1).
