10.10 Checking the Cutter Blades and Blade Holder
Pos: 24.33.2 /B A/Sicherheit/Gefa hrenhinweise/Mä hwerke/Gef ahr- F ehlende u nd beschädigt eMä hklingen un dM ähklingenhalt erungen @ 0\m od_1197265722 813_78.docx @ 16342 @ 22 @ 1
Warning! - Missing and damaged cutter blades and cutter blade retainers.
Effect: Danger to life, serious injuries or damage to the machine
• Check cutter blades at least once per day and check retaining bolts every time you
change the blades or after contact with foreign objects.
• Immediately replace missing or damaged cutter blades and cutter blade retainers
Pos: 24.33.3 /B A/Wartung/Mäh werke/Nach Bee ndigung Schutz in Schutzstellung bringen EC 320 Ne ue Generaton @ 58\mod_1296735 673222_78.doc x@ 553843 @ @ 1
2
Fig. 28

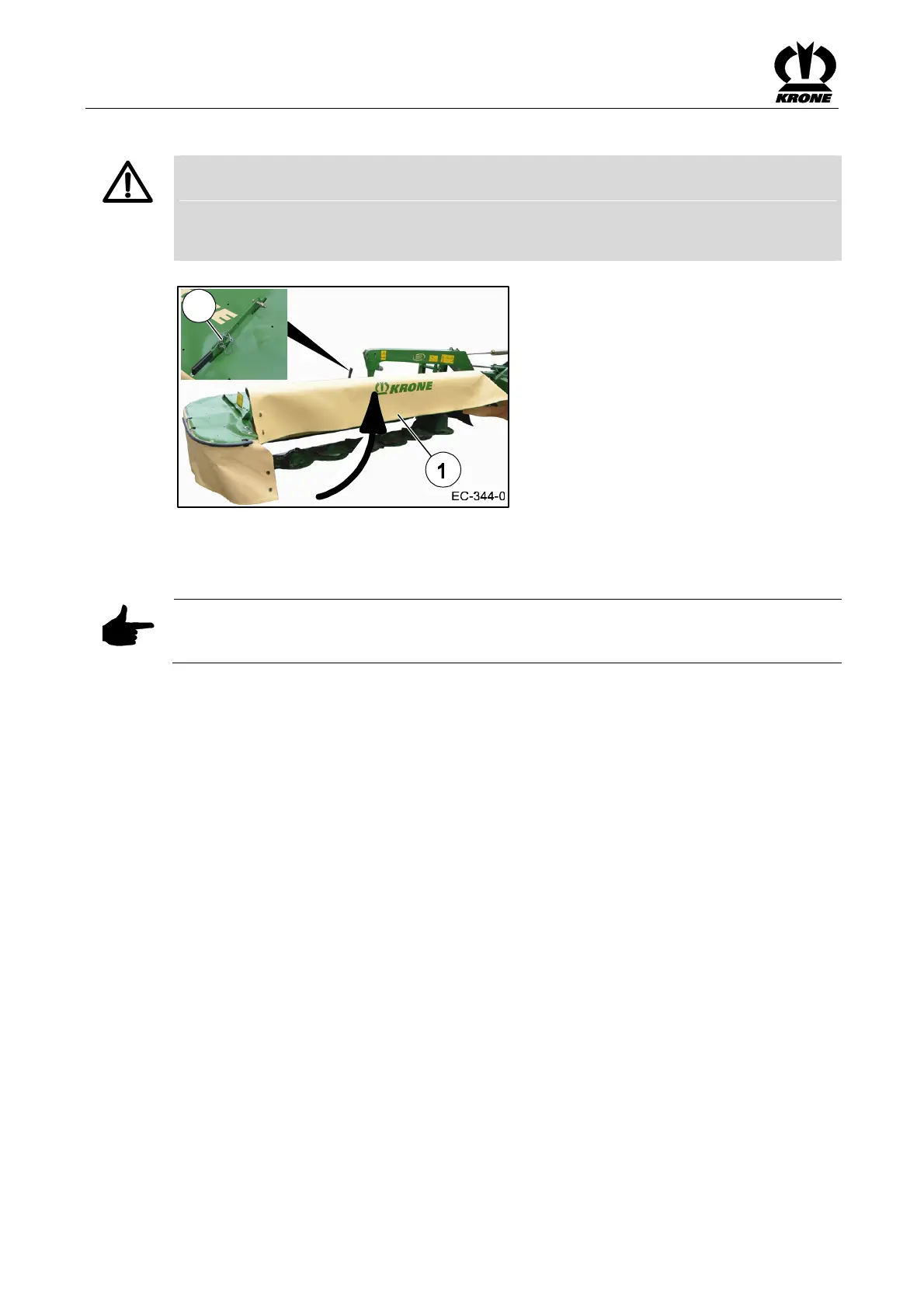

To inspect and fit the blades, fold up the protective device (1) and secure the lock with spring
cotter pin (2). Now you can access the blades.
Note
After the inspection and installation tasks are completed, move the protective device into its
protective position and lock it.
