13.3 Friction Clutch
Pos: 27.14 /BA/Sic herheit/Reibku pplung/Achtu ng - Manipulatio n an der Reibku pplung @ 3\m od_1204732138 258_78.docx @ 72825 @ @ 1
Caution! - Manipulation of the friction clutch
Effect: Serious damage to the machine
• Manipulation of the overload protection changes the slip torque. This will lead to a loss of
warranty claims! Original KRONE spare parts only may be used.
Pos: 27.15 /BA/Ei nlagerung/Rei bkupplung/Reib kupplung entlüft en @ 3\mod_ 1204732297351_ 78.docx @ 7 2885 @ 2 @ 1
EC-257-0
1
2

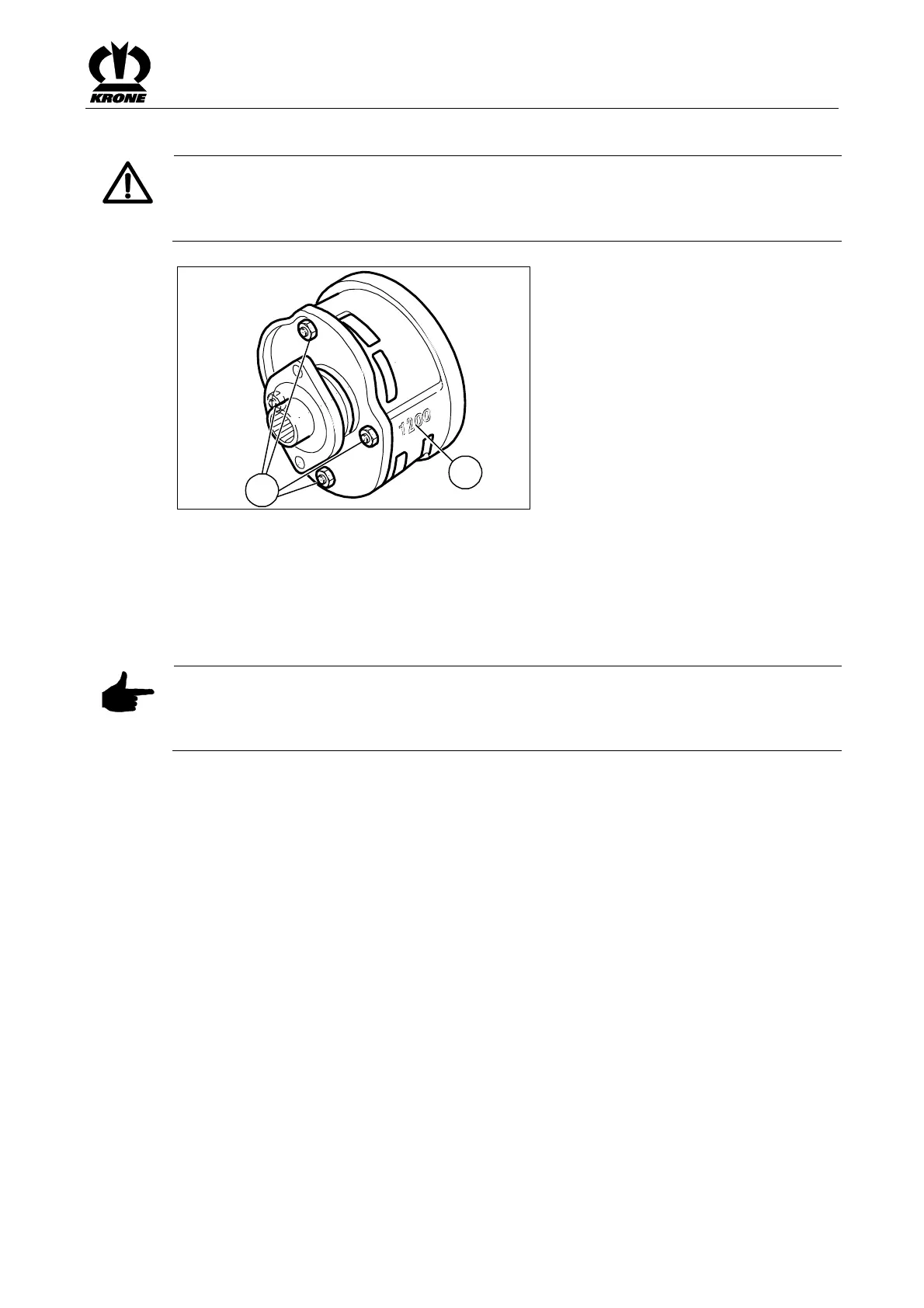

Fig. 43
The friction clutch protects the tractor and the machine against damage. It is designed with a
permanently adjusted turning torque MR. The torque is applied on the housing of the friction
clutch (2).
Venting the friction clutch
Tighten the four nuts (1). Block the machine and move the friction clutch manually to the point
where it slips through. Loosen the nuts again.
Pos: 27.16 /BA/I nbetriebnahme/ EasyCut/Hinweis R eibkupplung @ 11\mod_12233 58975938_78.d ocx @ 145593 @ @ 1
Note - Friction Clutch
Effect: Conserve functionality and increased service life
• The friction clutch (2) must be vented prior to commissioning and once a year prior to
harvesting. (See section Before new season "Friction clutch")
