10.13.1 After Shearing Off
Caution! - Correct installation position of the bearing housing not observed.
Effect: Damage to the machine
• Right rotating (RE/RZ) cutting discs and drums always have right-handed pinion shafts
and nuts (no groove mark on the pinion shaft and nut).
• Left rotating (LE/LZ) cutting discs and drums always have left-handed pinion shafts and
nuts (with groove mark on the pinion shaft and nut).
1
3
2
8
7
3
4
c
d
a
9
b
EC-255-0
10
3a
3a
3a

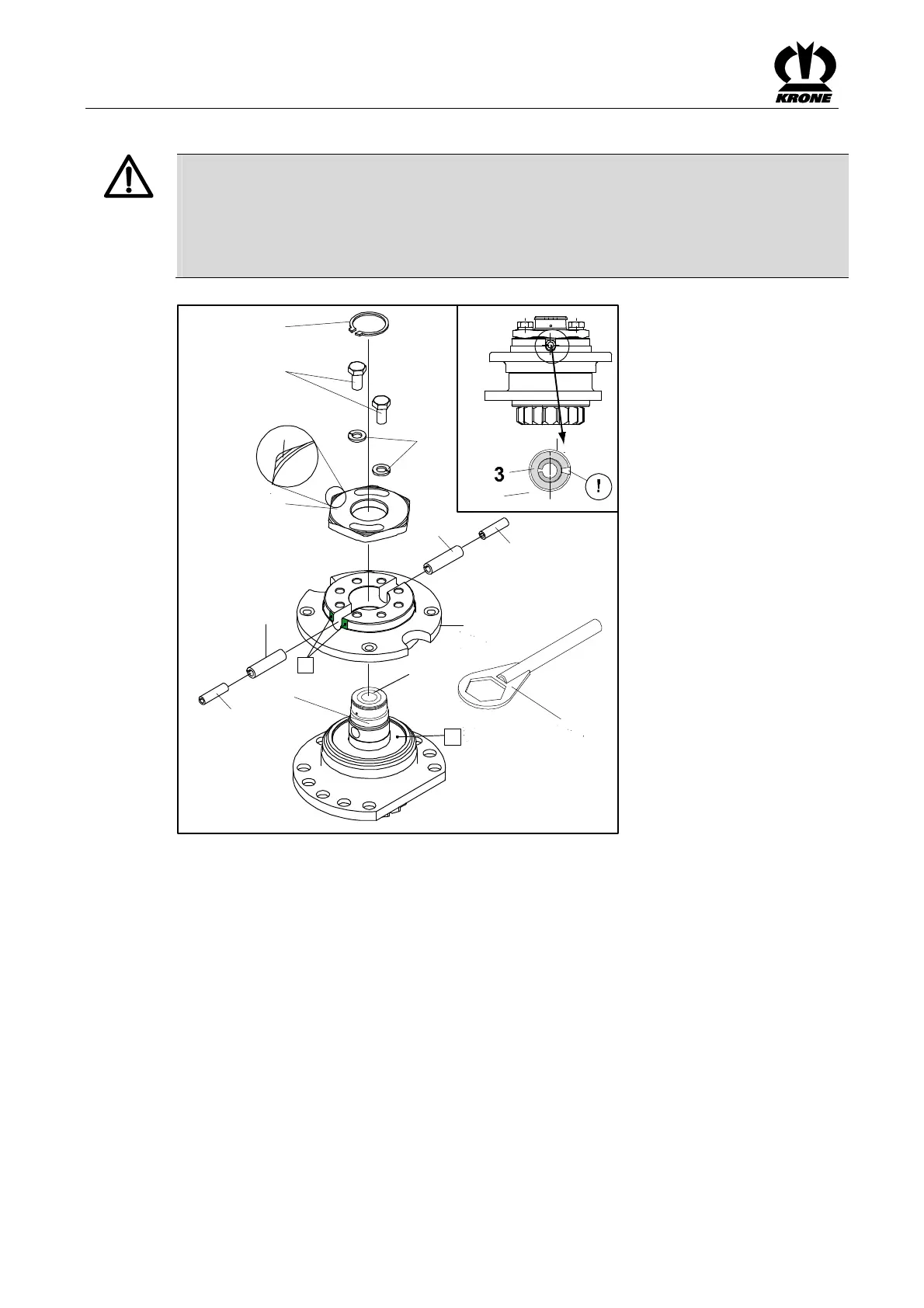

Fig. 40
