Maintenance
53
Pos: 24.33.5 /Üb erschriften/Üb erschriften 3/K-O/M ähklingen @ 0\mod_1197265959 110_78.doc x @ 16361 @ @ 1
10.10.1 Cutter Blades
Pos: 24.33.6 /B A/Wartung/Mäh werke/Die Bohrung derM ähklingen kannsi ch durch Versc hleiß aufweit en. @ 10\mo d_12210489827 15_78.docx @ 1 31675 @ @ 1
The borehole on the cutter blades may spread due to wear.
Pos: 24.33.7 /B A/Sicherheit/Gefa hrenhinweise/Mä hwerke/Gef ahr- Z ug eringe M aterialstärke ande nM ähklinge n_neu @ 3\mod_ 12047271678 98_78.docx @ 72 588 @ @ 1
Danger! - Insufficient thickness of material on the cutter blades.
Effect: Danger to life or serious injuries.

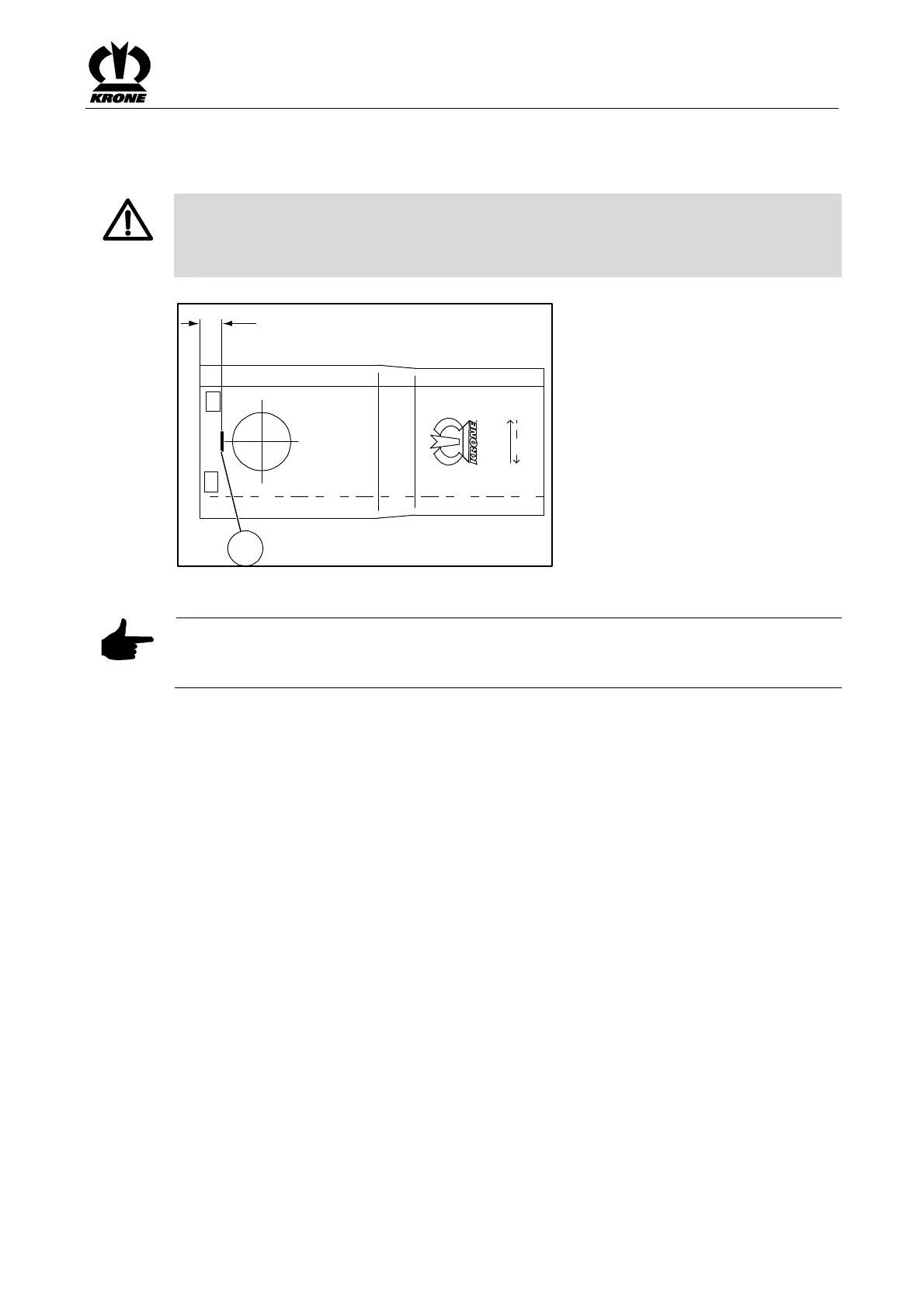

• The cutter blades must be replaced at the latest when the wear limit is reached (see
mark (1) on the cutter blade; dimension a less than or equal to 7 mm).
Pos: 24.33.8 /B A/Wartung/Mäh werke/Mähklingen beidseitig verwe nbar_neu @ 3\m od_120472801 2601_78.docx @ 72608 @ 2 @ 1
a
EC 253 0
1
Fig. 29
Note - The cutter blades can be turned around and used on both sides.
• When cutter blades are missing or damaged, they must be replaced as a complete set.
This prevents dangerous unbalanced rotation
