6.4 Install the PTO shaft
Pos: 16.29 /BA/I nbetriebnahme/ EasyCut/Anbau Gelenkwelle/Anb au Gelenkwelle EC 320 -1 @ 58\mod_ 1296658917612_7 8.docx @ 552 853 @ @ 1
EC-331-0
1
2
Fig. 8
Pos: 16.30 /BA/I nbetriebnahme/ EasyCut/Anbau Gelenkwelle/Anb au Gelenkwelle gez ogene/angehäng te EasyCuts @ 9\mod_12208748 76438_78.doc x@ 128292 @ @ 1

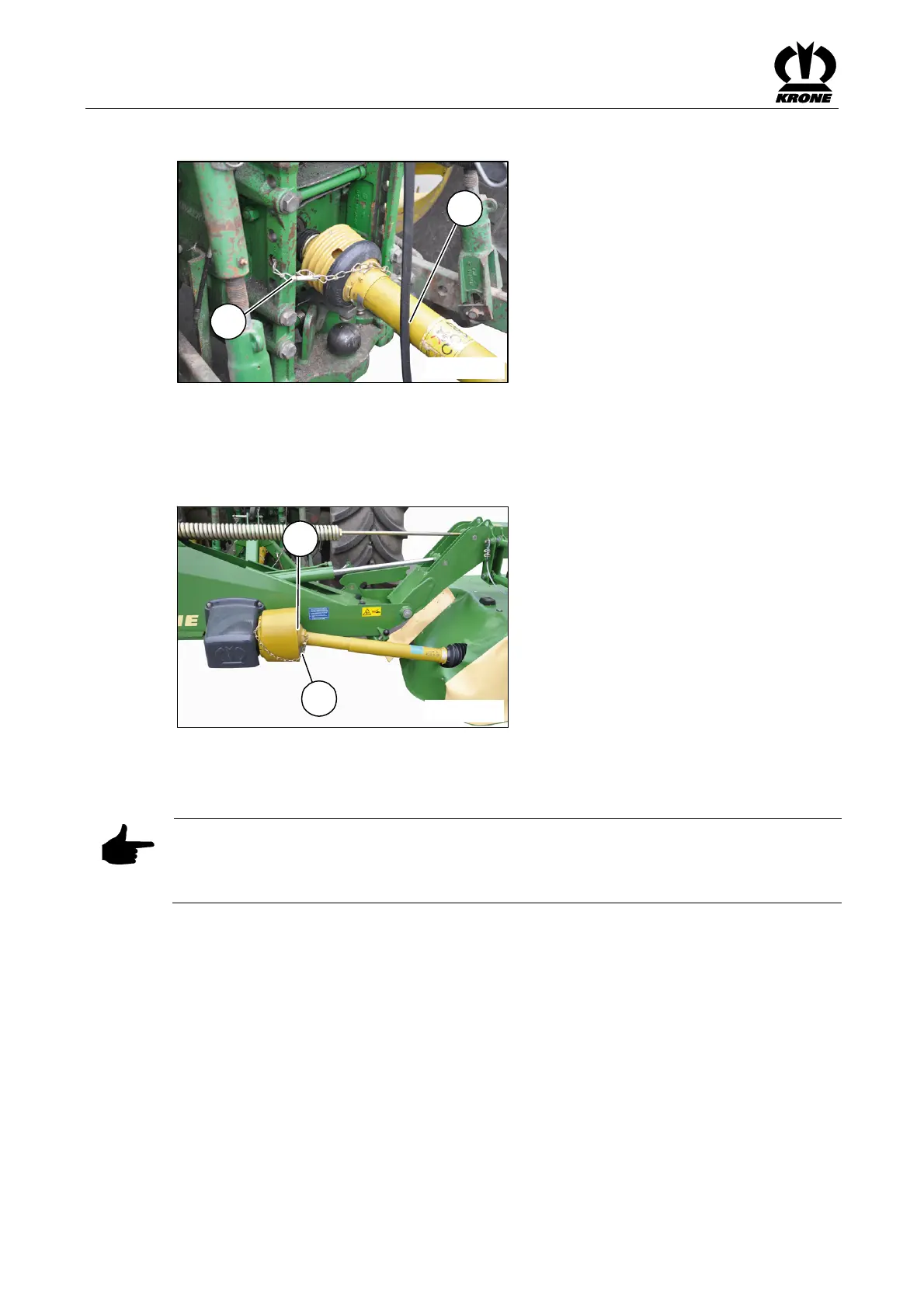

• Slide the PTO shaft (1) onto the PTO end of the tractor and secure it.
• Secure the PTO shaft guard against turning with the retaining chain (2).
Pos: 16.31 /Übersc hriften/Überschrif ten 2/U-Z/Zwi schengelen kwelle @ 3\mod_ 12047022410 39_78.docx @ 71 481 @ 2222 @ 1
6.5 Intermediate PTO shaft
Pos: 16.32 /BA/I nbetriebnahme/ EasyCut/Anbau Gelenkwelle/Zwisc hengelenkwell eZwischengelenkw elle Bild EC 320N eue Generatio n@ 78\mod_131 4263618497_ 78.docx @ 6958 80 @ @ 1
EC-386-0
2
3
Fig. 9
Pos: 16.33 /BA/I nbetriebnahme/ EasyCut/Anbau Gelenkwelle/Zwisc hengelenkwell eZwischengelenkw elle ohne Freil auf Text EC 2 80 R/320 R @ 78\mod_1314262 196417_78.docx @ 695821 @ @ 1
The intermediate PTO shaft for the mowing unit drive is coupled to the gearbox of the three-
point block via the friction clutch (2). Fasten the retaining chain (3) to the mower.
Pos: 16.34 /BA/I nbetriebnahme/ EasyCut/Hinweis R eibkupplung @ 11\mod_12233 58975938_78.d ocx @ 145593 @ @ 1
Note - Friction Clutch
Effect: Conserve functionality and increased service life
• The friction clutch (2) must be vented prior to commissioning and once a year prior to
harvesting. (See section Before new season "Friction clutch")
